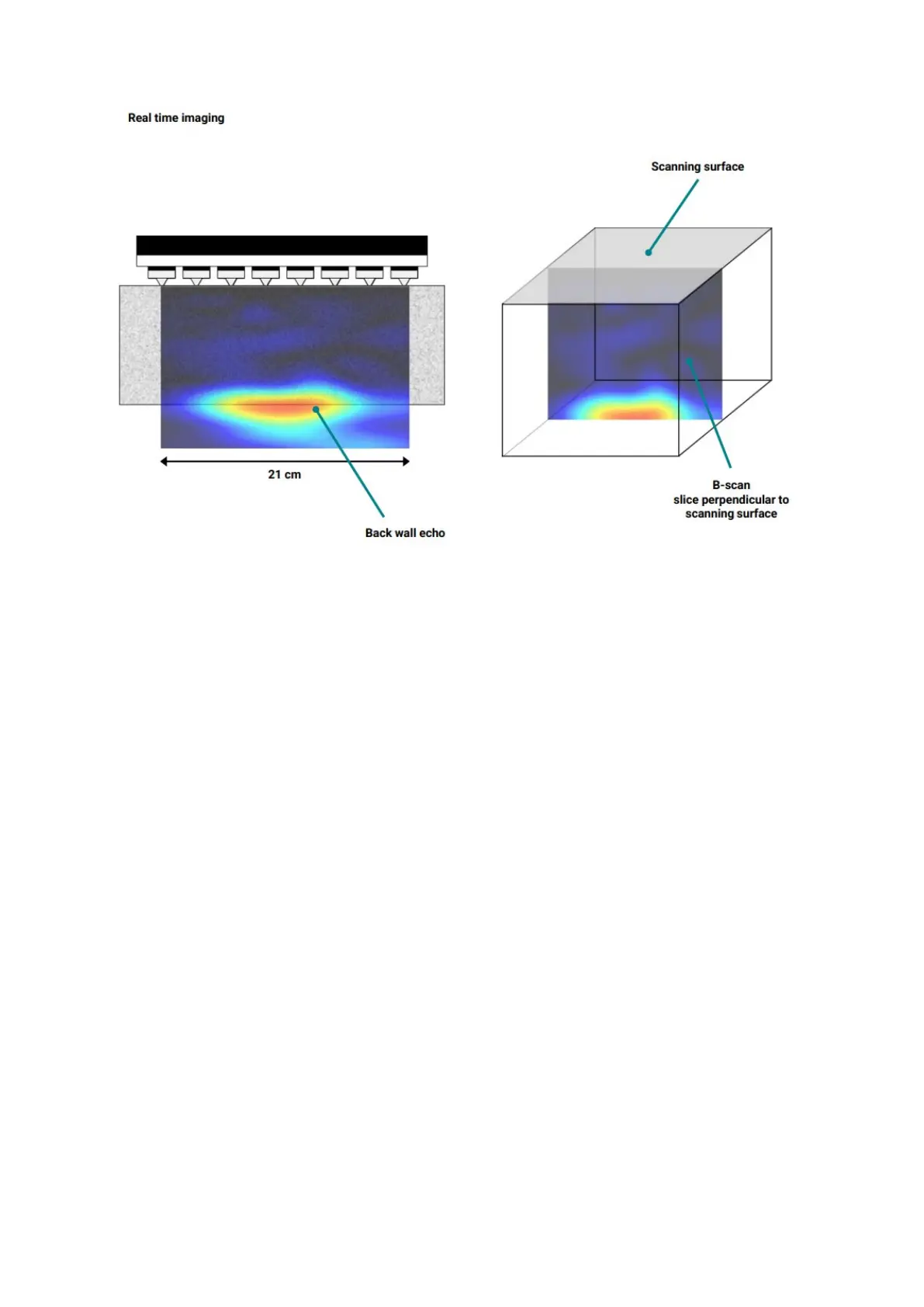

Figure 7: B-scan.
In the dual-device configuration (16 channels), a similar acquisition scheme is used:
1st transmission: channel 1 transmits, channels 2 to 16 receive (16 A-scans recorded),
...
15th transmission: channel 15 transmits, channel 16 receives.
Total: 120 A-scans are recorded.
Remark: doubling the number of channels (8 to 16) multiplies by more than 4 the number of
A-scans recorded. This leads to much superior imaging in dual-device configuration.
