8 Data storage, reading, sharing & reporting
The Pundit Array app enables the visualization of A-scans, B-scans, C-scans, 3D full matrix
scans and grid scan views, statistics, and heat maps. In addition, there is a logbook providing
traceability of each measurement: time, operator, position and instrument information, pictures
(with iPad camera), and written or oral notes.
Given mobile data connectivity (Wi-Fi or mobile network), the Pundit Array app automatically
and safely stores all measurements on the Screening Eagle Workspace by synchronizing with
the cloud. Reporting is done from the Screening Eagle Workspace.
Reading, sharing & reporting (pdf printing of tab) is possible.

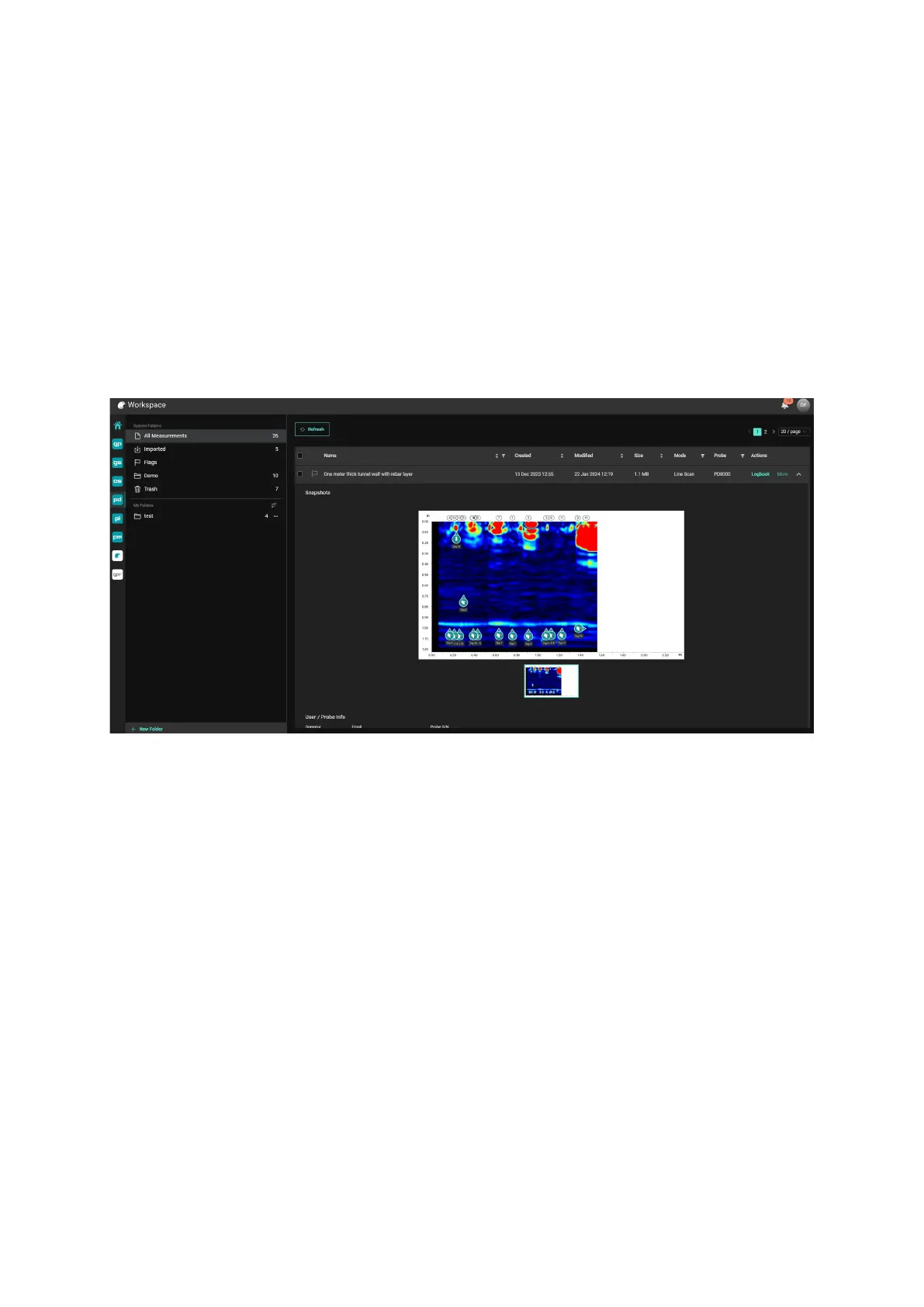

Figure 90: Screening Eagle Workspace.
