5.20 AI positioning
PD8050 comes with a built-in camera and an AI feature that enables it to read a measuring
tape and automatically place the scans in the right location. To do so, you just need to enable
the AI feature.
Detects and positions the B-scan automatically.
Applicable to both Line Scan and 3D matrix scan.
Metric or imperial units.
Line scans – up to 10 tapes can be used in series for longer scans up to 15 m.

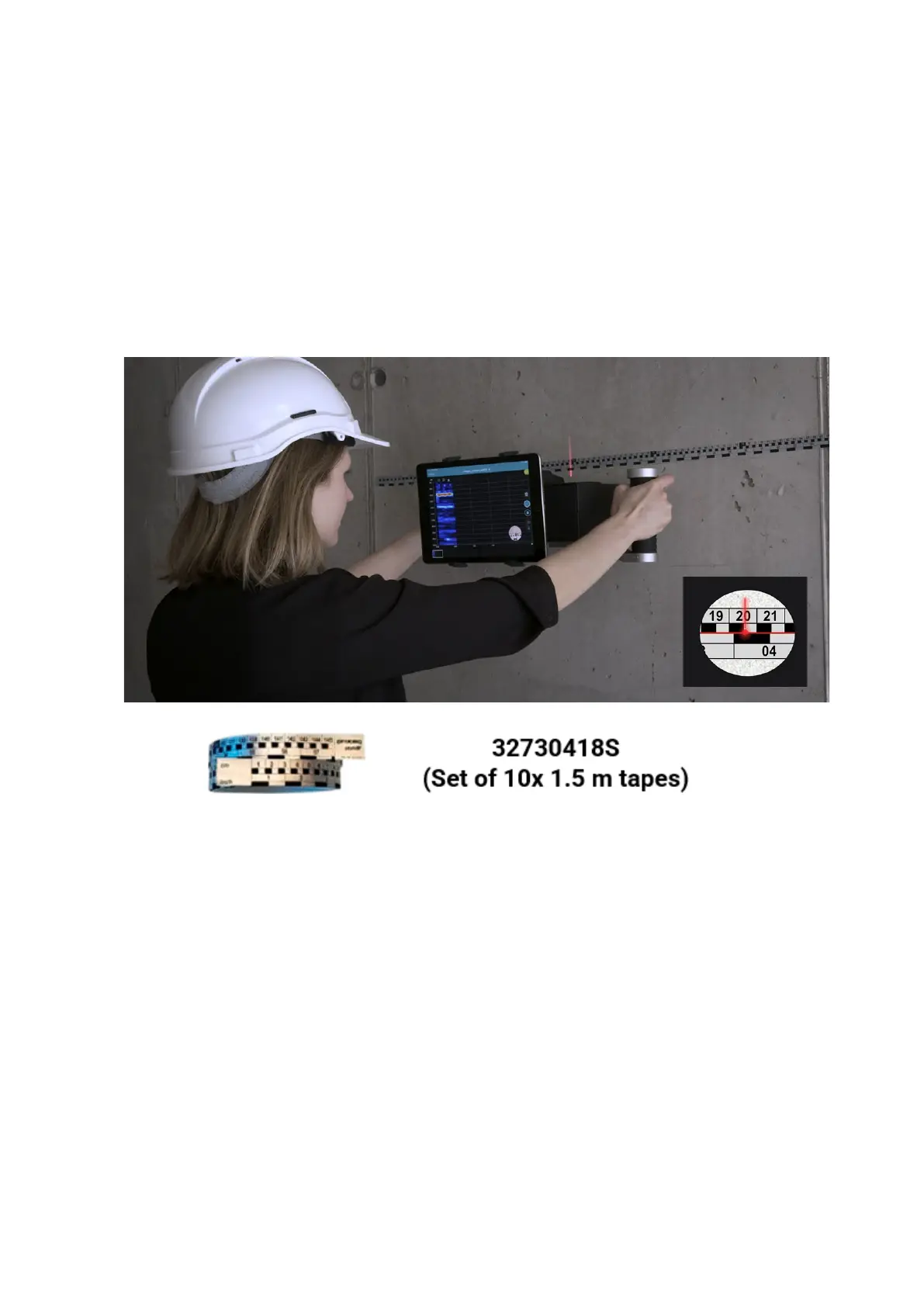

Figure 77: AI positioning and measuring tape.
Faster scans as there is no need to carefully align the channels for correct
overlap.
More accurate scans as positioning is precise.
Each image is correctly positioned.
For more detailed information about the use of this feature, please visit the relevant tutorial
video which is available in the Pundit Array app.
