26. February 2024 © Copyright 2024, PROCEQ SA 31

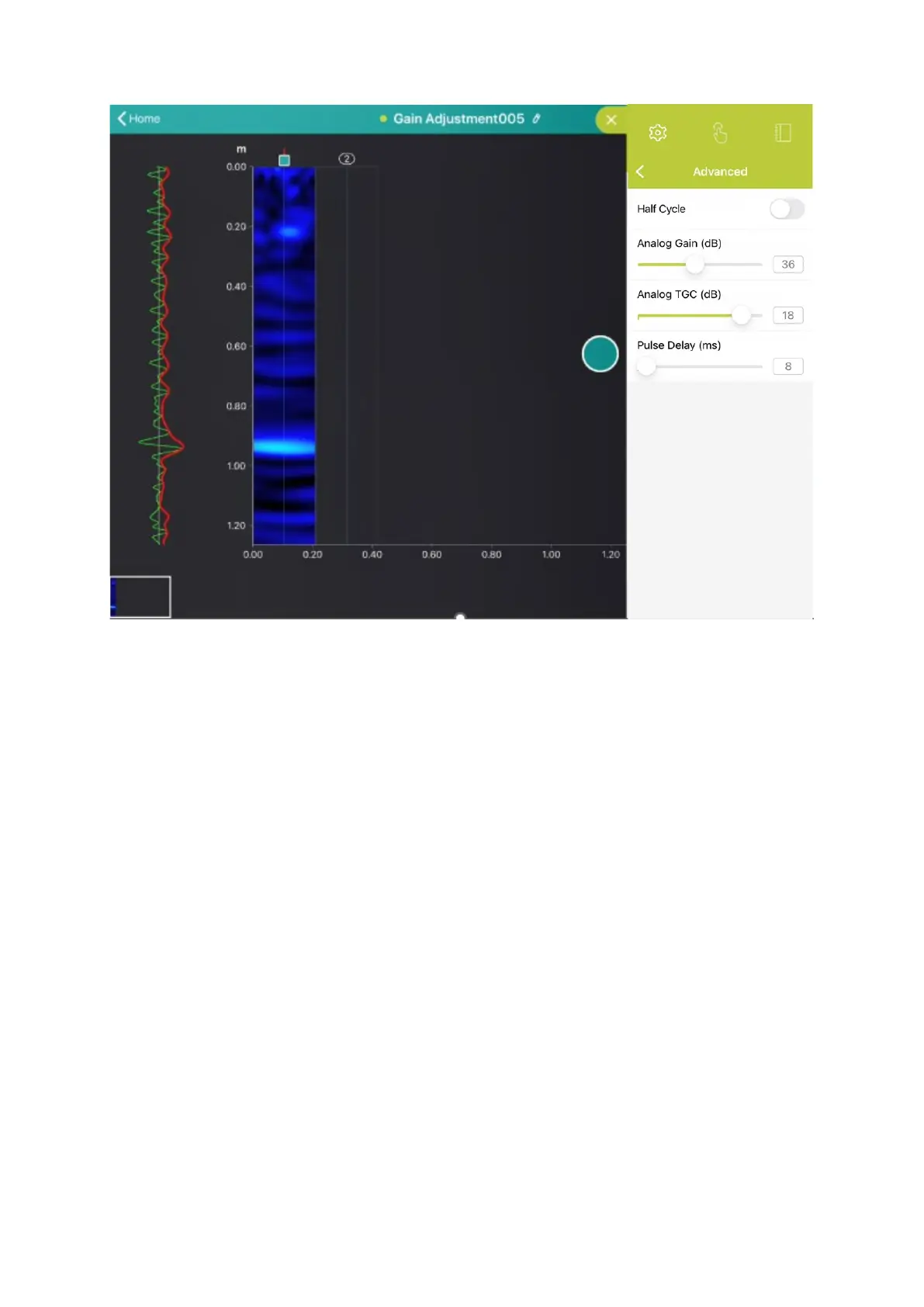

Figure 26: Increase TGC to see better the deep objects.
5.6 Digital gain and Digital Time Gain Compensation (TGC)
Digital gain and Time Gain Compensation are used to optimize the images similarly to the
preset functions (analog filters), but this operation can be carried out at any time during a scan.
The digital gain adjusts the entire signal equally. The TGC is used to amplify deep objects.
These filters can be modified using the sliders on the Pundit Array app or using the buttons on
the sensor handles.
