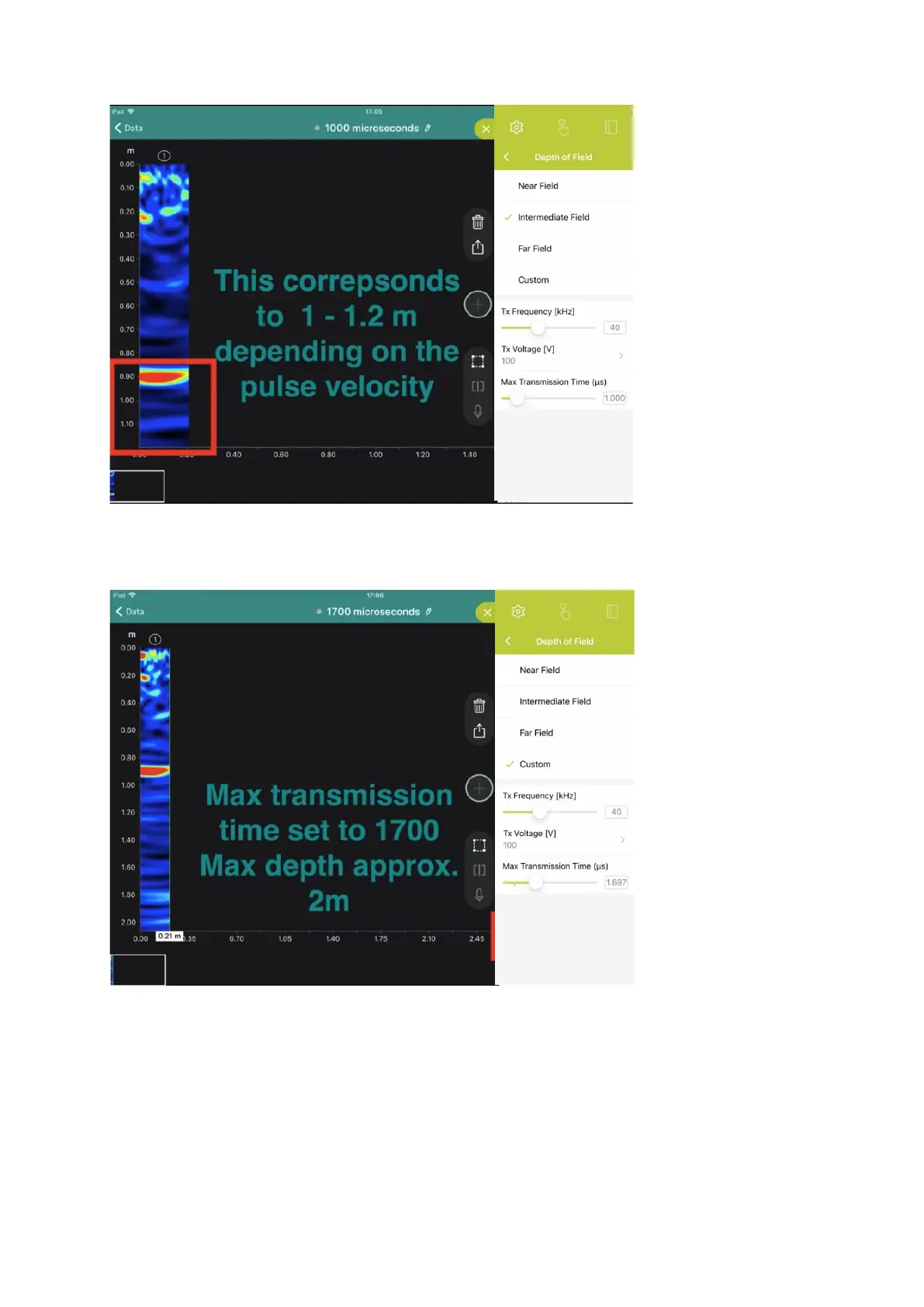

Figure 30: Default transmission time.
This value can be increased for testing deeper structures.
Figure 31: Modified transmission time.
For very deep objects, the 16-channel model is recommended.
The maximum transmission time is 2’500 microseconds. The maximum depth will be around
3m.
On the other side, this value can also be reduced for shallower objects. It reduces irrelevant
data. This is particularly useful for 3D full matrix scans of shallow objects.
