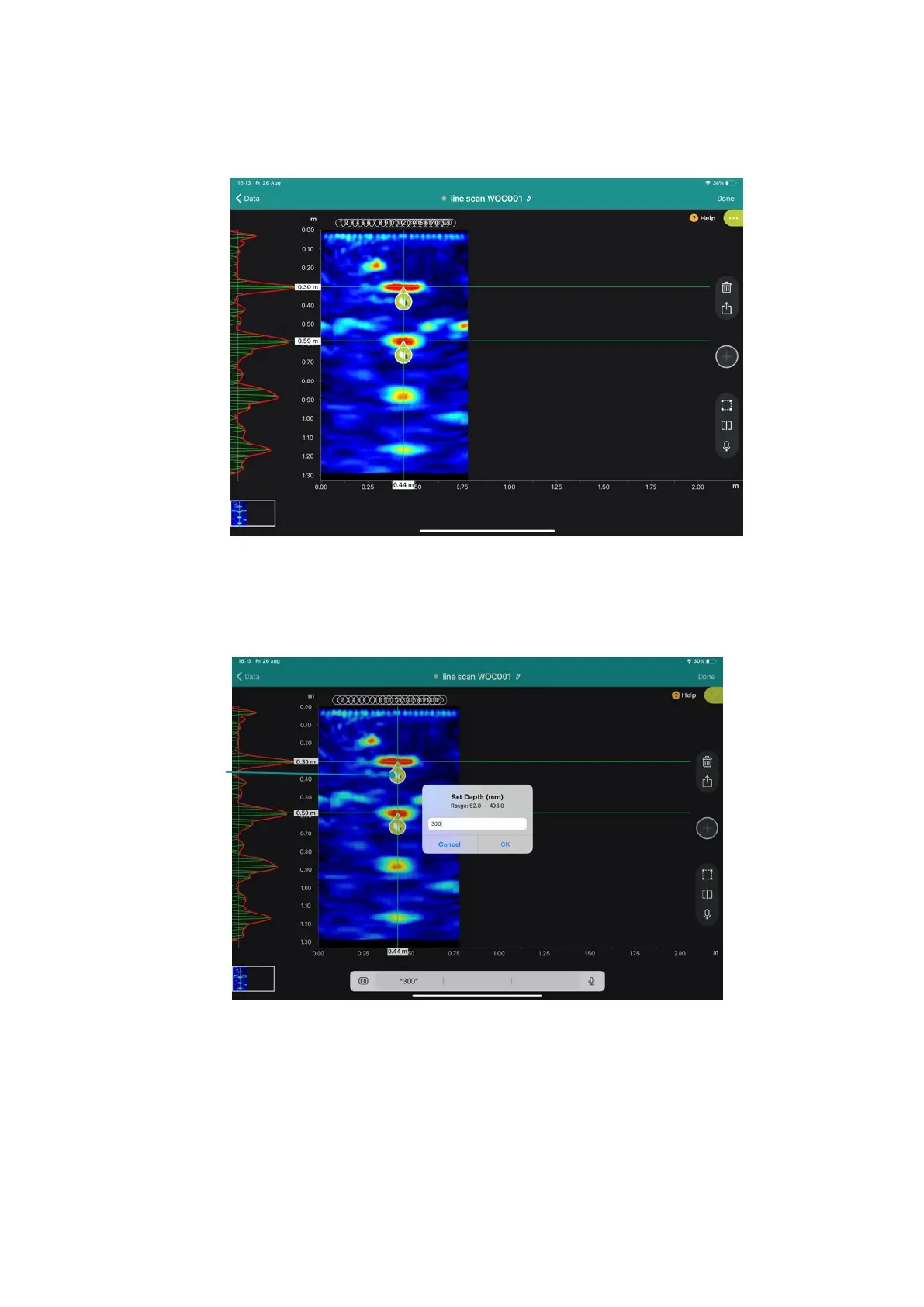

 Use A-scan to align tags to the peaks of the 1st and 2nd backwall echoes.
Figure 37: Case A – 1
st
and 2
nd
backwalls are visible.
 Tap on 1st tag and 2nd tag to enter the known depth of the test object, then
click “Done”:
Figure 38: Case A – 1
st
and 2
nd
backwalls are visible.
