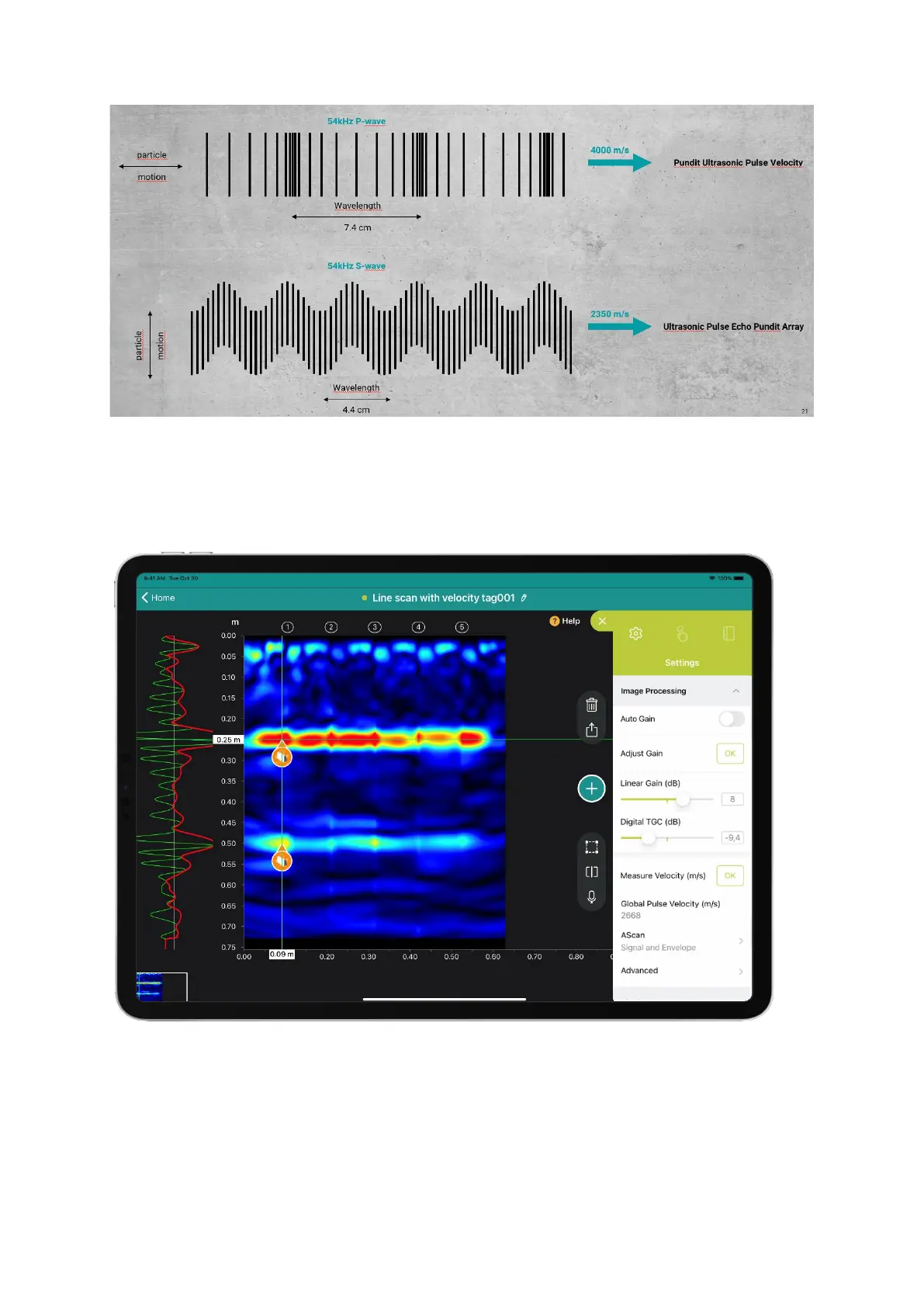

Figure 44: P-waves vs S-waves.
For pulse echo instruments to create images using Synthetic Aperture Focusing Technique
(SAFT), it is needed to use a global pulse velocity, which is set using one of the methods
described in the previous chapter.
Figure 45: Global Pulse Velocity.
