The tag information shows the measured transmission time, the local S-wave
velocity, an estimated P-wave velocity, and the local depth.
On creation of the tag, the local depth is simply calculated from the global pulse
velocity.
Tap on it and set the known depth (in this example 250 mm) to determine the
local S-wave velocity.

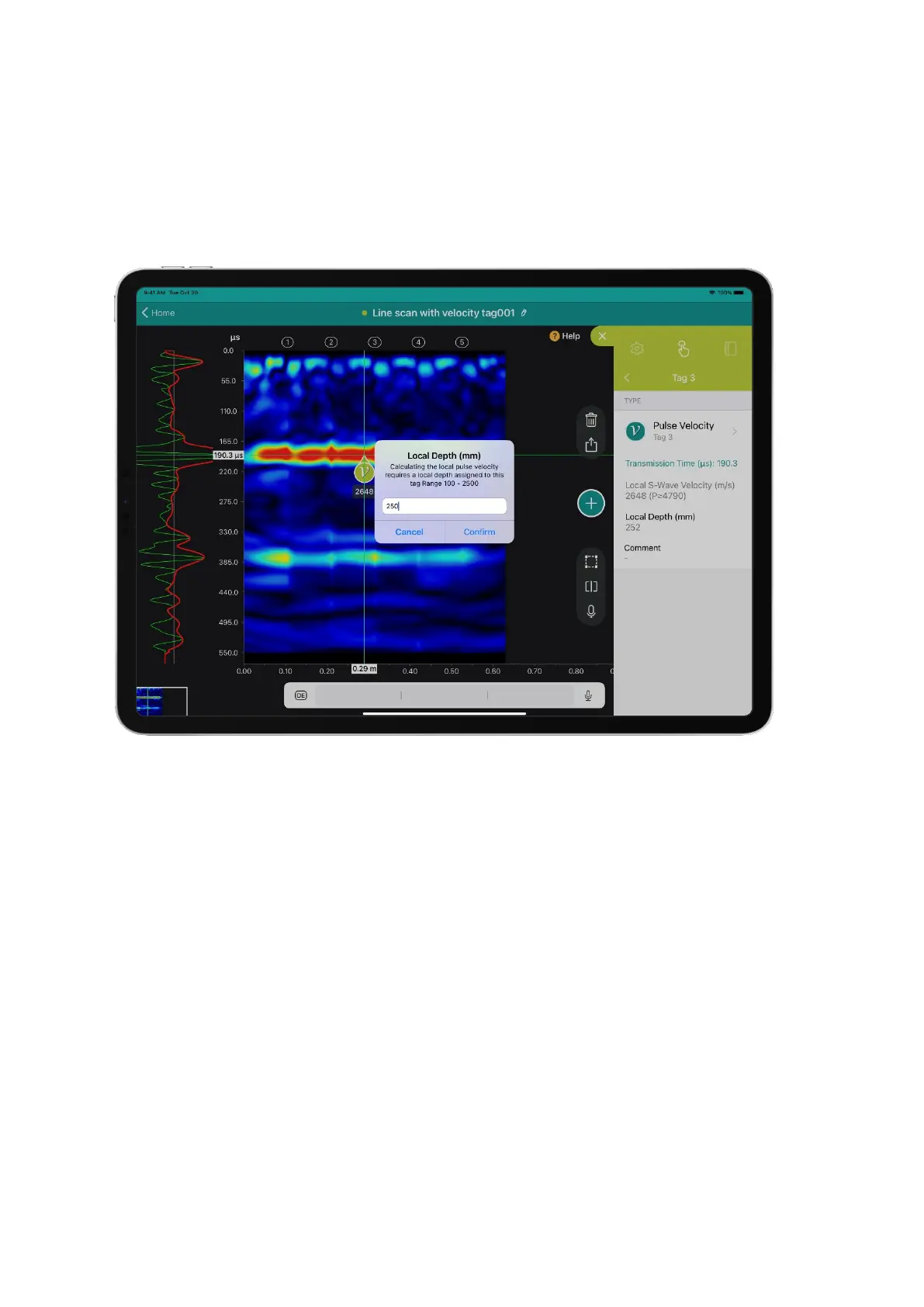

Figure 47: The velocity tag.
