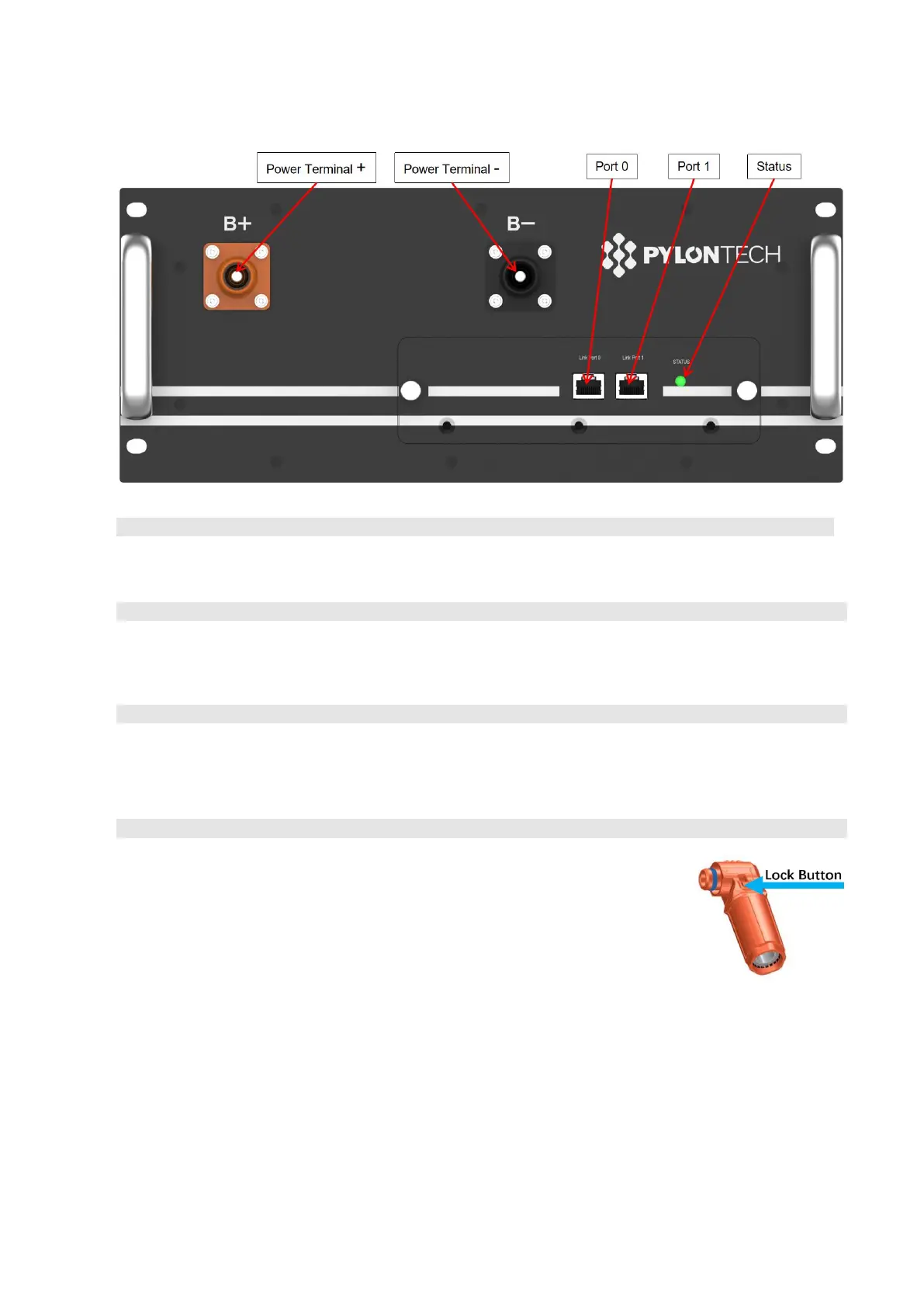

Battery Module (H32148-C) Front Interface
Power Terminal +/-
To connect battery series power cables.
Status
Status light: to show the battery module’s status (Normal●, Abnormal●).
Link Port 0, 1
Link Port 0, 1 Communication Terminal: (RJ45 port), CAN communication, between multiple
serial battery modules and control module.
Power Terminals
Power cable terminals: there are two pair of terminals with same function,
one connect to equipment, the other one paralleling to other battery
module for capacity expanding. For each single module, each terminal
can achieve charging and discharging function.
For power cables uses water-proofed connectors. It must keep pressing
this Lock Button during pulling out the power plug.
