Pylontech PowerCube-M1-C - 2.3.3 BMS;Module Diagram (External Power); 2.3.4 BMS;Module Diagram (Internal Power)

Pylontech PowerCube-M1-C
68 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
20

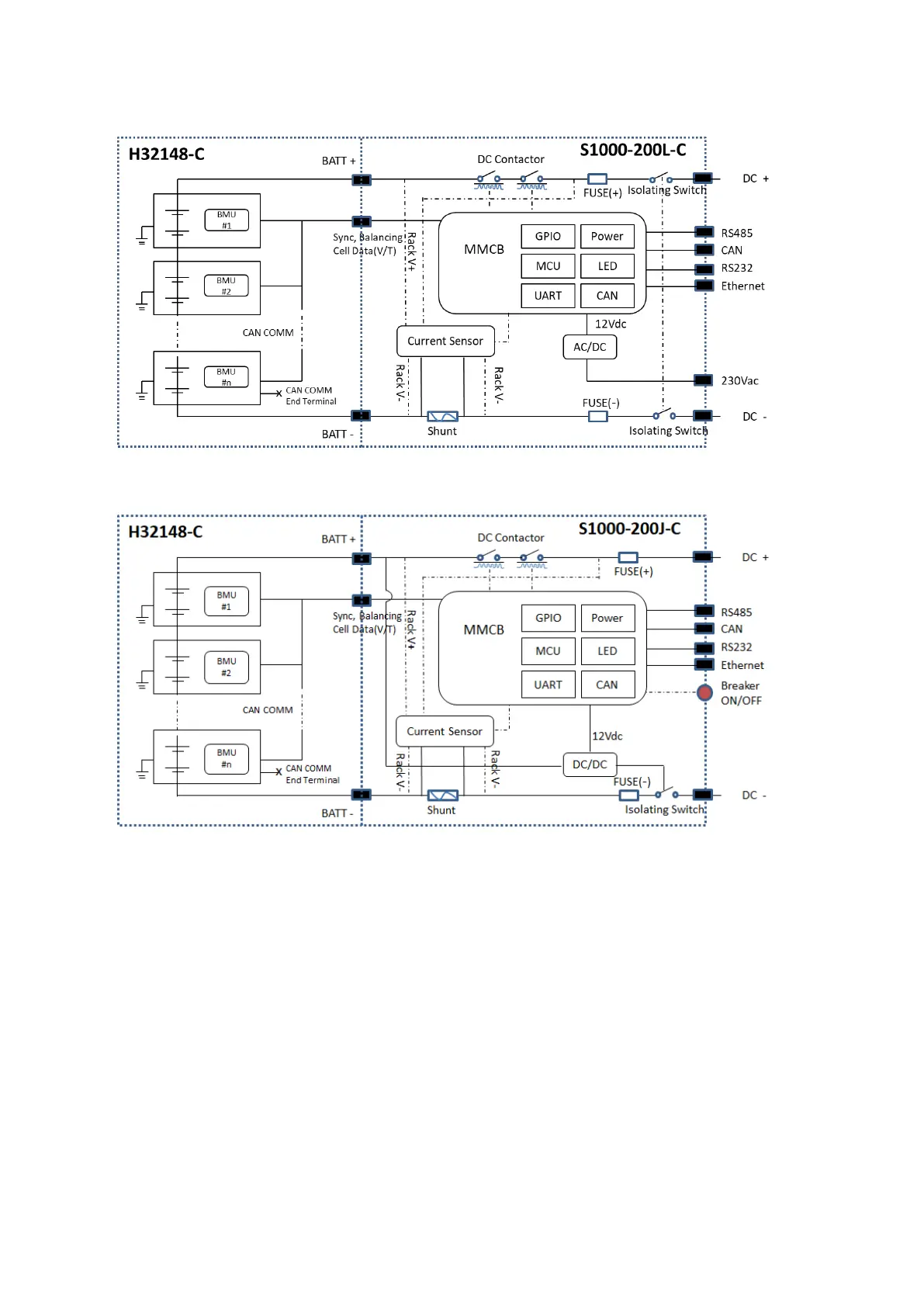

2.3.3 Diagram between BMS and battery modules(external power supply):
2.3.4 Diagram between BMS and battery modules(internal power supply):
