The PowerCube-M1-C modules’ grounding is based on metal directly touch
between the module’s surface and rack’s surface. So it needn’t grounding cables
at all. If uses normal rack, remove the paint at the corresponding place.
La mise à la terre des modules PowerCube-M1-C repose sur le contact direct des
métaux entre la surface de module et celle du rack. Il n’est donc pas nécessaire
de mettre les câbles à la terre. Si vous utilisez un rack normal, il est possible
d’enlever la peinture aux positions correspondantes.
Rack Grounding:

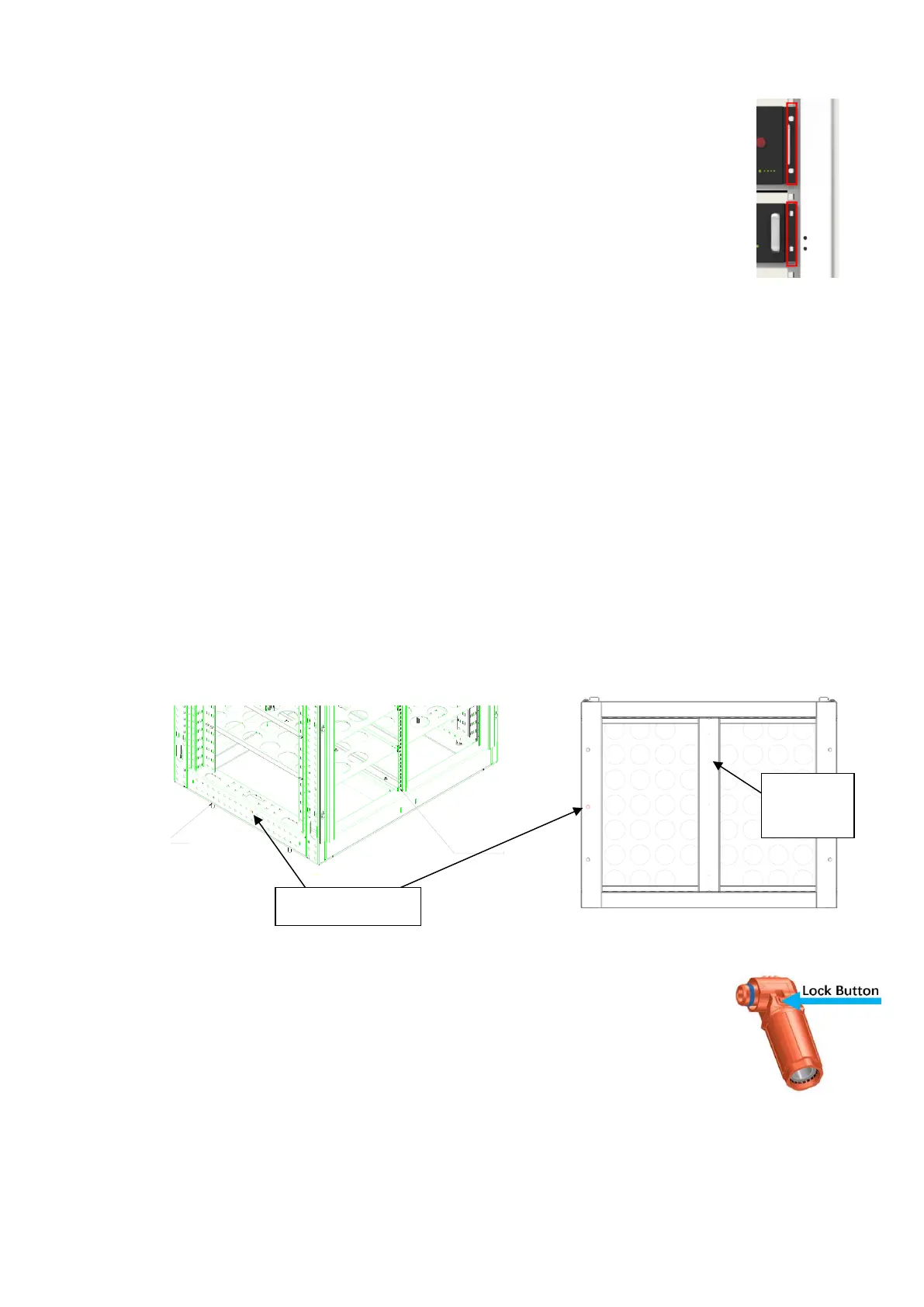

If there is a grounding metal frame outside the rack, for example, the metal angle steel frame at
the bottom of the container, the fix hole of the fix frame can be fixed directly with the metal
frame of the container. Then through the grounding of the container to ensure reliable
grounding.
The cable shall be copper with yellow-green color.
The ground cable can also be connected from the M8 grounding bolt on the frame base.
Grounding cable must be ≥6AWG.
3.6.2 Cables Connection
Note: Power cable uses water-proofed connectors. It must keep pressing this
Lock Button during pulling out the power plug.
