Pylontech PowerCube-M1-C User Manual

19
Other Fault
Off
light
Off
Off
Off
Off
g, STATUS(red)
lighting
STL Fault
Off
flash 2
flash 2
MCU self-check
problem
Note: The flashing instructions, flash 2 - 0.5s light / 0.5s off; flash 4 - 1s light / 1s off .

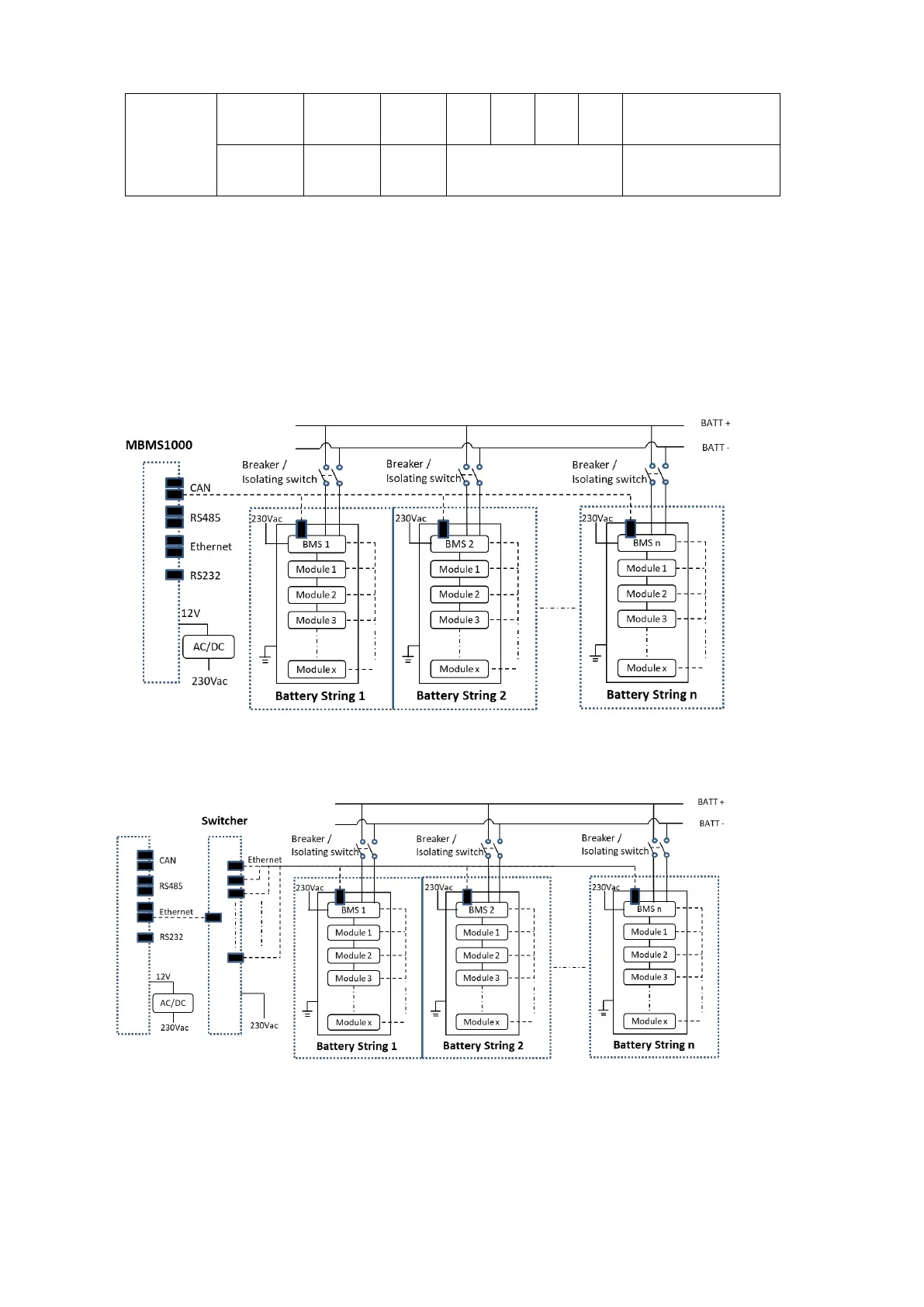

2.3 System Diagram
2.3.1 Multiple battery string parallel connection by CAN communication between MBMS and
BMS diagram (battery string qty. ≤6)
2.3.2 Multi battery string parallel connection by Ethernet communication between MBMS and
BMS diagram (battery string qty. ≤32 set)

Pylontech PowerCube-M1-C Specifications

General

Brand	Pylontech
Model	PowerCube-M1-C
Category	Storage
Language	English
