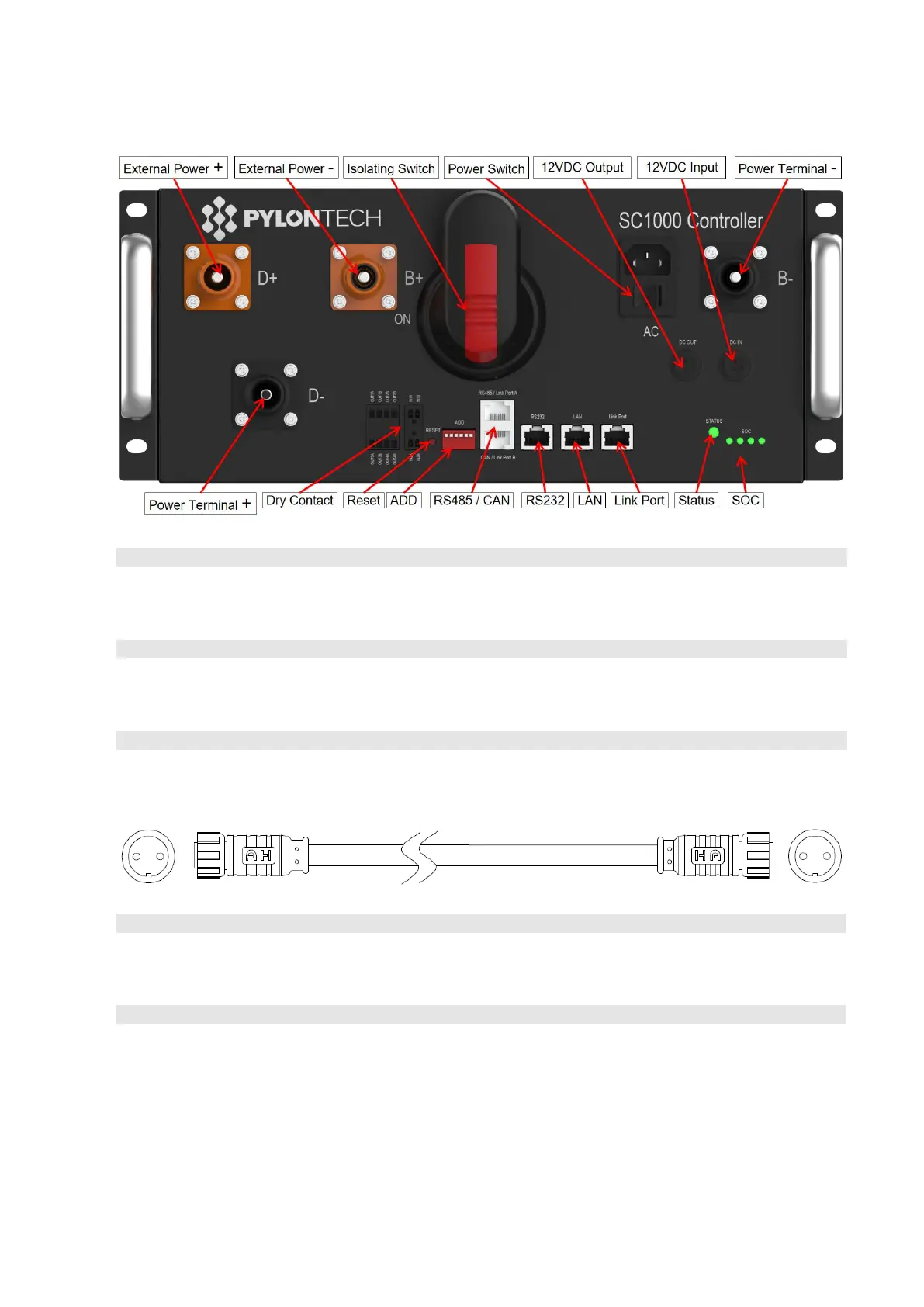

2.2.3.1Control Module (SC1000-200L-C External power supply) Front Interface
External Power Terminal D+/D-
Connect battery system with Inverter.
Power Terminal B+/B-
To connect battery power cables in series.
12VDC Output
OUT: Power supply for MBMS, to connect with MBMS’ 12VDC IN.
12VDC Input
In: Back-up 12VDC power supply port.
AC Input for BMS power supply
AC Socket and Control Module Power Switch: External power supply for Control Module, has
an Australia or Europe or USA standard AC Power input socket. Power Switch to control ON/OFF.
Applied with UPS system.
