Page: 41

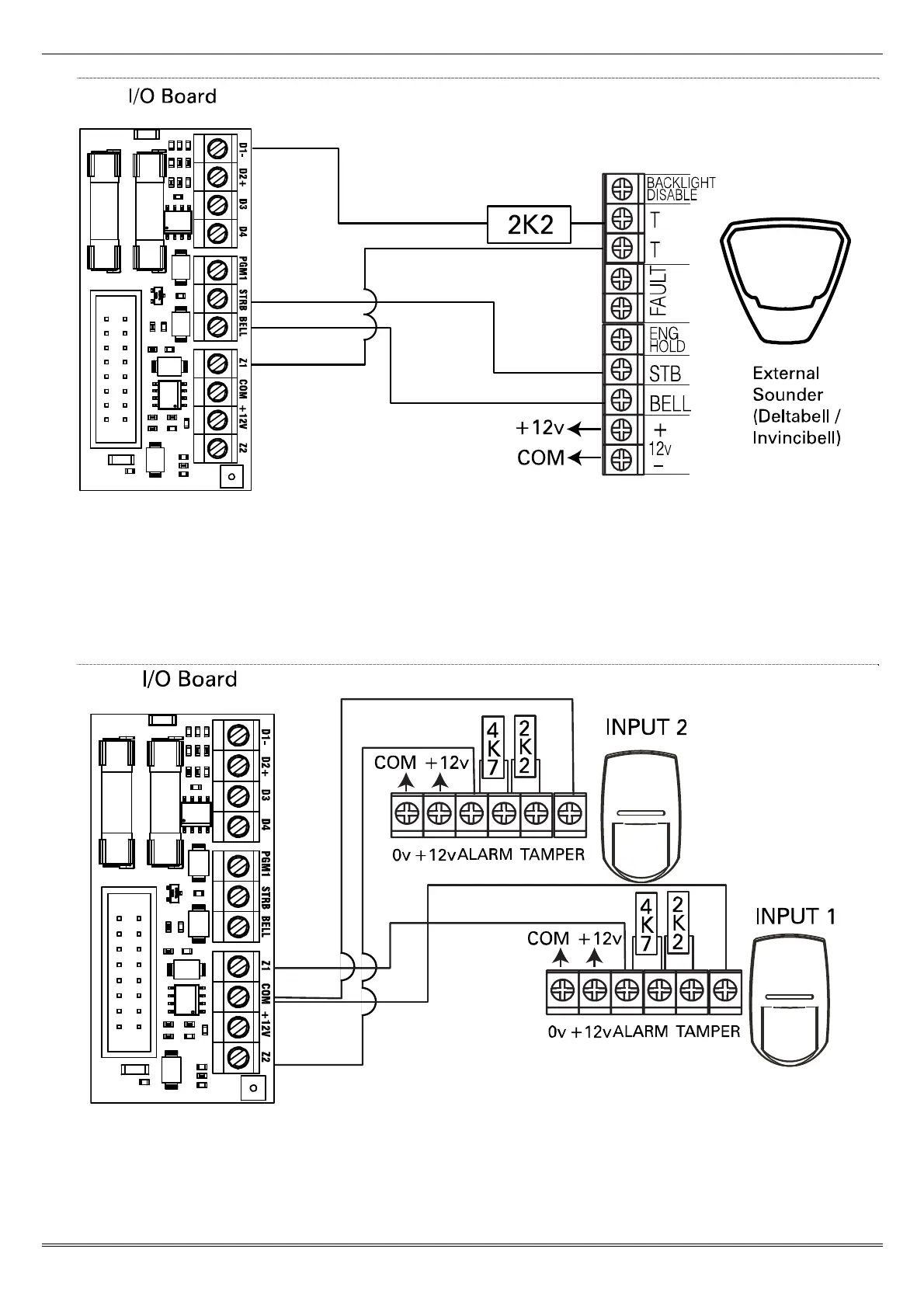

6.8.4 Wiring a Wired External Sounder
To create the bell tamper circuit, a resistor is required across 0V supply and tamper circuit of the
bell box. Note that the input must be programmed as ‘tamper’.
The resistor value will correspond to the value selected in ‘WIRING CHOICE’.
IMPORTANT: THE BELL BOX CONNECTED WILL NEED TO BE IN SCB MODE. Unless the bell box
is a Pyronix Deltabell.
6.8.5 Wiring Wired Inputs
The End of Line value for all wired inputs is programmed in ‘PROGRAM EOL. At default they are
set to DEOL and the resistor values are 4K7 for Alarm and 2k2 for tamper.
