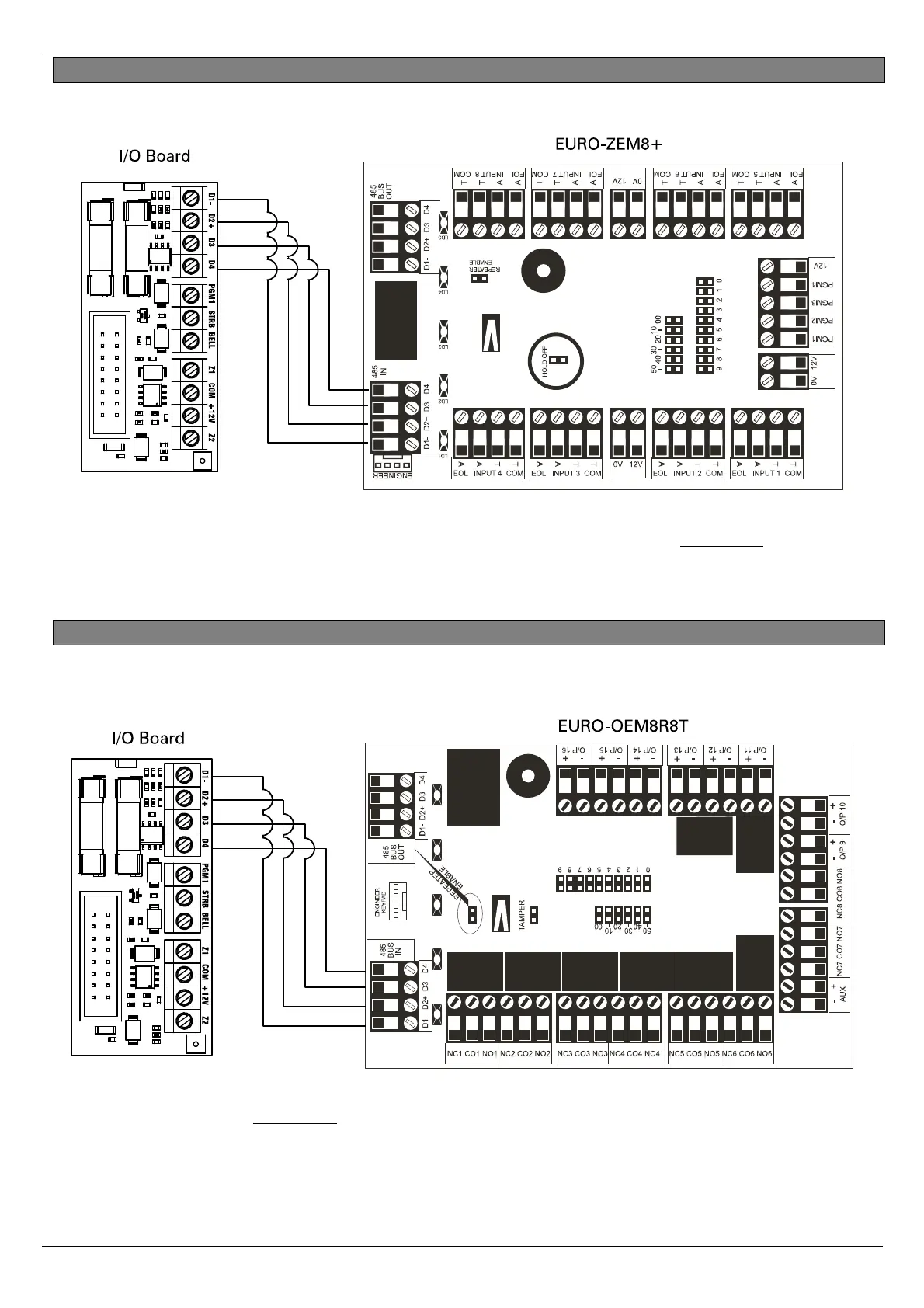

6.9 Connecting an Input Expander
Up to 4 x Remote Input Expanders can be connected to the Enforcer 32-WE.
NOTE: The above shows the I/O board connected to a EURO-ZEM8+, the connections for a EURO-
ZEM8 are done in the same way. NOTE: If using a EURO-ZEM8+PSU, the D2+ MUST NOT be
connected.
ZEM Address 0 (Inputs 35-42), ZEM Address 1 (Inputs 43-50),
ZEM Address 2 (Inputs 51-58), ZEM Address 3 (Inputs 59-66).
6.10 Connecting an Output Expander
1 x Remote Output Expander can be connected to the Enforcer 32-WE. Each output expander allows
16 additional outputs.
NOTE: The above shows the I/O board connected to a EURO-OEM8R8T. If using a EURO-
OEM16R+PSU, the D2+ MUST NOT be connected.
