Matrix 6/816 Installation Manual
Page 6 RINS546-10

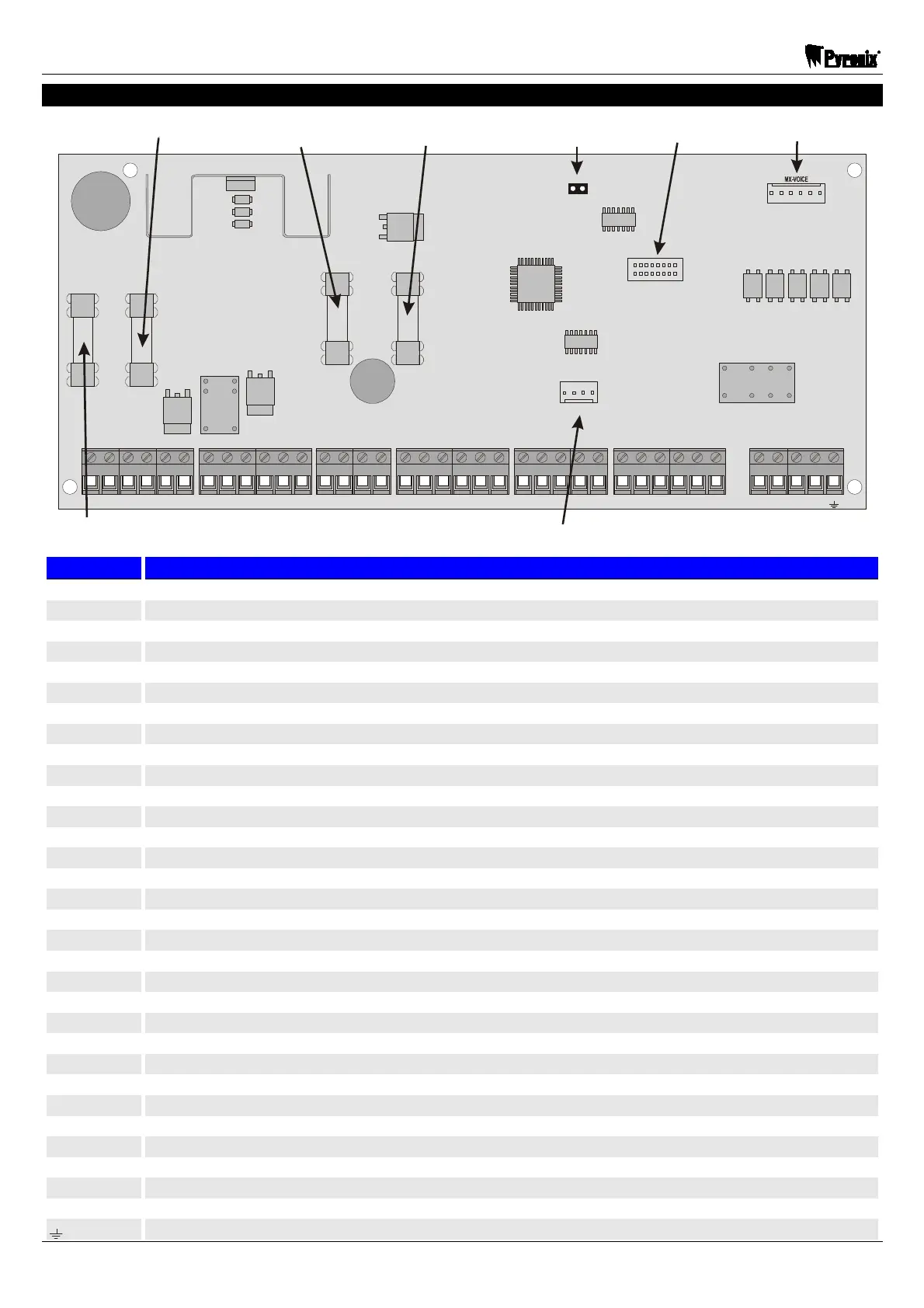

2.2 Matrix 816 PCB
17V~ + BAT – + SIREN – NC1 C1 NO1 PGM2 PGM3 PGM4 PGM5 PGM6 + AUX – K+ KD K– Z1 COM Z2 Z3 COM Z4 + AUX – Z5 COM
MATRIX
816
2 AMP AC FUSE
5 AMP BATTERY FUSE
1A AUX FUSE
1A KEYPAD FUSE
RS-232
NVM RESET
TIPRING R-1 T-1Z6 Z7 COM Z8
1A RKP Fuse
Supply Output “K+”
1A Auxilliary Fuse
Supply Output “+AUX-”
5A Battery Fuse
2A AC Fuse
Panel Configuration
Reset Link
Connector for
MX-IX16 Module
RS232 Port for Direct
Connection to PC
Connector for
MX-VOICE Module
– – – PGM1 – – –
Terminal Designation
17V ~ 17V AC supply input for transformer connection. Protected by 2 Amp “AC FUSE”
+BAT- 12V DC supply input for connection to the battery. Protected by 5A “BATTERY FUSE”
+SIREN Positive supply to Monitored Siren (PGM7). Protected by 1 Amp “AUX FUSE”
SIREN- Monitored Siren transistor switched output (PGM7).
NC1 PGM1 relay output. Normally closed contact.
С1 PGM1 relay output. Common contact.
NO1 PGM1 relay output. Normally open contact.
PGM2 PGM2 transistor output.
PGM3 PGM3 transistor output.
PGM4 PGM4 transistor output.
PGM5 PGM5 transistor output.
PGM6 PGM6 transistor output.
+AUX- Auxiliary supply output for detectors, keypad etc. Protected by 1 Amp “AUX FUSE”
K+, K– RKP supply output. Protected by a 1 Amp “KEYPAD FUSE”
KD RKP data line
Z1 Zone 1 input
COM Common input for zones (0V)
Z2 Zone 2 input
Z3 Zone 3 input
COM Common input for zones (0V)
Z4 Zone 4 input
Z5 Zone 5 input
COM Common input for zones (0V)
Z6 Zone 6 input
Z7 Zone 7 input
COM Common input for zones (0V)
Z8 Zone 8 input
RING Communicator input for connection to Analogue PSTN telephone line
TIP Communicator input for connection to Analogue PSTN telephone line
R-1 Telephone line output for connection to the other telephone equipment
T-1 Telephone line output for connection to the other telephone equipment
Earth terminal for lightning protection.
