Pyronix Matrix 6/816 Installation Manual

Matrix 6/816 Installation Manual
RINS546-10 Page 19
2.8 MX-VOICE Module
PROGRAMMING
Initial state: The MX-VOICE module should be connected to the panel or power supply unit.
1. SELECT VOICE MESSAGE NUMBER. Press the «MESSAGE NUMBER» key until the required number is
reached  …  (displayed on symbol LED). = Common Message.
2. RECORDING. Press the «PLAY/RECORD» key (recording will start when the voice message number will be
flashing) and hold it while speaking into the on-board microphone. Release the «PLAY/RECORD» key after
the message is finished. End of recording will be indicated as . The maximum length of one message is 8
seconds.
3. PLAYING A VOICE MESSAGE. Choose the required voice message by pressing the «MESSAGE NUMBER»
key until the required message number is displayed, and then press the «PLAY/RECORD» key once. The
voice message will be played via the on-board speaker.

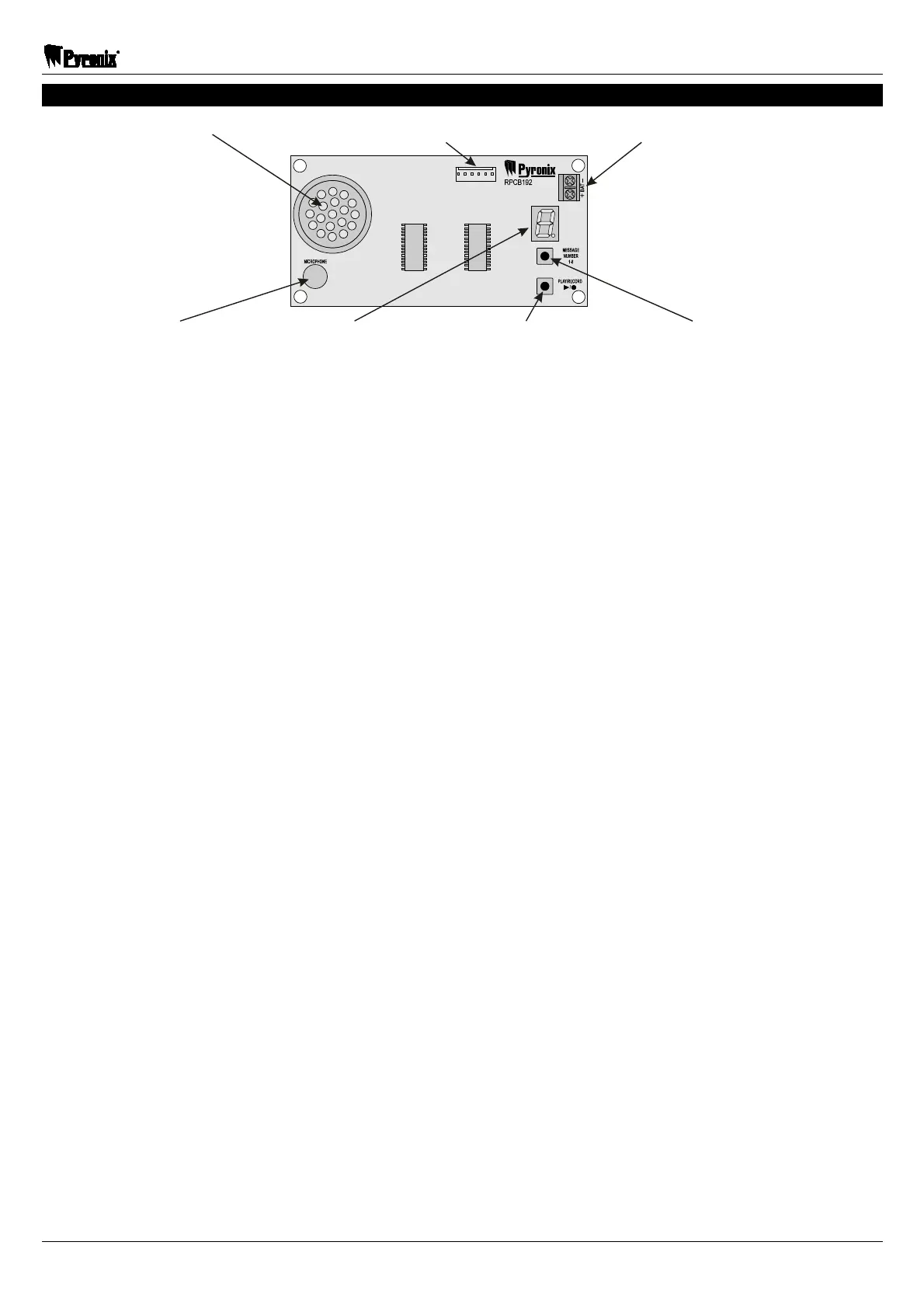

Speaker for playing recorded
messages
Connector to
MATRIX PCB
Supply input 9-12V for recording/playing
messages if disconnected from panel
Select message pin Microphone Play/Record pin
Message numbe
r
indicato
r
