Pyronix Matrix 6/816 Installation Manual

Matrix 6/816 Installation Manual
Page 24 RINS546-10

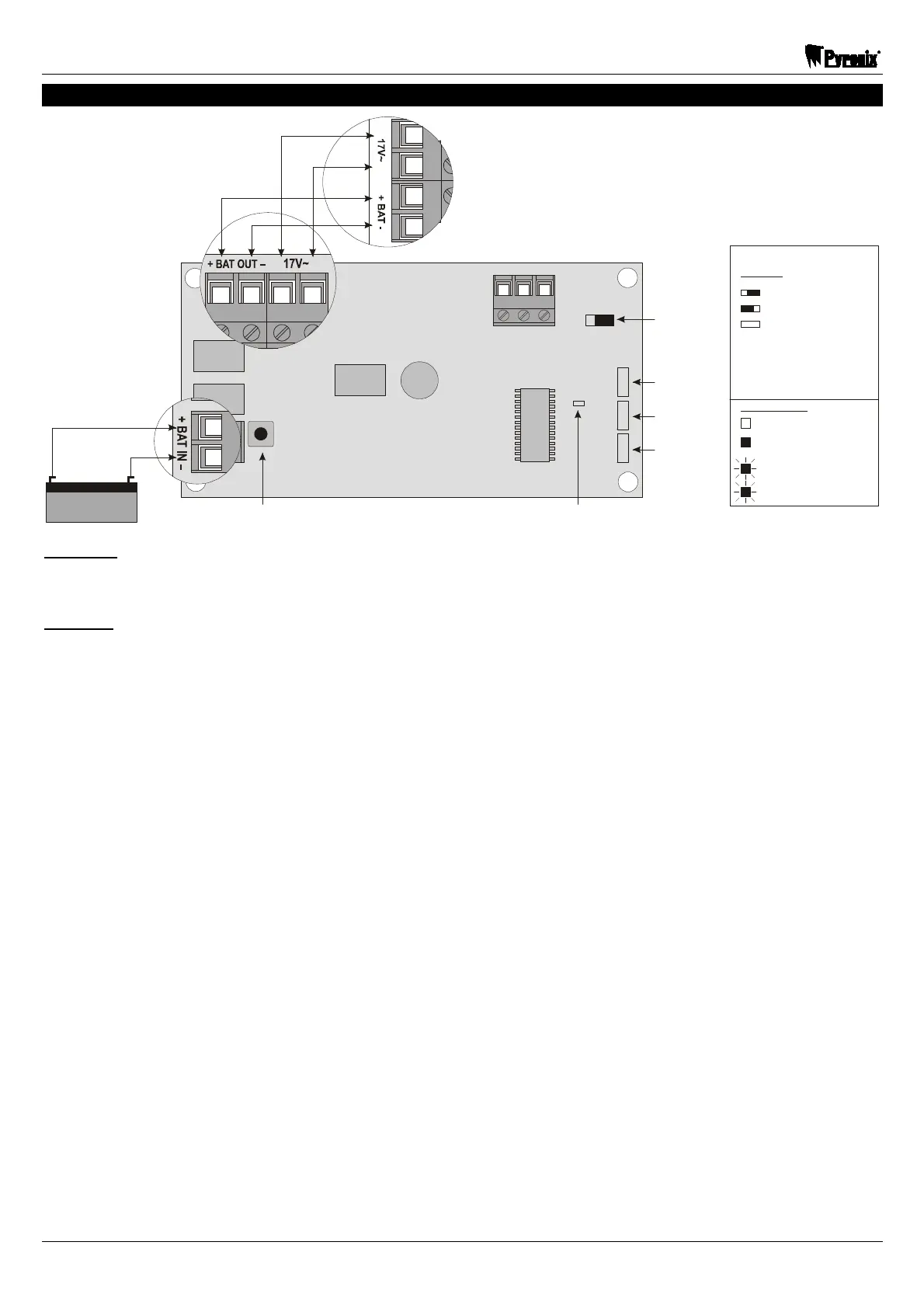

2.10 Battery Monitor Board Wiring
+B
A
TIN–
+ BAT OUT – 17V~ N C RT
+
-
J1 Header
LED
Reset
Button
17
V
~+ BAT -
Header A
Header B
Header C
Header Settings
Header J1
= Normally Closed
= End of Line
= Single End of Line
Header A = Enable Cut Off
Header B = Enable / Disable 24Hr
Header C = Spare
LED Indications
Off = Low Battery
On = Good Battery
10 Second Slow Flash
= Battery Test
No Mains Supply
NOTE 1: If the zone connection is used, adjust header J1 to the relevant zone setting, i.e.,
Normally Closed, End Of Line or Single End Of Line. The zone setting of the battery monitoring
board must be the same as that of the control panel.
NOTE 2: The RT input will initiate a remote test.
