Matrix 6/816 Installation Manual
RINS546-10 Page 15

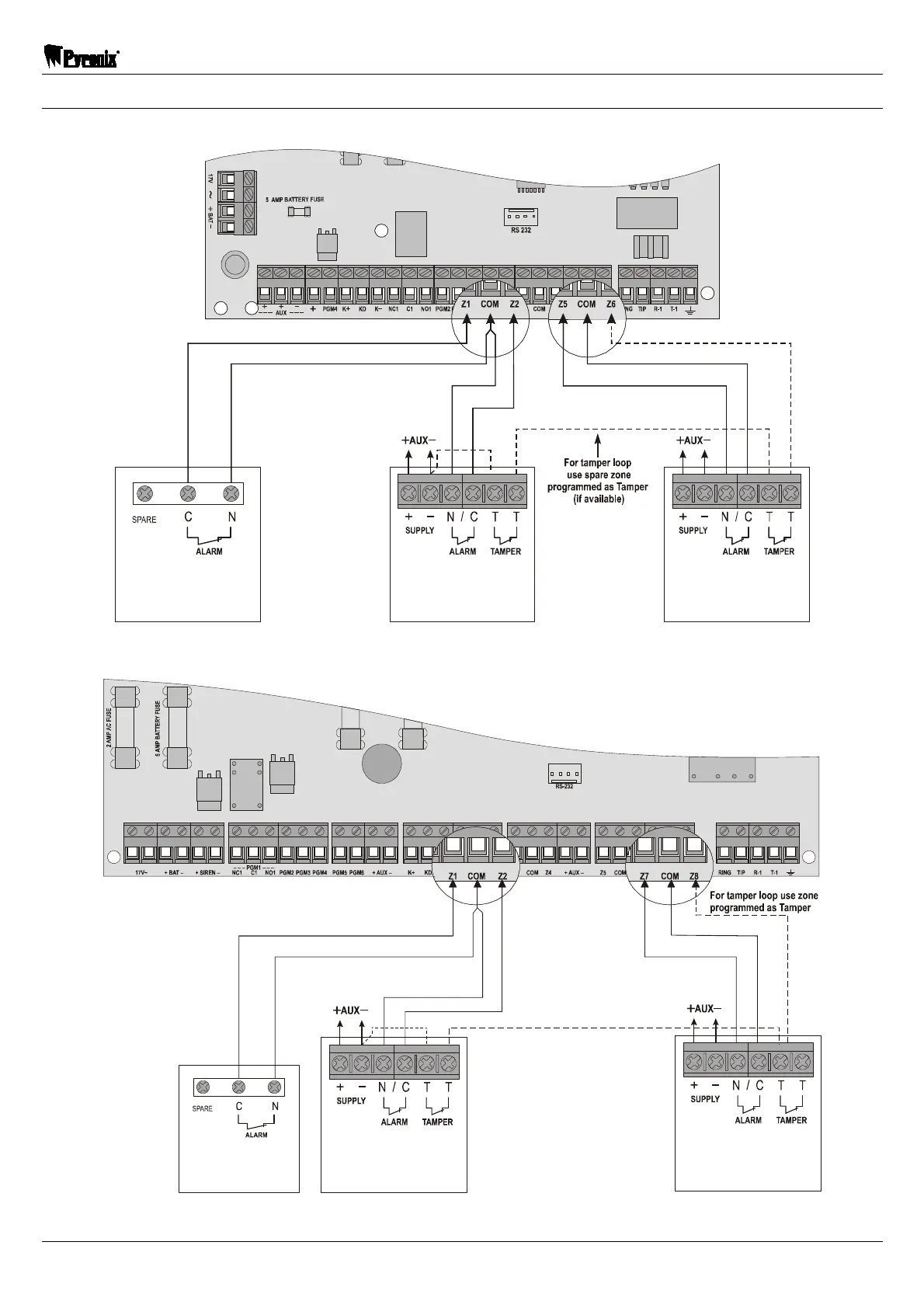

2.6.2 Normally Closed Wiring – Other Countries
Matrix 6
Zone 1 Zone 2 Zone 5
PIR
Detector
Magnetic Contact
PIR
Detector
Matrix 816
Zone 2
Zone 7
PIR
Detector
PIR
Detector
Zone 1
Magnetic Contact
