Matrix 6/816 Installation Manual
Page 14 RINS546-10

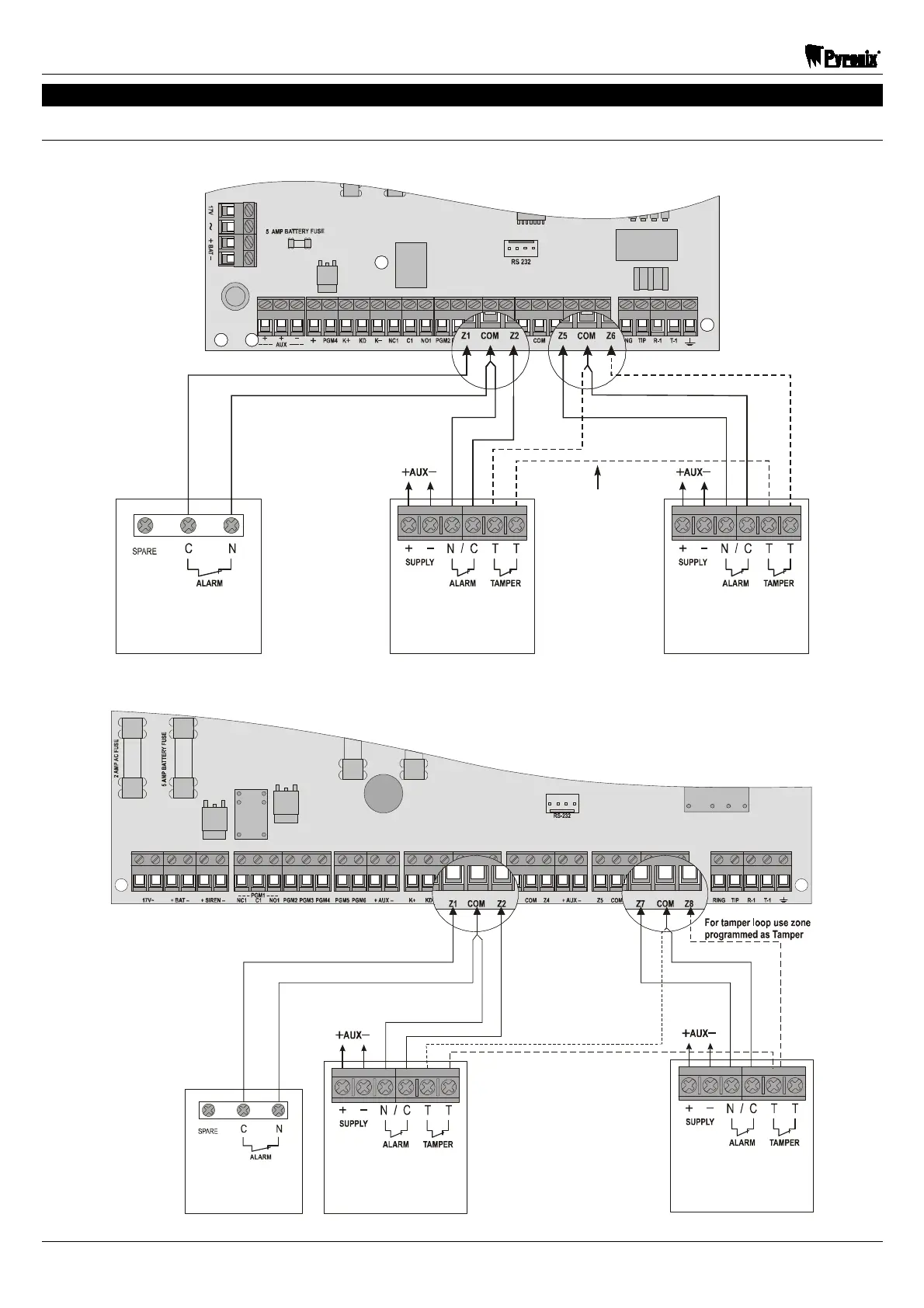

2.6 Zone Wiring
2.6.1 Normally Closed Wiring – South Africa
Matrix 6
Zone 1 Zone 2 Zone 5
PIR
Detector
Magnetic Contact
PIR
Detector
For tamper loop
use spare zone
programmed as Tamper
Matrix 816
Zone 2
Zone 7
PIR
Detector
PIR
Detector
Zone 1
Magnetic Contact
