Matrix 6/816 Installation Manual

RINS546-10 Page 21

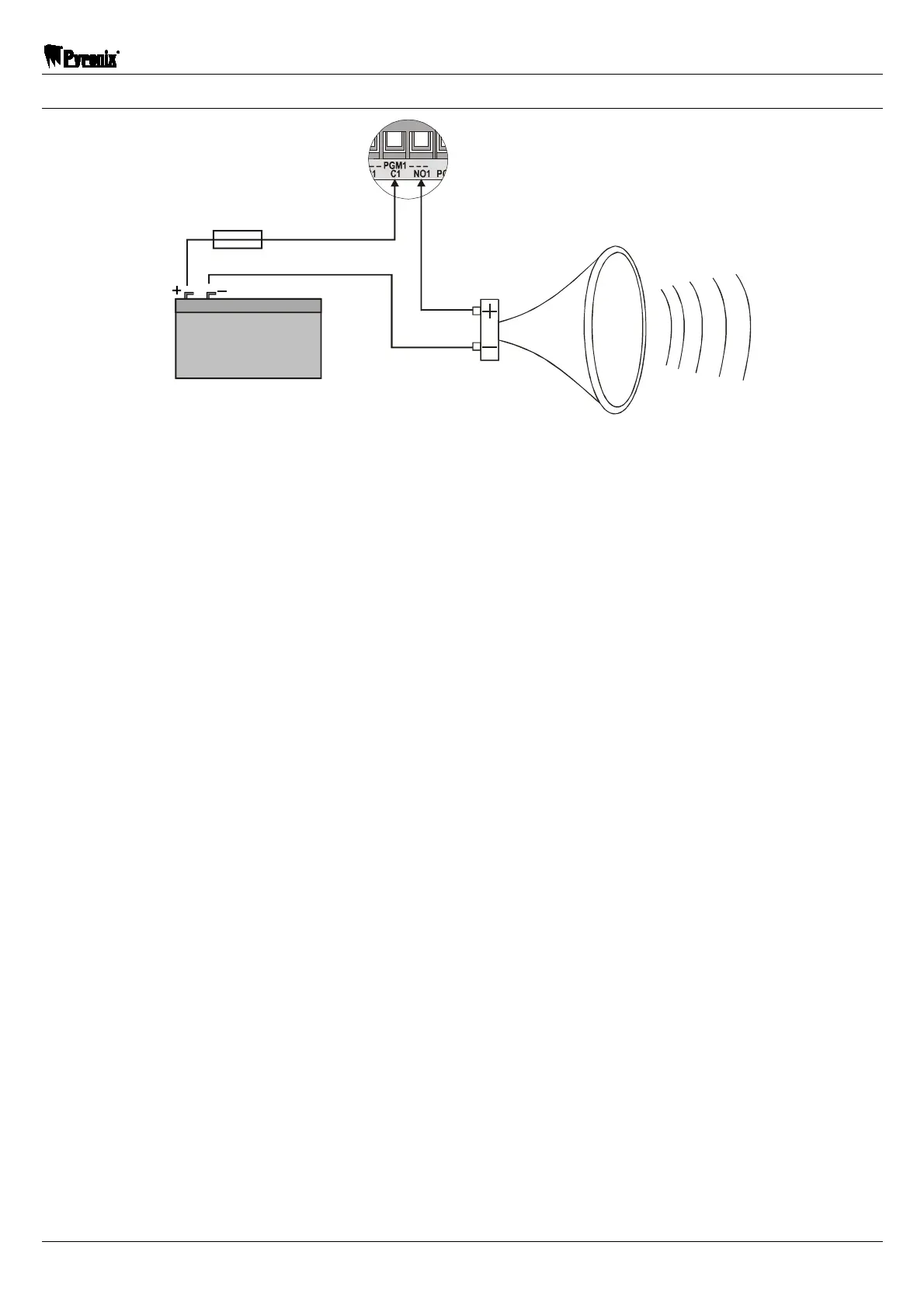

2.9.3 High Power Siren Wiring

Battery

FUSE

3A Anti-Surge

High Power Siren

15W, 30W

NOTE: When a high power siren is to be connected to the Matrix, the PGM1 (C1, NO1) output

should be used. This output uses a relay to switch up to a maximum 3A dc current capacity,

allowing the use of an additional battery to power the siren as shown in the diagram above.
