Matrix 6/816 Installation Manual
Page 20 RINS546-10

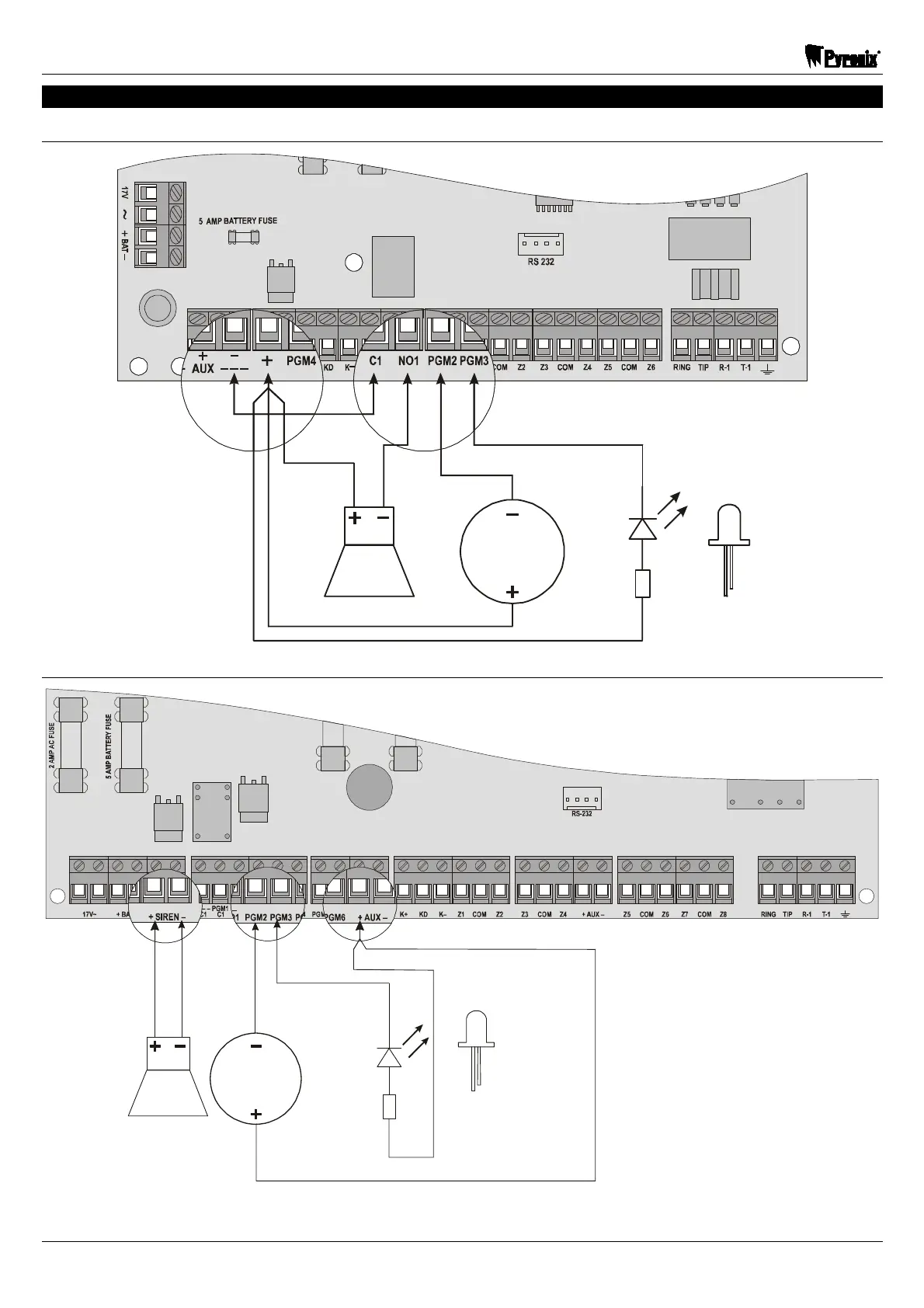

2.9 PGM Output Wiring
2.9.1 Matrix 6 Buzzer, LED & Any Siren Wiring
Siren V 12
Strobe
lamp
V12
LED
А(+)
1К
К(-)
А(+)
К(-)
2.9.2 Matrix 816 – Monitored Siren (and Buzzer & LED)
Siren V 12
Buzzer
V12
LED
А(+)
1К
К(-)
А(+)
К(-)
NOTE: If a monitored siren is not to be used, either programme PGM 7 as Not Used, or link out
the + SIREN – terminals with a 1KΩ resistor.
