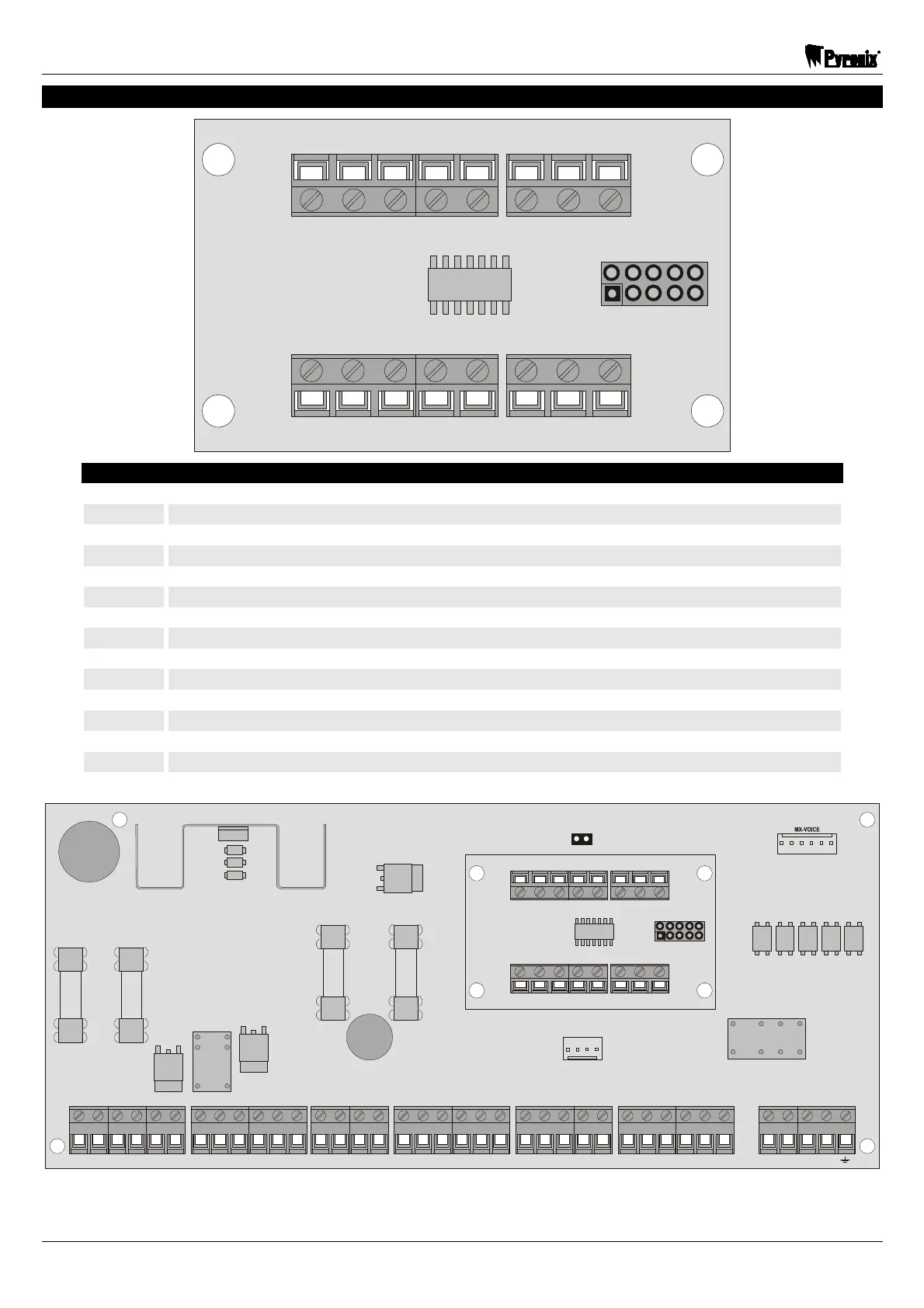

2.7 On-Board Zone Expander (Matrix 816 Only)
+AUX-
J4 PLACED ON
OTHER SIDE OF PCB
Z9 COM Z10 Z11 COM Z12
Z13 COM Z14 Z15 COM Z16+AUX-
Terminal Designation
Z9 Zone 9 input
COM Common input for zones (0V)
Z10 Zone 10 input
+AUX- Auxiliary supply output for detectors. Protected by a 1 Amp “AUX FUSE”
Z11 Zone 11 input
COM Common input for zones (0V)
Z12 Zone 12 input
Z13 Zone 13 input
COM Common input for zones (0V)
Z14 Zone 14 input
+AUX- Auxiliary supply output for detectors. Protected by a 1 Amp “AUX FUSE”
Z15 Zone 15 input
COM Common input for zones (0V)
Z16 Zone 16 input
TIPRING R-1 T-117V~ + BAT - + SIREN - NO1 C1 NO1 PGM2 PGM3 PGM4 PGM5 PGM6 + AUX - K+ KD K- Z1 COM Z2 Z3 COM Z4 + AUX - Z5 COM Z6 Z7 COM Z8
NBUSJY 816
2 AMP AC FUSE
5 AMP BATTERY FUSE
1A AUX FUSE
1A KEYPAD FUSE
RS-232
NVM RESET
+AUX-
J4 PLACED ON
OTHER SIDE OF PCB
Z9 COM Z10 Z11COM Z12
Z13 COM Z14 Z15COM Z16+AUX-
