Matrix 6/816 Installation Manual
Page 16 RINS546-10

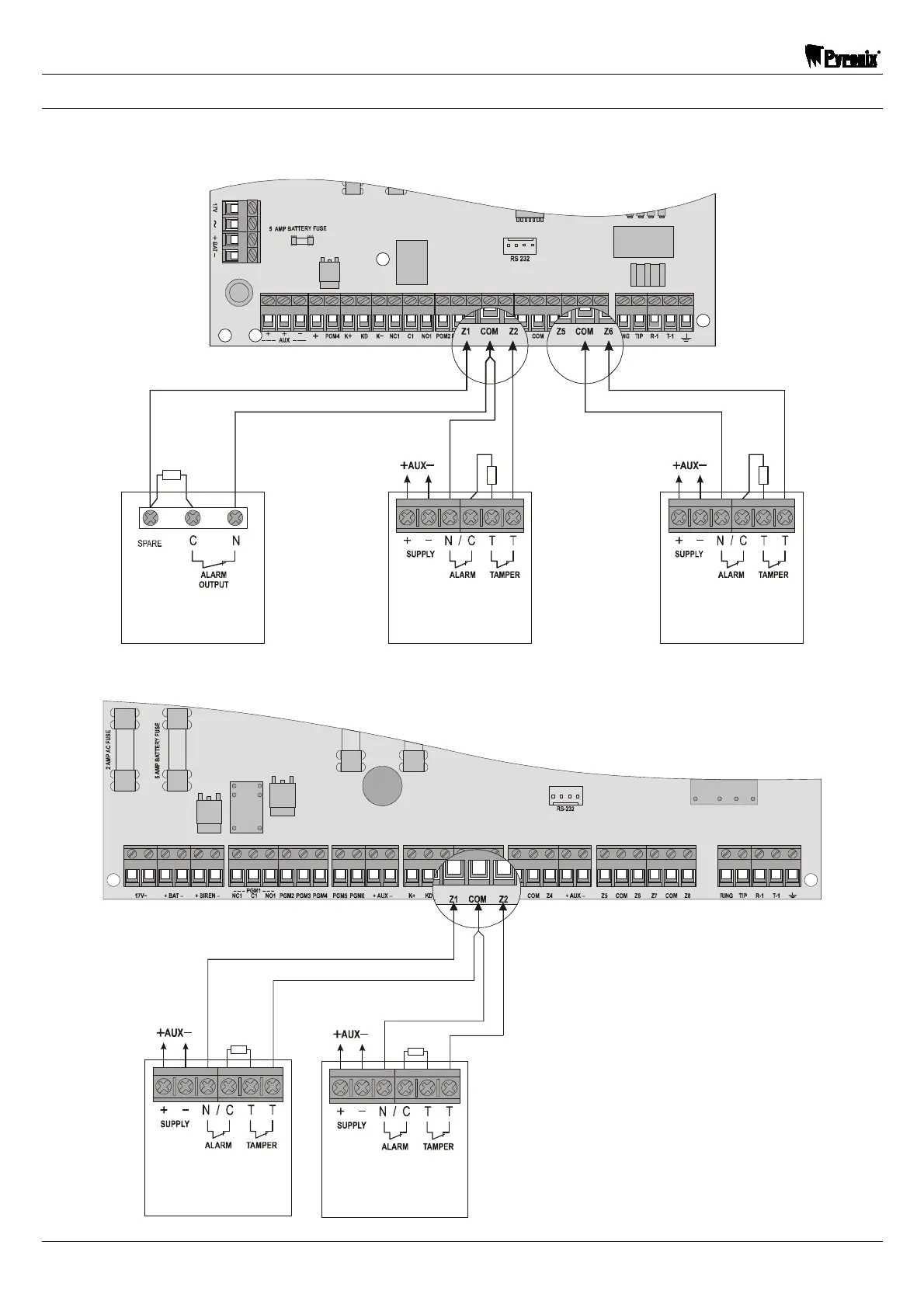

2.6.3 Single End of Line (SEOL) Resistor Wiring
NOTE: Any unused zones should be linked out using a 4k7Ω resistor.
Matrix 6
4K74K7
4K7
Zone 1 Zone 2 Zone 6
PIR
Detector
Magnetic Contact
PIR
Detector
Matrix 816
Zone 1
Zone 2
PIR
Detector
PIR
Detector
4k7
4k7
