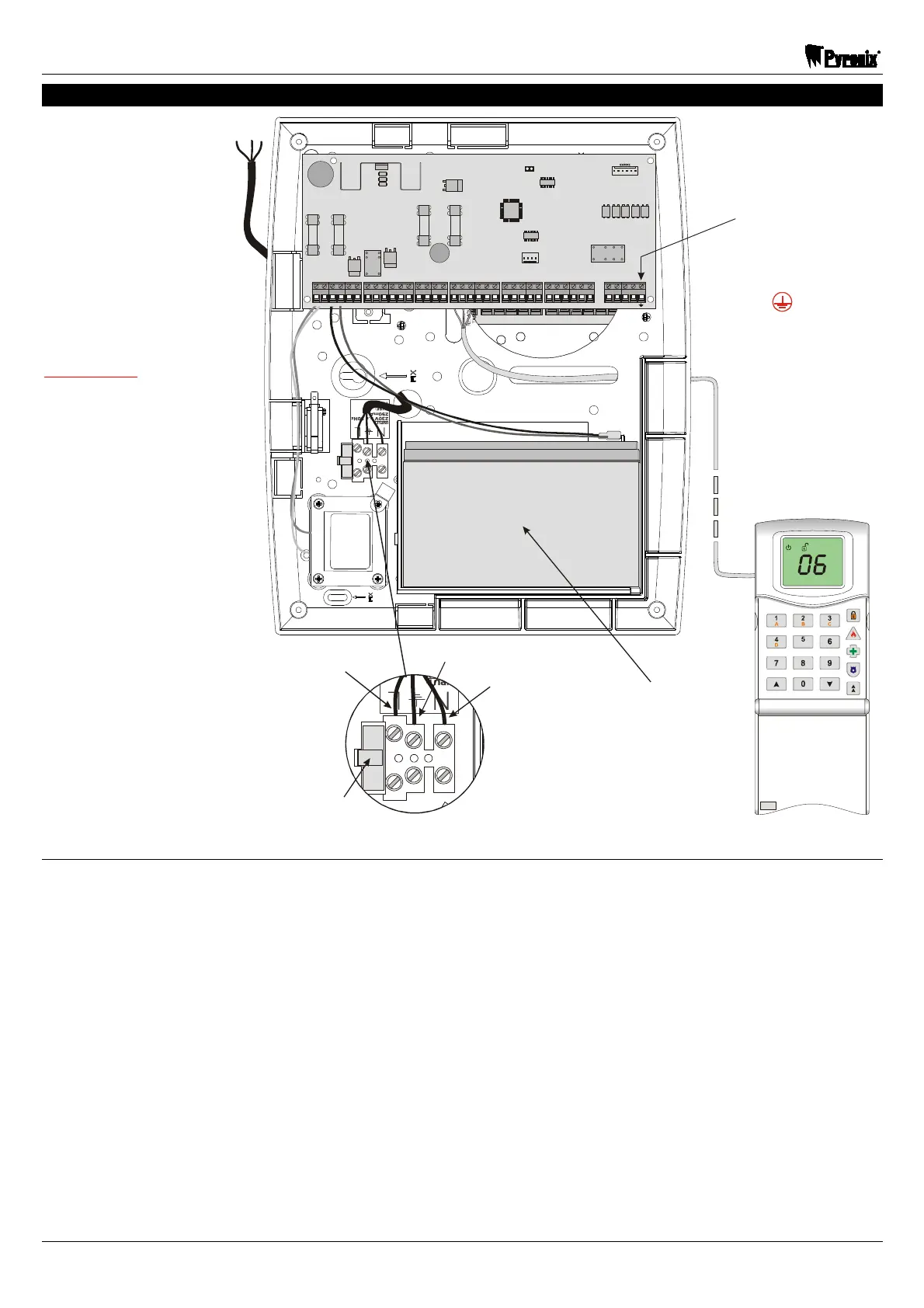

1.4 Power-up System
IMPORTANT
Mains connection
should be carried out
by technically
competent personnel
only, in accordance
with the national and
local electric installation
regulations. Mind safety
measures and means.
To ma i n s
supply
Battery
Ah, 12V 7
Lightning protective
earth terminal
Fuse carrier handle
(fuse nominal - 250 mA)
Neutral
Live
Earth
A
ttention!
Panel communicator
must be earthed/grounded
to protect telephone line input
Note: When the panel is connected to mains
use fuse carrier handle to turn mains
power supply on or off
TIPRING R-1 T-1 17V~ + BAT - + SIREN - NO1 C1 NO1 PGM2 PGM3PGM4 PGM5 PGM6 + AUX - K+ KD K- Z1 COM Z2 Z3 COM Z4 + AUX - Z5 COM Z6 Z7 COM Z8
NBUSJY 816
2 AMP AC FUSE
5 AMP BATTERY FUSE
1A AUX FUSE
1A KE YPAD FU SE
RS-232
NVM RESET
1.4.1 Power Up Delay
Upon power up the panel starts a 90 second delay. The primary function of this delay is to give detectors time
to settle before the panel is fully operational and prevent false alarms.
The remote keypads identify that the 90 second delay is running by cycling their segment displays, and the
Power, Disarmed/Armed, and Ready icons are turned on to indicate that the panel is powered up and running.
During this 90 second delay the panel will initialise itself and turn on the battery charge circuitry, but WILL
NOT scan any of its inputs. These include zones, telephone line, battery level, mains, expander input,
monitored siren, and fuses.
After the 90 seconds has expired the remote keypads will sound an acceptance tone and stop cycling their
segment displays. The panel will then resume normal operation and all inputs will be scanned as normal. The
battery charge circuitry will also be placed back in control of battery monitoring.

Pyronix Matrix 6/816 Specifications

General

Brand	Pyronix
Model	Matrix 6/816
Category	Control Panel
Language	English
