Matrix 6/816 Installation Manual
RINS546-10 Page 17

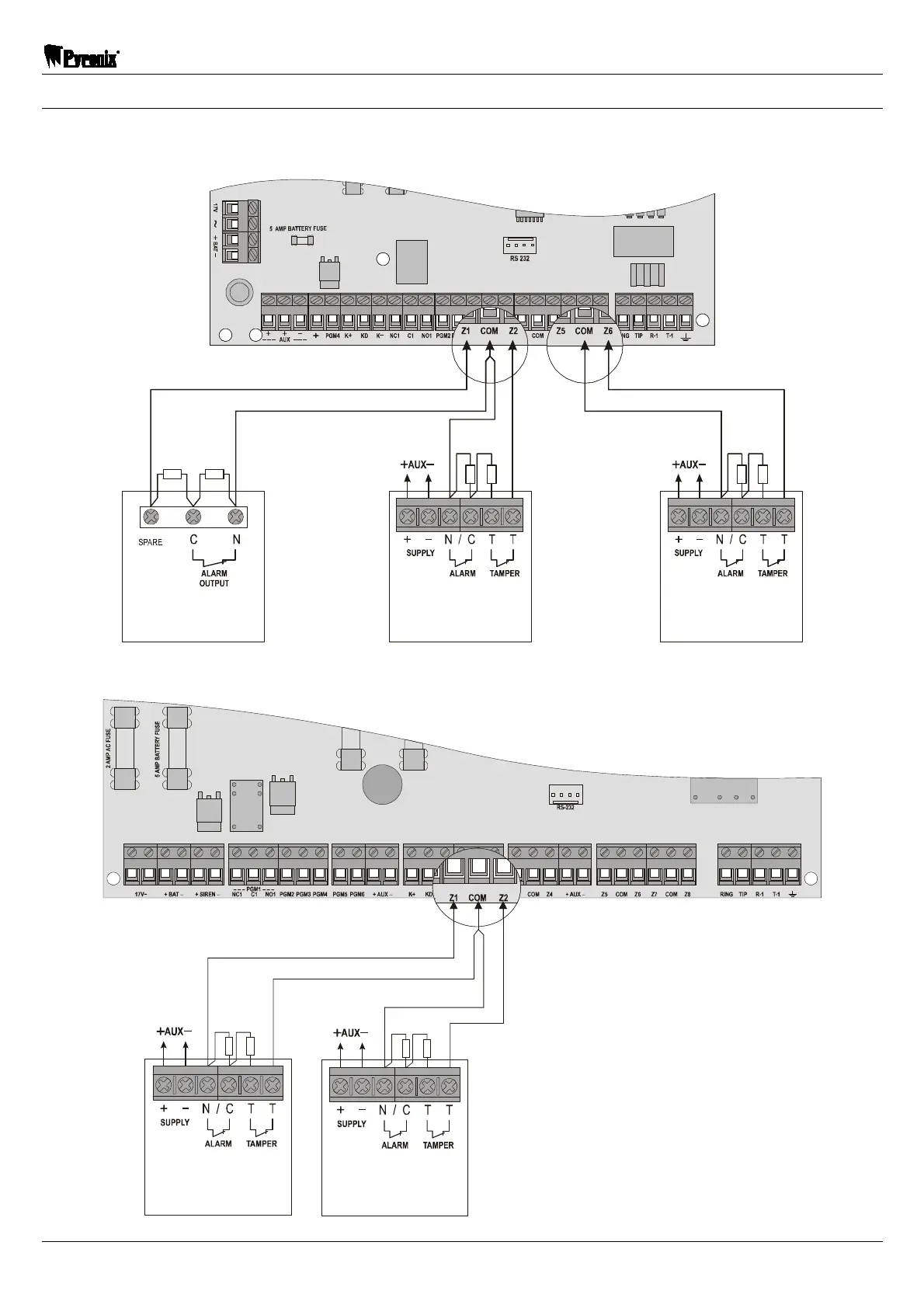

2.6.4 Double End of Line (DEOL) Resistor Wiring
NOTE: Any unused zones should be linked out using a 4k7Ω resistor.
Matrix 6
4K74К74K74К7
4K7 4К7
Zone 1 Zone 2 Zone 6
PIR
Detector
Magnetic Contact
PIR
Detector
Matrix 816
Zone 1
Zone 2
PIR
Detector
PIR
Detector
4k7
4k7
4k7
4k7
