Matrix 6/816 Installation Manual
Page 10 RINS546-10
With Tamper – South Africa

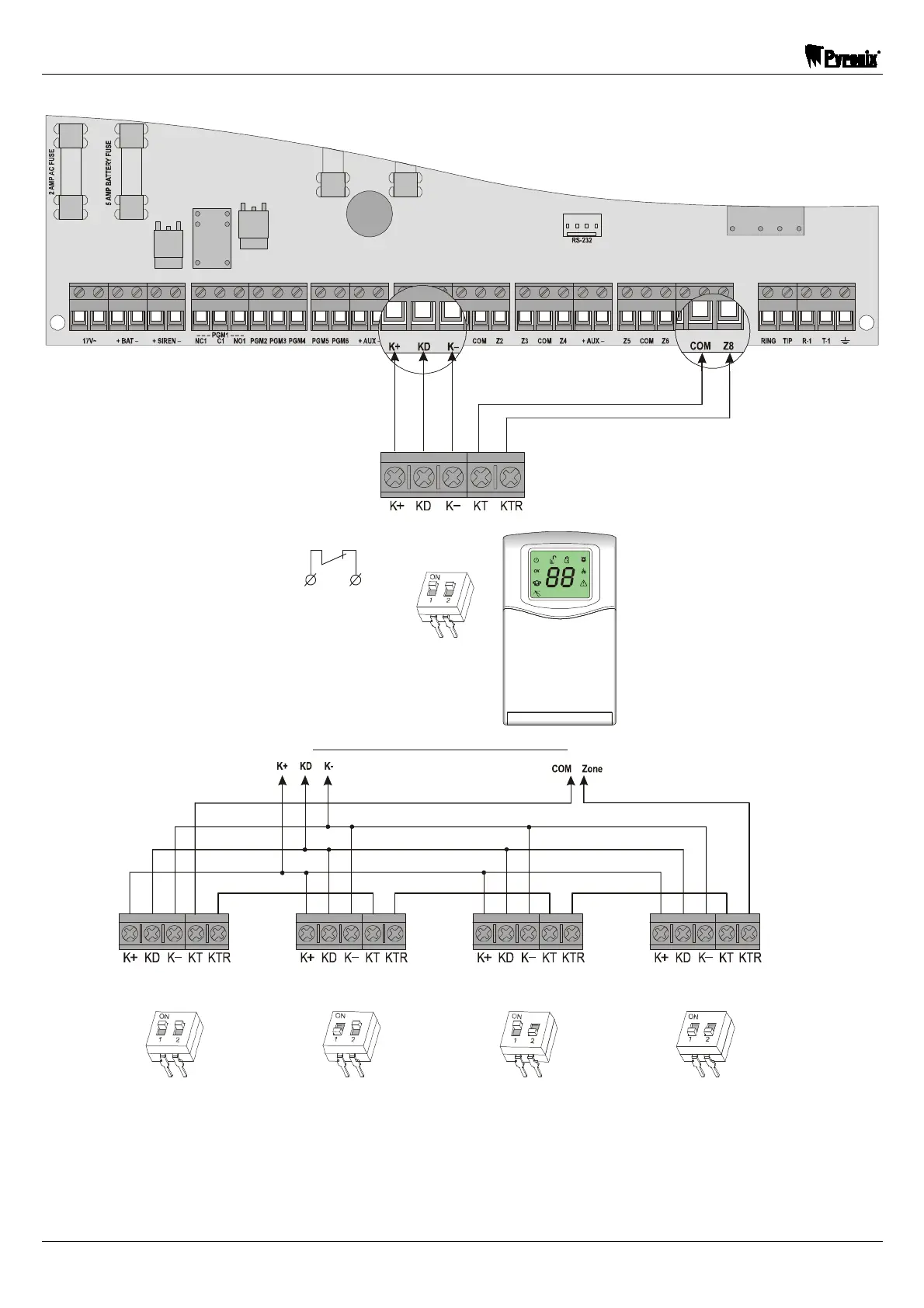

Multiple RKP connection to the panel
RKP
No 1
Tamper outputs
of RKP
KT KTR
RKP
No 1
RKP
No 2
RKP
No 3
RKP
No 4
For tamper loop use zone
programmed as Tamper
For tamper loop use zone
programmed as Tamper
