Pyronix Matrix 6/816 - Page 31

Matrix 6/816 Installation Manual
RINS546-10 Page 27

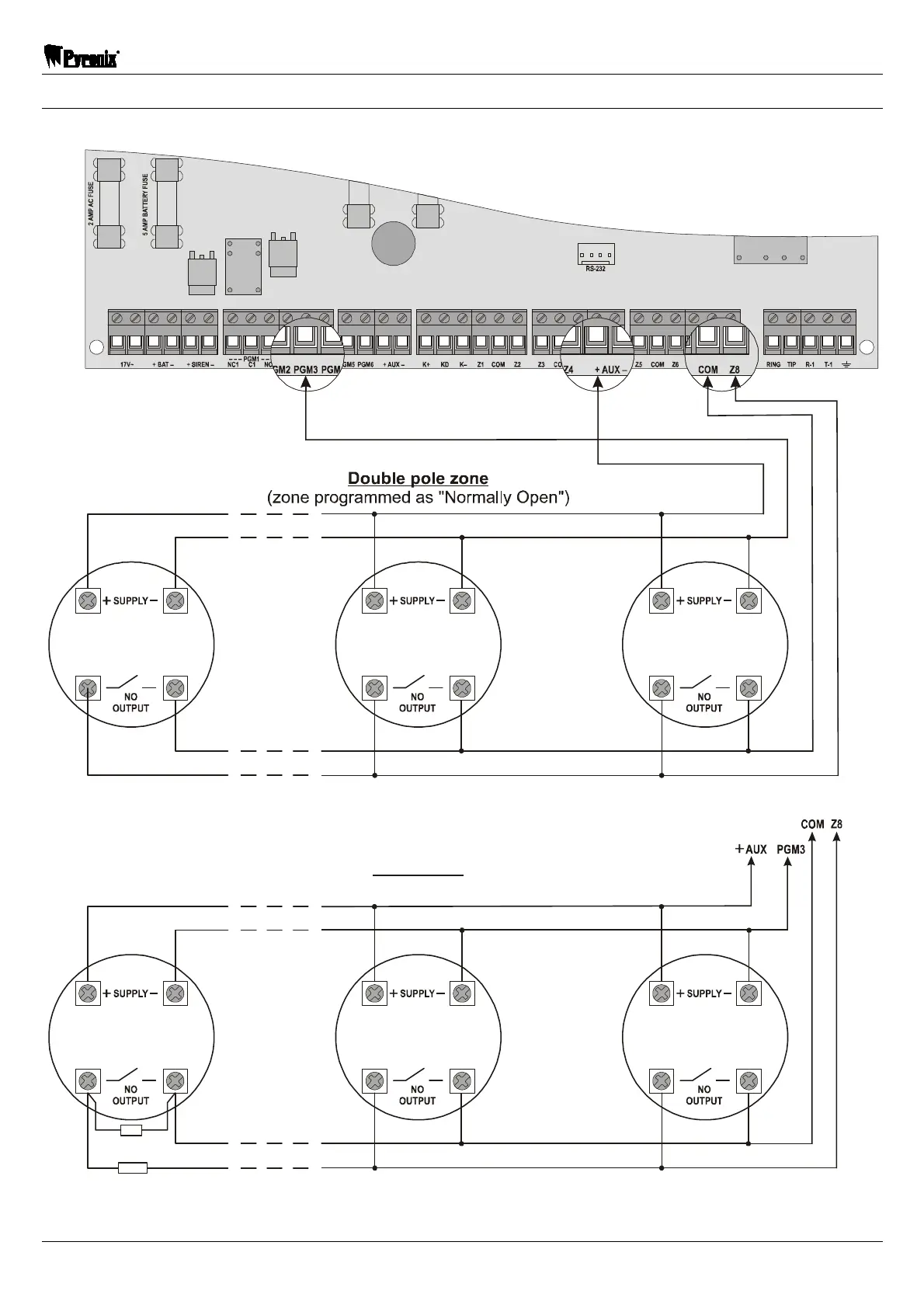

2.11.2 Matrix 816
Normally Open
DEOL zone
(zone programmed as "Normally Open")
4К7
4K7
4 Wire Fire
Detector
4 Wire Fire
Detector
4 Wire Fire
Detector
4 Wire Fire
Detector
4 Wire Fire
Detector
4 Wire Fire
Detector
The last in the zone loop
(or the only one in the zone)
The first
in the zone loop
The second
in the zone loop
The last in the zone loop
(or the only one in the zone)
The first
in the zone loop
The second
in the zone loop
