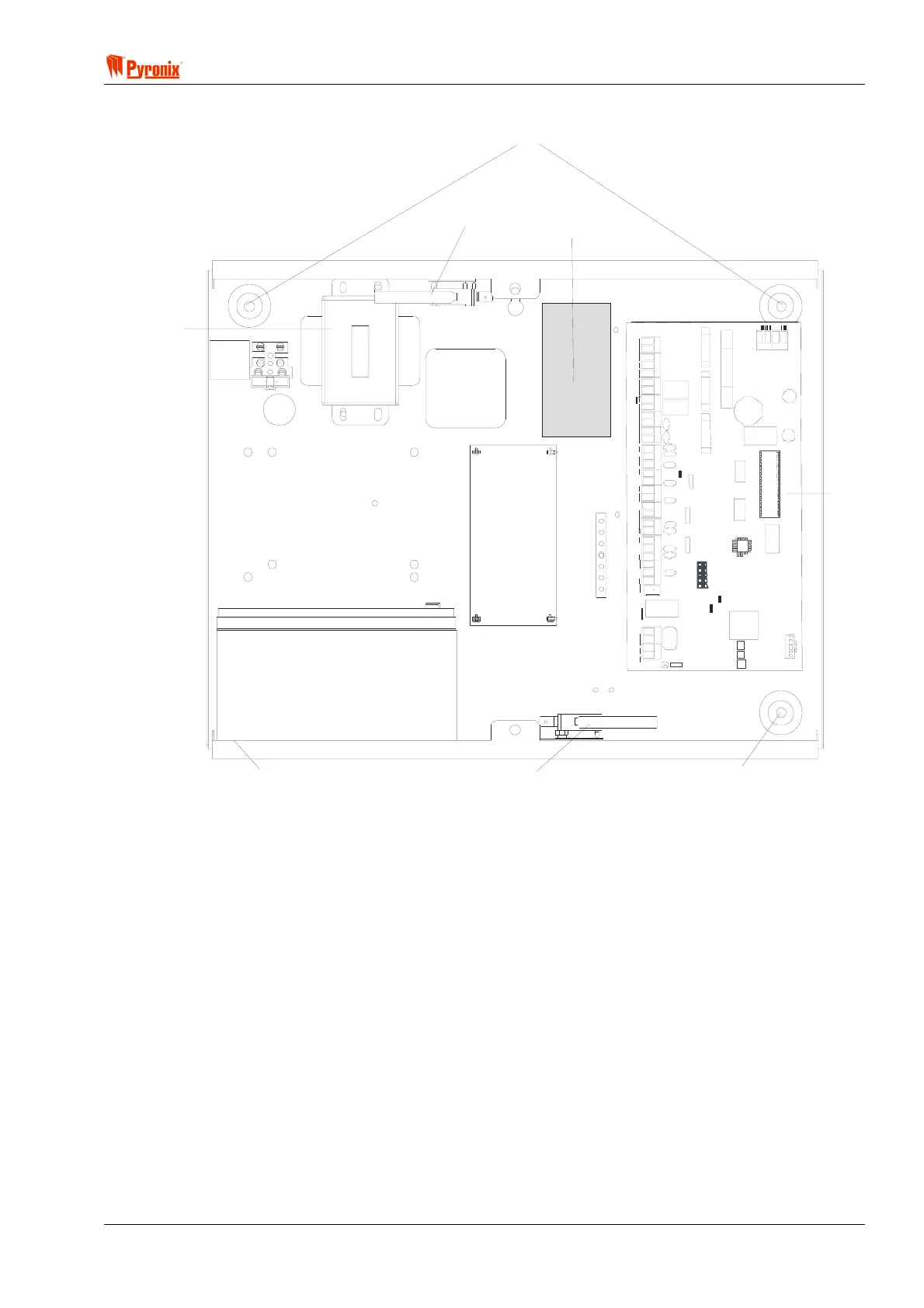

3.3 Panel Layout – Metal Case
Wall Fixing Hole
Wall Fixing Hole
Tamper Switch
Wall Fixing Holes
Tamper Switch
Battery Test Module
(Optional)
Battery
7Ah - 17Ah
Transformer
PCB
MX-Voice
Mo dule
3.4 Battery Installation Procedure
Place two foam pads on the bottom of the Battery and two on the upper rear. Place the Battery in the case
and secure with two tie wraps.
