Item #
Connector Description
1 VIDEO IN 16 BNC video inputs for connecting analog video cameras
2 FAN Cooling fan exhaust port. This should not be blocked.
3
DC 12V/3A Power Connection
4 HDMI To connect to a HD display
5 VGA OUTPUT To connect to VGA monitor
6 NETWORK For connecting Ethernet cable
7 USB 2 USB ports for a mouse and external USB drive
8 E-SATA To connect to an external SATA drive.
9
RS485
RS485 for connecting PTZ
485A is “Positive” and 485B is “Negative”
ALARM INPUT 8 I/O Alarm input
10
ALARM
OUTPUT
I/O Output for alarm
11 AUDIO IN 2 RCA connectors for microphones
12
AUDIO
OUTPUT
RCA connector for output to amplified speaker
13 VIDEO OUT Video output for connecting to TV (BNC)
Item # Name/ Symbol Description
1 LED
INDICATORS
Shows status of hard drive, network, and whether the DVR is
currently recording.
2 IR SENSOR IR Receiver for remote control.

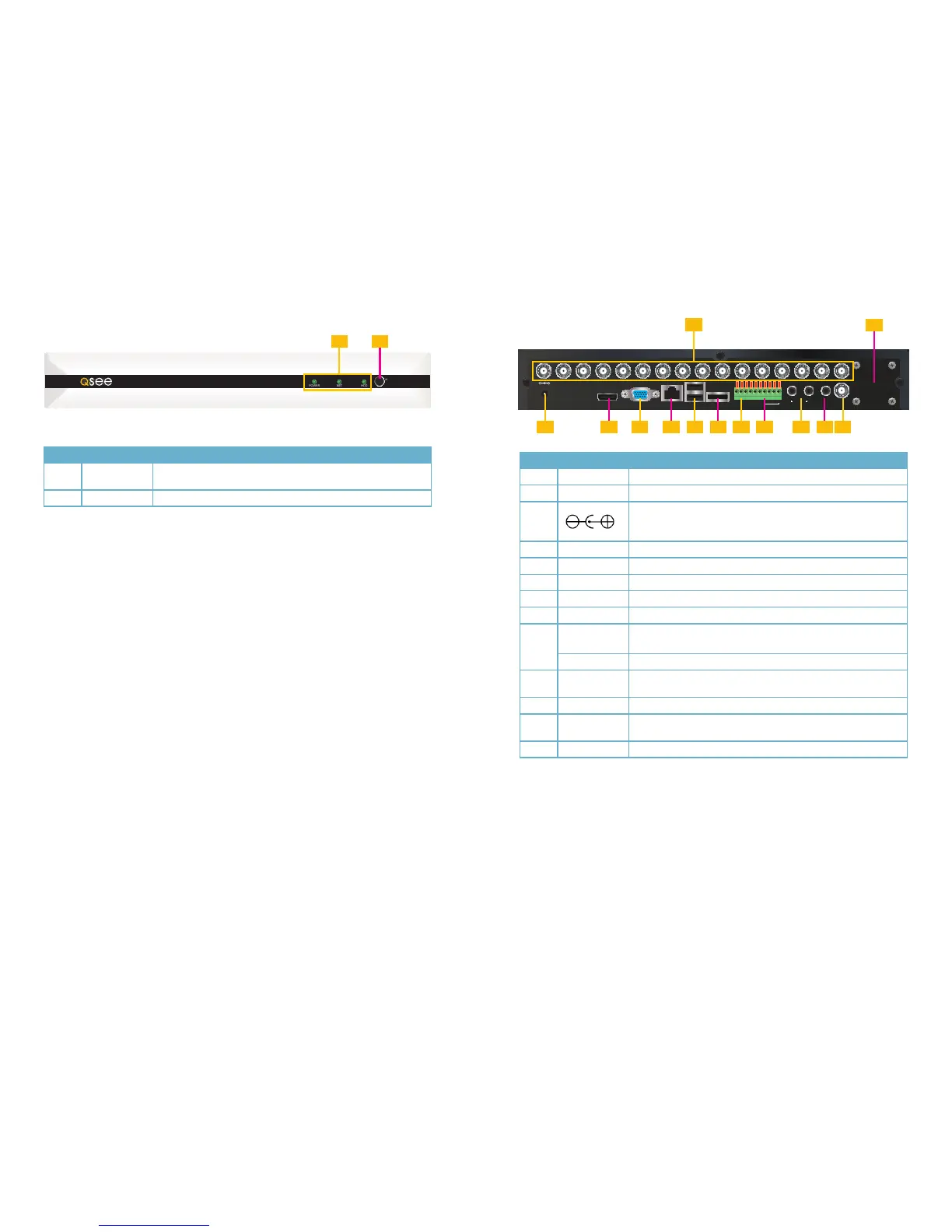

QS4816
FRONT PANEL
16 Channels QS4816
POWER NET HDD
IR
1 2
