PTZ Definitions and Descriptions:
Parameter Settings What it Means
Address 1-255 The address of the PTZ camera
Preset Points 1-255 Programmed positions that the camera will point to.
Points 1-99 may be configured by the user
Baud Rate 1200-9600 The speed that data is transmitted
A lower speed may be needed for longer cable runs
Protocol The communication protocol used by the camera.
Supported protocols are; Pelco-D, Pelco-P, PelcoD1,
PelcoD2, PelcoD3, PelcoD4, PelcoP_WJ, ABK2001, ACES-
HN, Dragon, EE, HT600, HY, Lilin, Philips, SAE, Samsung,
YAAN, YLDVR

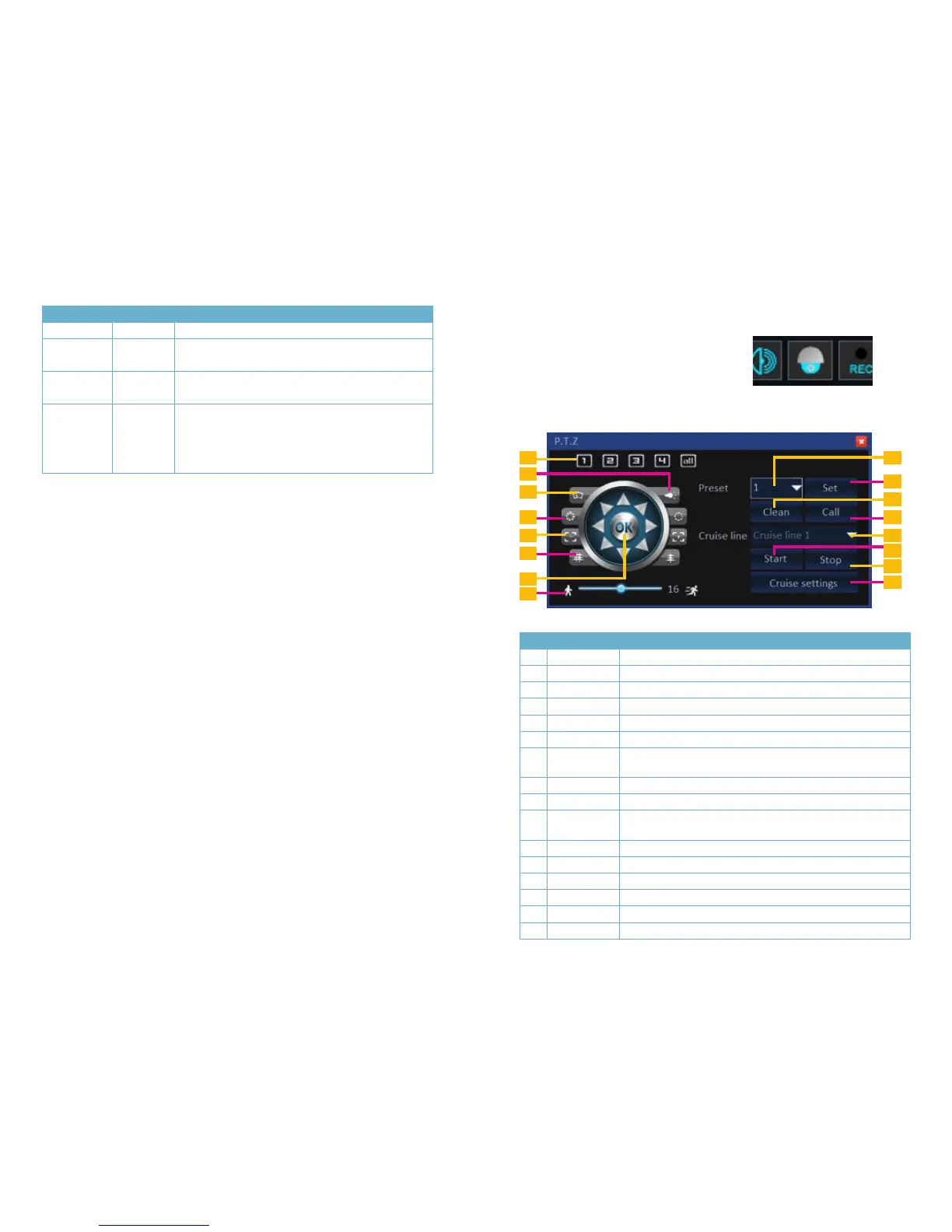

6.2 CONFIGURING AND CONTROLLING A PTZ CAMERA
All activities regarding controlling the PTZ camera manually, or setting up automatic cruises,
take place in the PTZ control panel located in the Control Bar.
PICTURE 6-3
PICTURE 6-4
1
2
3
4
5
6
7
8
11
12
13
14
15
16
9
10
No. Item Function
1 Channel Select which channel the PTZ is connected to.
2 Light Turns on camera’s light (if so equipped)
3 Wiper Turns on camera’s wiper (if so equipped)
4 Iris controls Adjusts light levels
5 Focus controls Adjusts focus
6 Zoom Zoom in or out
7 Directional
Controls
Click on arrows to move camera in desired direction.
8 Speed Adjust speed of camera’s movement
9 Preset Choose the Preset Point number.
10 Set Preset Sets camera’s current position as preset point indicated by the
number to the left.
11 Clean Deletes preset point
12 Call Goes to preset point
13 Cruise Line Selects a cruise for the camera to follow
14 Start Begins cruise
15 Stop Stops cruise
16 Cruise settings Click to build cruise from preset points.
