INSTALLING HARDWARE HDD TRAY
2-4
2.3 HDD Tray
The HDD tray houses the HDD bay and various other components. All components other
than the HDD bay require the full extension of the HDD tray before servicing.
The Power Distribution Board (PDB) remains fully engagaed and the system continues to
draw even when the HDD tray is extended to an open position. Only by disconnecting the
power cord from the power supply unit is the system powered down.
The hot-plug HDDs can be serviced without removing the system from the rack:
All other component servicing require the system to be removed from the rack and placed
on a stable, clean flat surface.
Releasing the HDD Tray
To release the HDD tray:
1. Pull the release lever up on the HDD tray as shown.

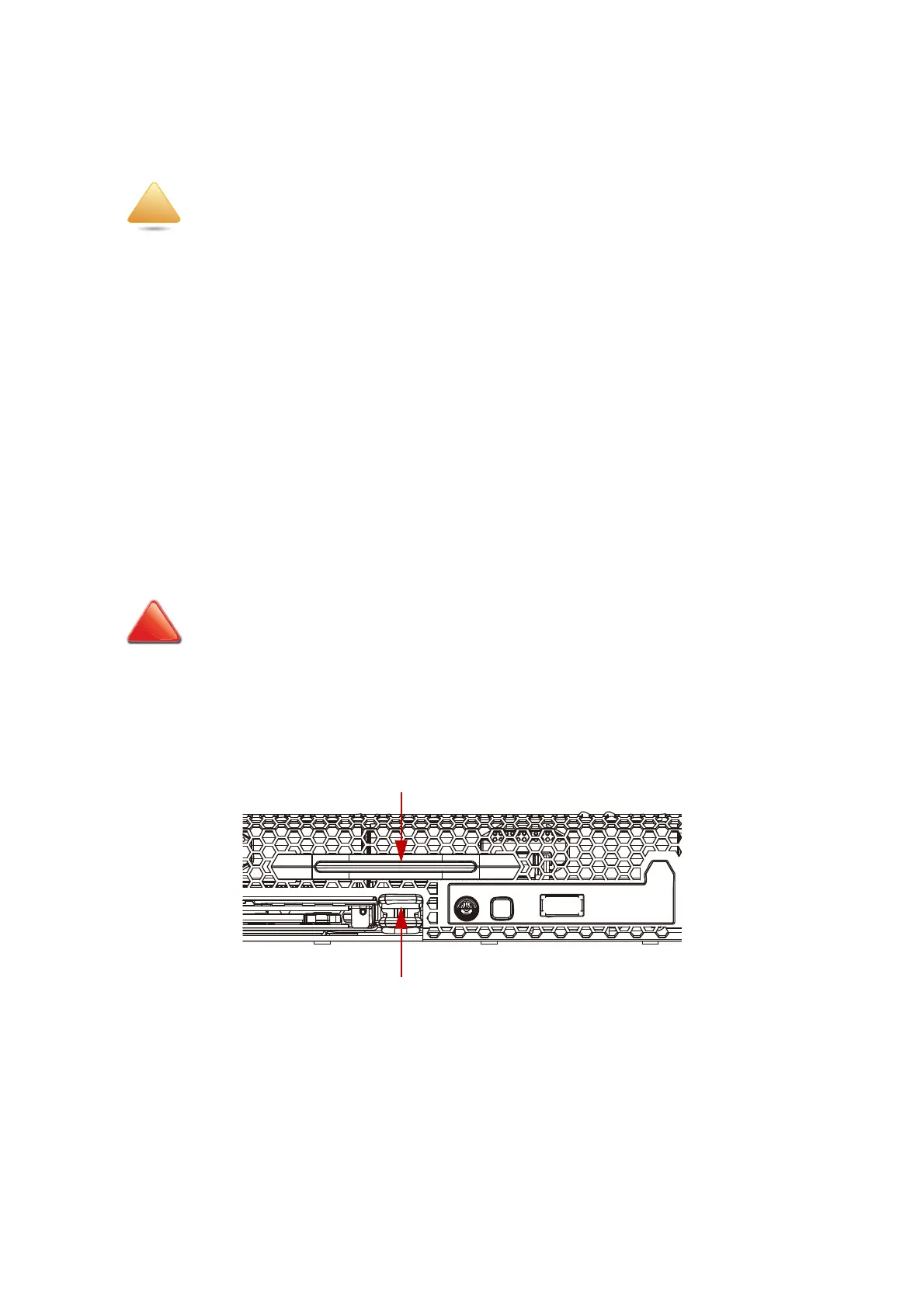

Figure 2-2. Locate the HDD tray handle and release lever on the system front panel.
All the service procedures for the HDD tray including hot-plug Hard Disk Drives replacement
must be performed within 30 minutes without turning-off system.
REFER TO SAFETY INSTRUCTIONS FOR PROPER HANDLING IF SYSTEM IS STILL POWERED ON.
HDD tray release lever
HDD tray handle
