INSTALLING HARDWARE OCP MEZZANINE BOARD
2-26
2.11 OCP Mezzanine Board
Removing a OCP Mezzanine Board
1. Remove the system from the rack to power it down.
2. Remove the top cover. See Removing the Top Cover on page 2-11.
3. Remove the screws securing the OCP assembly to the chassis.
4. Remove the screws securing the OCP assembly to the standoffs on the chassis.

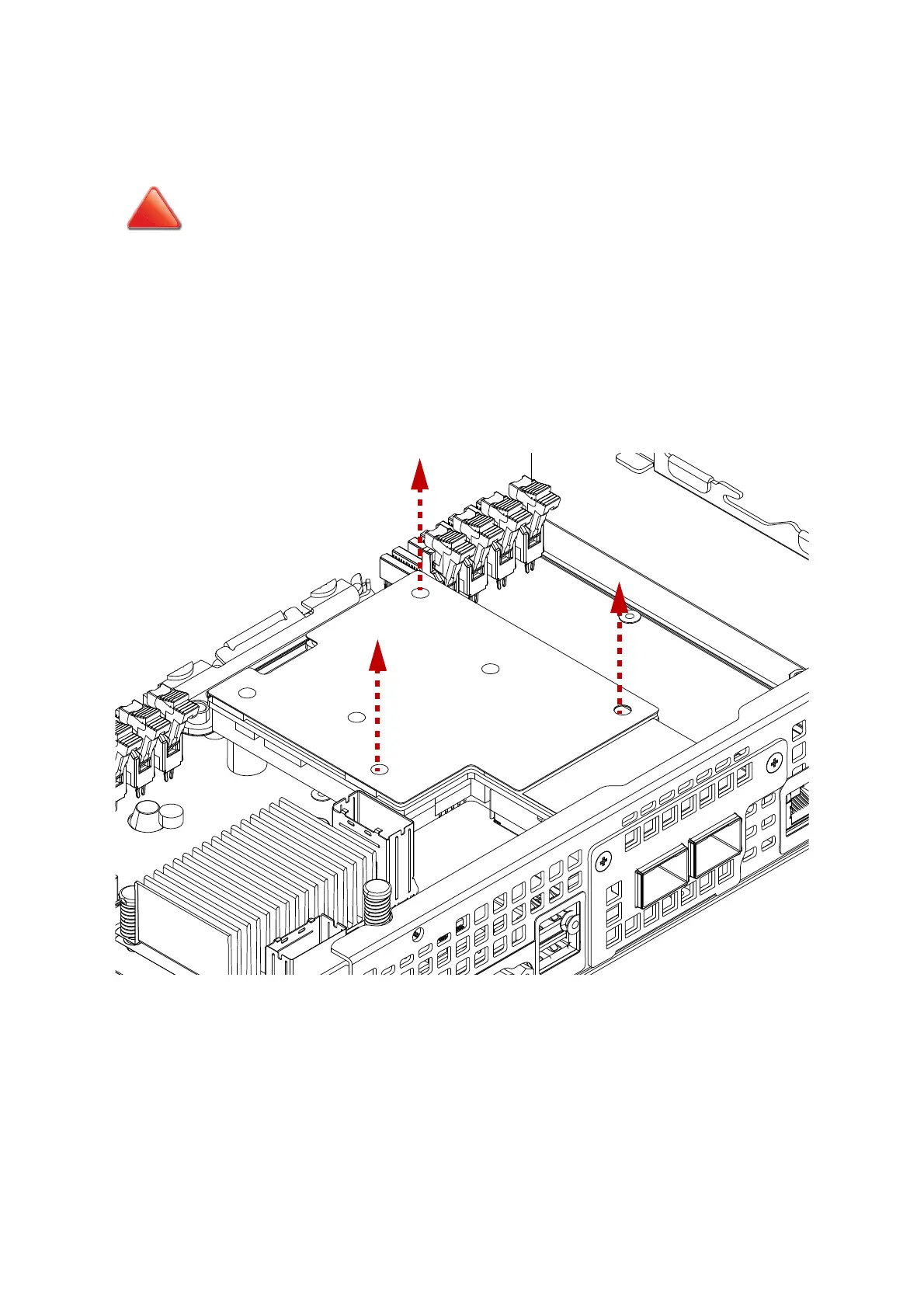

Figure 2-28. Removing the OCP Mezzanine Board
CAUTION!
ENSURE ALL POWER IS DISCONNECTED FROM THE SYSTEM BEFORE PROCEEDING.
!
