INSTALLING AN OCP MEZZANINE BOARD INSTALLING HARDWARE
2-27
5. Remove the bracket from the chassis.

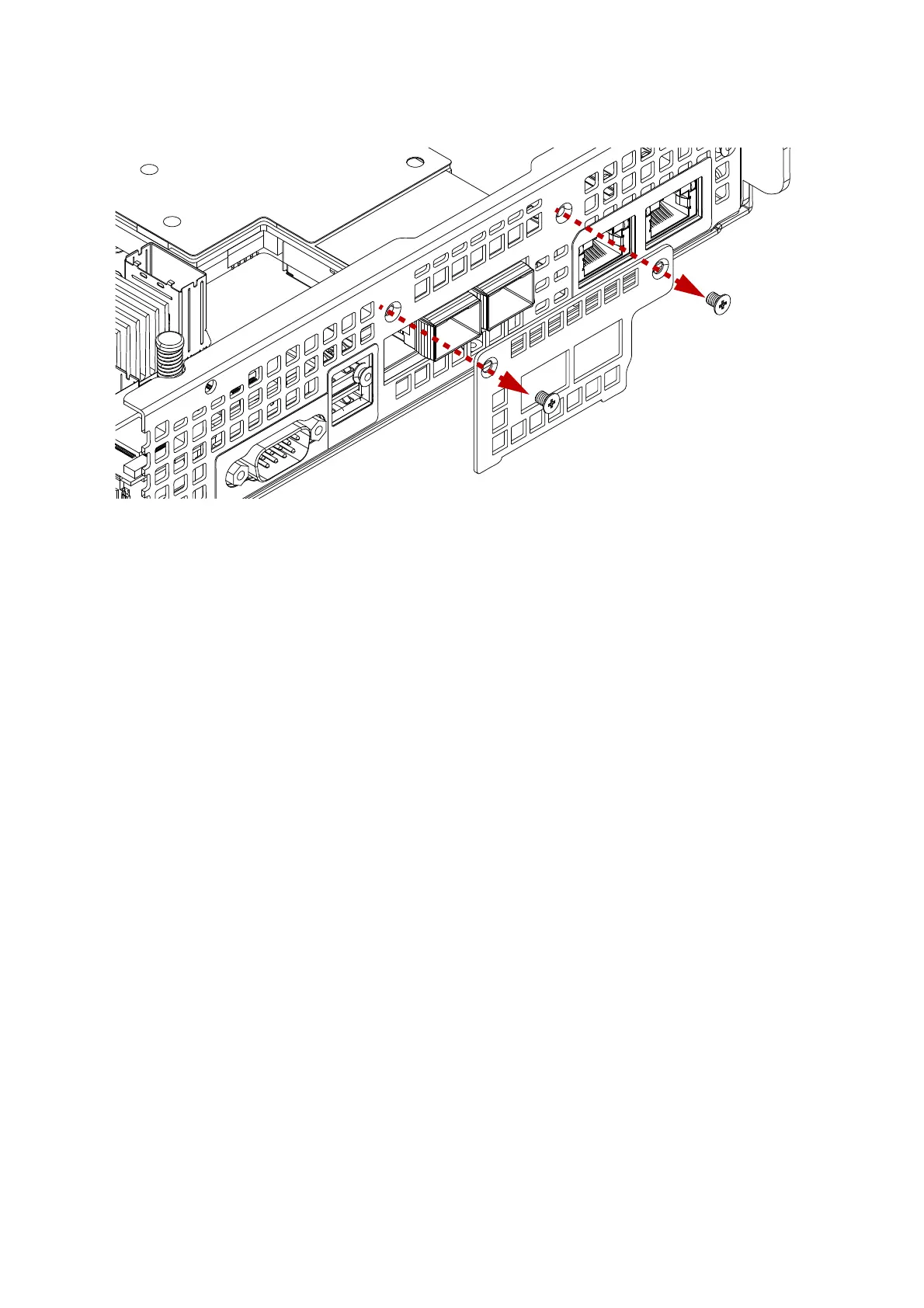

Figure 2-29. Removing the Bracket
6. Place the OCP mezzanine board in an anti-static bag.
7. Replace the OCP mezzanine board.
8. Install the top cover. See Installing the Top Cover on page 2-11.
9. Replace the system in the rack to power on.
Installing an OCP Mezzanine Board
1. Remove the top cover. See Removing the Top Cover on page 2-11.
2. Remove the screws securing the bracket to the chassis.
