QCT QuantaGrid D51PH-1ULH User Manual

ABOUT THE SYSTEM SYSTEM OVERVIEW
1-7
System Front View

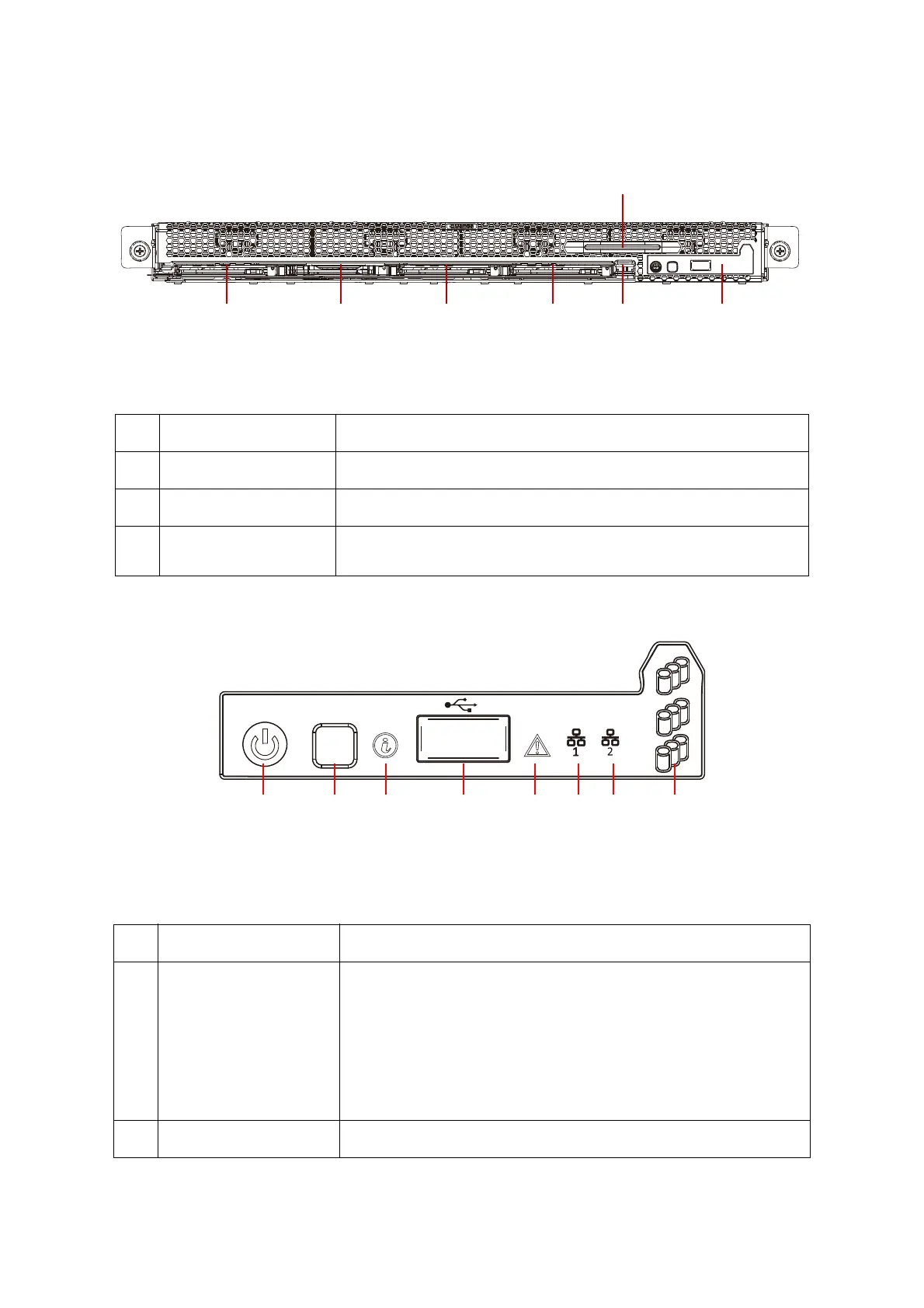

Figure 1-2. System Front View
Front Control Panel
Figure 1-3. Front Control Panel View
Table 1.3: Front Control Panel View
NO.NAME DESCRIPTION
1 Control Panel Control system and status display.
2 Release lever Pull up to release the HDD tray.
3
HDD tray handle
Hold to pull out the HDD tray from the chassis or push the HDD tray
into the chassis.
Table 1.4: Front Control Panel View
NO.NAME DESCRIPTION
1 Power Button with LED
Power Button:
Push button to power the system on /off. Press more than 4 sec. to
shut down the system.
Power LED (Blue):
On, S0 system power on
Off, S4/S5 system power off
Blinking, S1 Standby/Sleep
2 ID Button Press to light up / off the ID LED to identify this system
1
2
3
SSD0 SSD1 SSD2 SSD3
1
2
3
12
34
67 8
5
