INSTALLING HARDWARE PROCESSOR HEAT SINK
2-19
2.8 Processor Heat Sink
Removing a Processor Heat Sink
1. Remove the top cover.
2. Loosen the captive screws securing the heat sink in a sequential order.

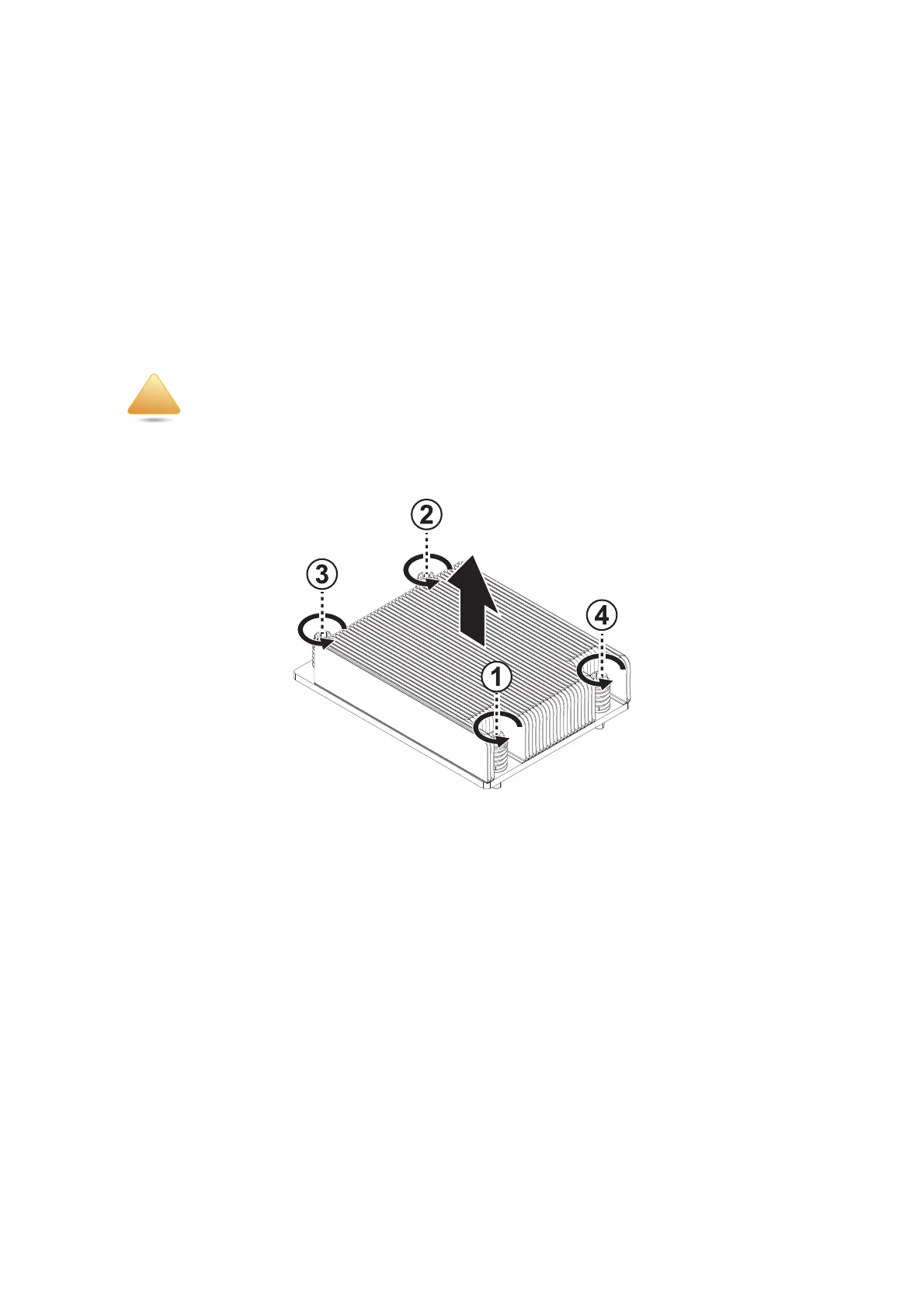

Figure 2-18. Removing the Heat Sink
3. Remove the heat sink.
4. Repeat steps for the other heat sink.
Installing a Processor Heat Sink
1. Remove the top cover.
2. Align the heat sink over the processor plate.
Note:
All the instructions and images in this section are for illustration purposes only and may not
reflect the actual product.
WARNING!
The heatsink remains hot after the system has been powered down. Allow sufficient time to
cool before handling system components.
!
