INSTALLING HARDWARE INSTALLING A PROCESSOR HEAT SINK
2-20

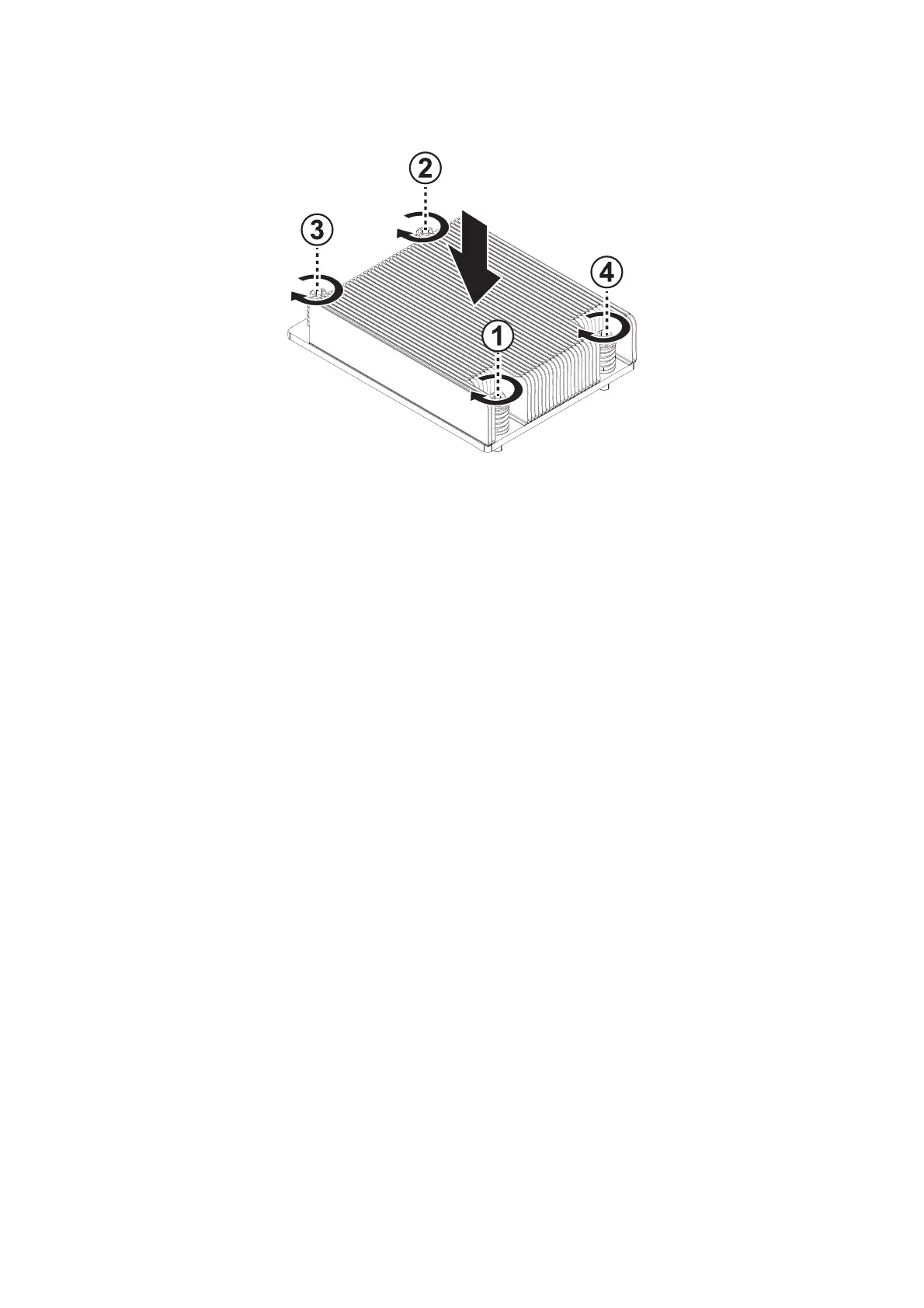

3. Install the heat sink. Make sure the screw(s) are inserted into the screw wells.
Figure 2-19. Removing the Heat Sink
4. Tighten the screw(s) in the order shown.
5. Repeat steps for the remaining heat sink.
6. Install the top cover.
