No. Component No. Component
2 Ethernet port 3 (GbE RJ45) 10 Power supply unit 1
3 Ethernet port 1 (GbE RJ45) 11 Power supply unit 2
4 Ethernet port 2 (GbE RJ45) 12 Ethernet port 5 (10GbaseT RJ45)
5 Ethernet port 7 (10GbE SFP+) 13 USB 3.2 Gen 2 Type-C ports
6 Ethernet port 8 (10GbE SFP+) 14 USB 3.2 Gen 2 Type-A ports
7 Ethernet port 6 (10GbaseT RJ45) 15 Reset button
8 PCIe 3.0 x8 slot 2 - -

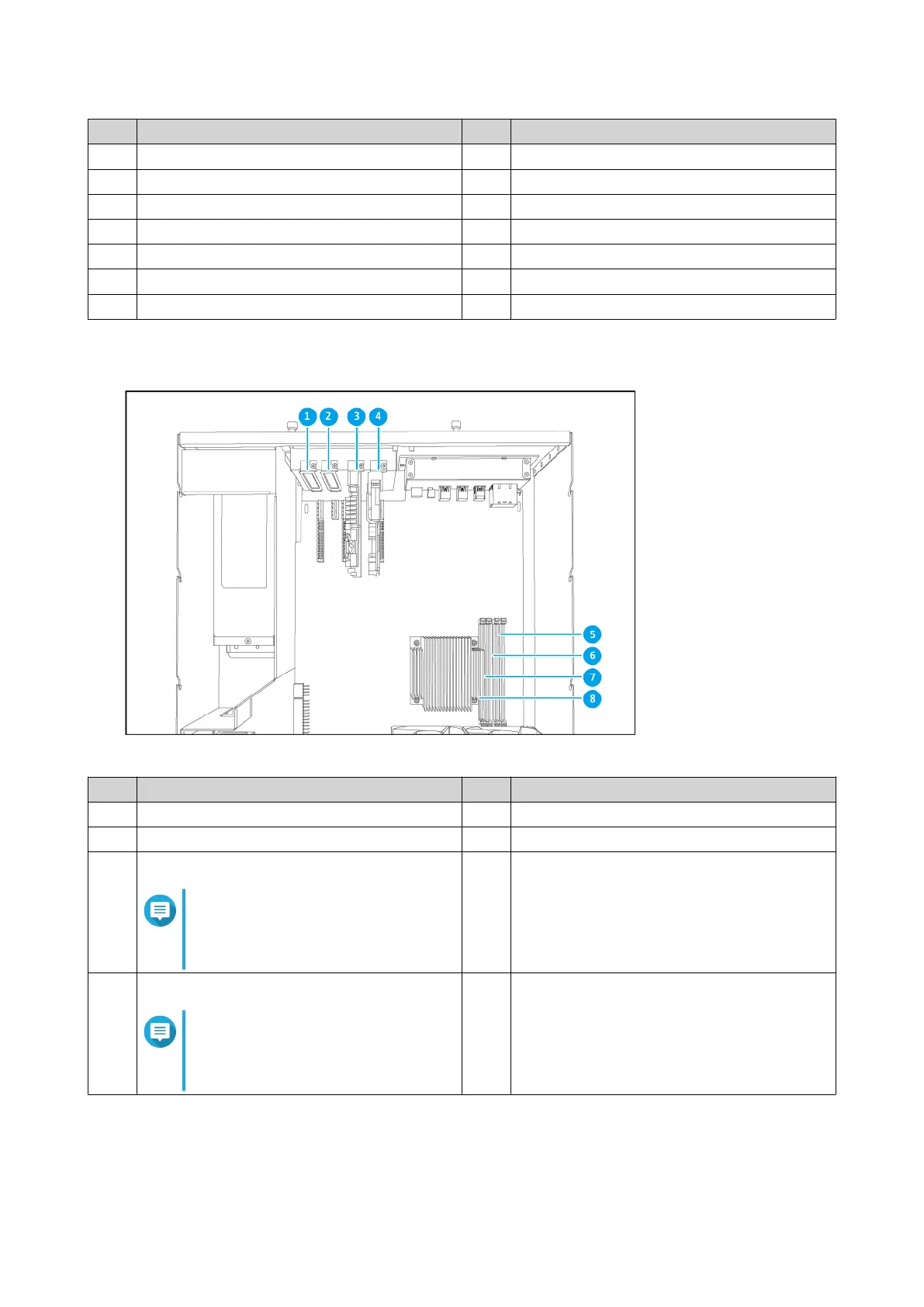

System Board
No. Component No. Component
1 PCIe 2.0 x4 slot 1 5 Memory slot 1
2 PCIe 3.0 x8 slot 2 6 Memory slot 2
3 PCIe 3.0 x4 slot 3
Note
A dual-port 10GBase-T RJ45
expansion card is installed on this
PCIe slot.
7 Memory slot 3
4 PCIe 3.0 x4 slot 4
Note
A dual-port 10 GbE SFP+
expansion card is installed on this
PCIe slot.
8 Memory slot 4
TS-h1283XU-RP User Guide
Product Overview 8
