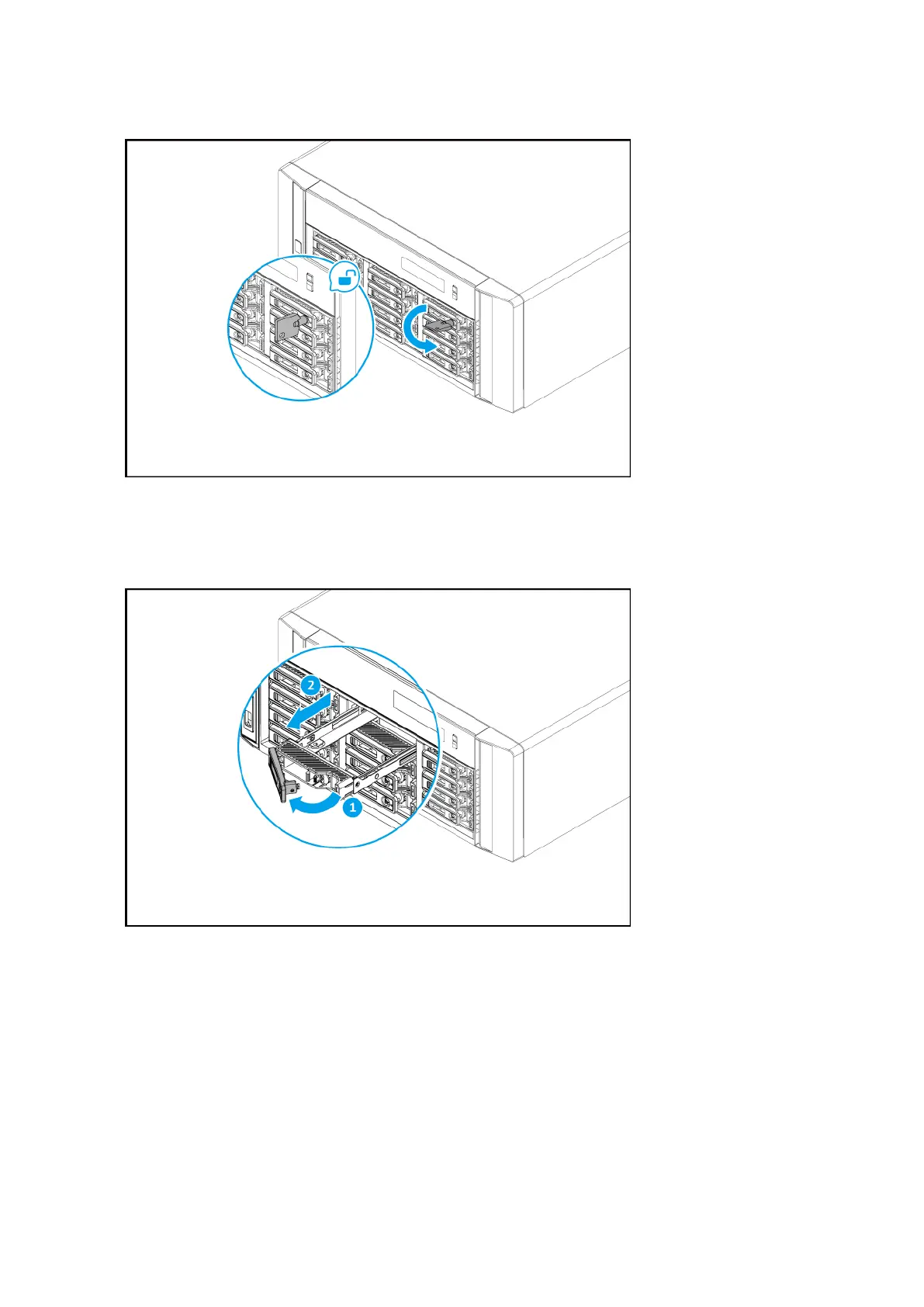

b. Pull the handle to release the tray.
c. Pull the tray out.
3. Install a drive on the tray.
a. Place the drive on the tray so that the nodules on the sides of the drive are aligned with the
indentations on the sides of the tray.
TS-h1290FX User Guide
Installation and Conguration 14
