QNAP TS-h1290FX User Manual

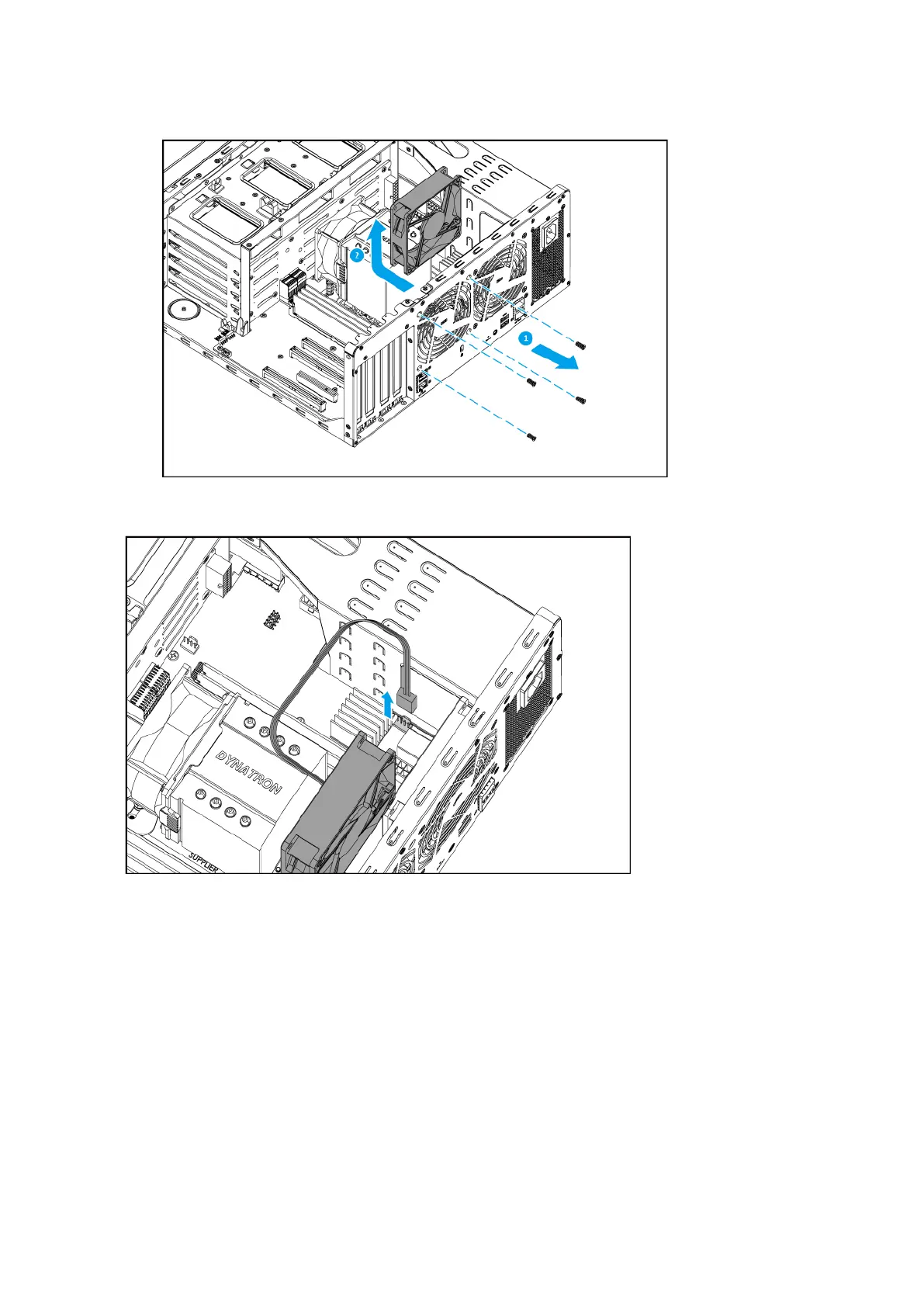

a. Remove the screw that secures the fan module to the chassis.
b. Disconnect the fan cable from the system board.
c. Carefully pull the fan module away fom the system board.
6. Install a new fan module.
a. Insert the module into the chassis.
b. Connect the fan cable to the system board.
TS-h1290FX User Guide
Installation and Conguration 25
