7. Install a new module.

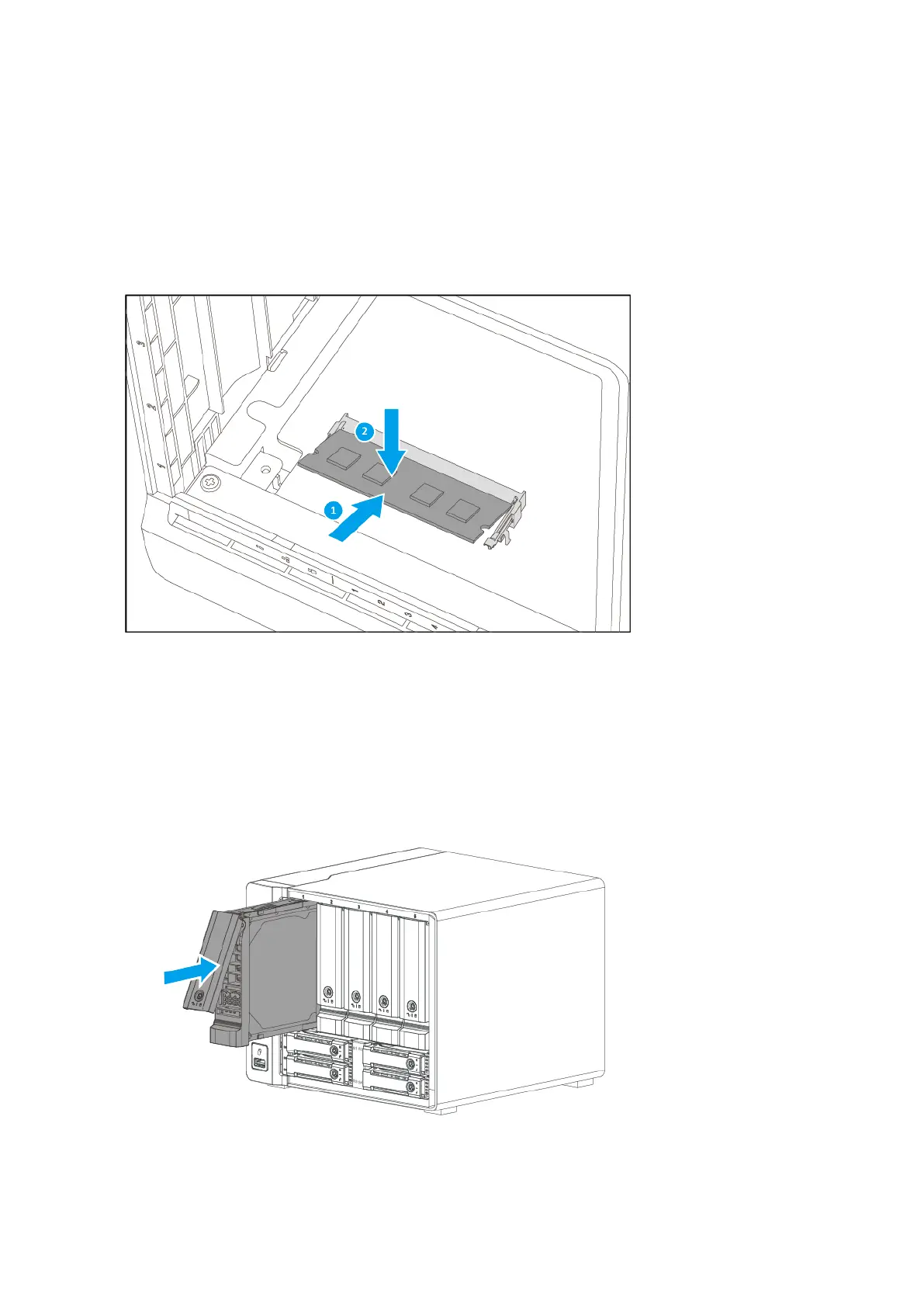

a. Align the notch with the ridge in the slot.
b. Insert the module into the slot.
c. Verify that the metal connectors are completely inserted into the slot.
d. Carefully press down on the module until the retention clips lock the module into place.
8. Place the device in its normal upright position.
9. Return drive trays into their original bays.
a. Slide the drive tray into the drive bay.
b. Push in the handle.
