QOLSYS Panel 2+ - WIRING DIAGRAM

INSTALLING THE PANEL

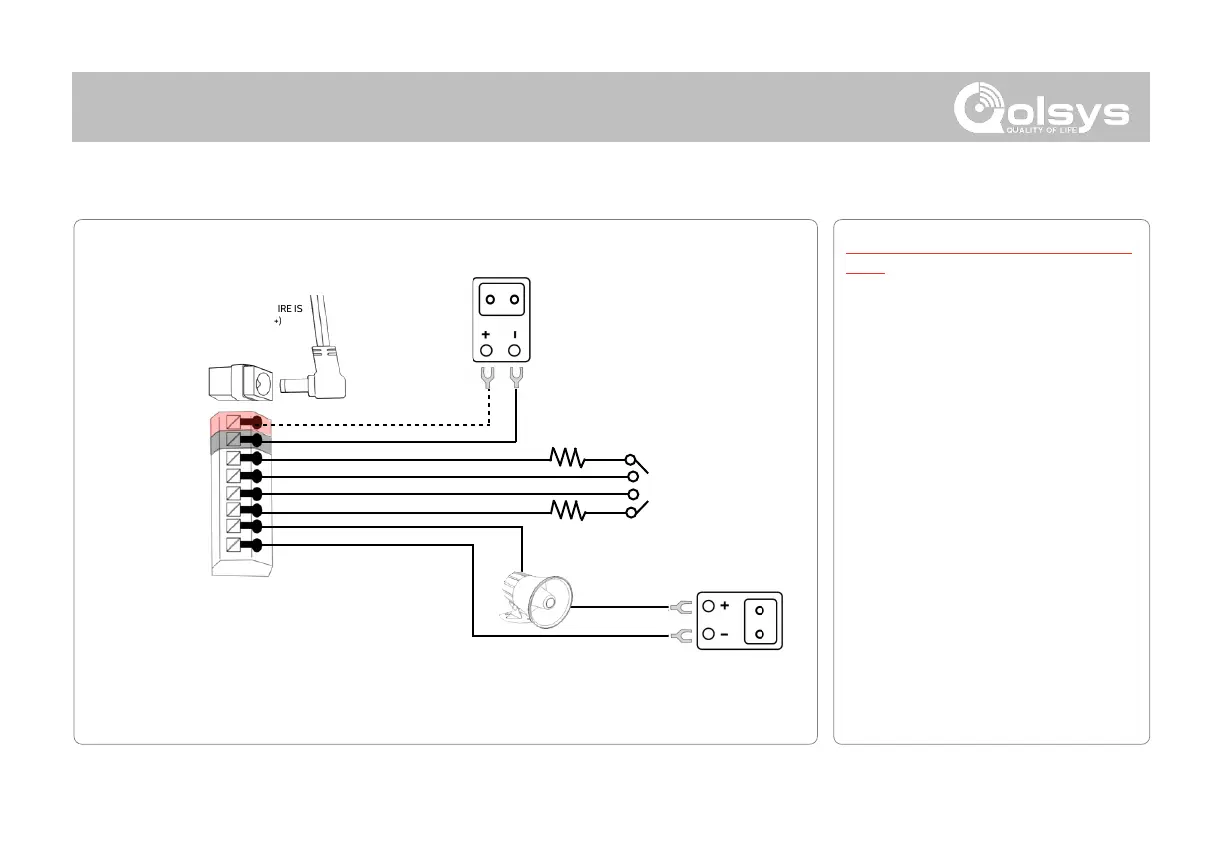

WIRING DIAGRAM
QOLSYS CONFIDENTIAL AND PROPRIETARY
PAGE OF 11 173
NOTES
7vDC* IN
GND
SENSOR 1***
GND
SENSOR 2***
GND
EXT SIREN***
GND
**WARNING! Use 7vDC**
Power Supply ONLY
4.7k EOL
CLOSED LOOP
CIRCUIT
-
+
EXT SIREN:
Maximum Voltage: 12vDC
Maximum Current: 300mA
7vDC** IN
BARREL JACK
BARREL JACK FOR
USE WITH SUPPLIED
BARREL CONNECTOR
CABLE ONLY.
STRIPED WIRE IS
POSITIVE (+)
4.7k EOL
Input rating: 100-240vAC, 50/60Hz, 0.68A
Output rating: 7.0vDC, 1.0A
***NOTE: SENSOR 1, 2 & EXT SIREN are
not permissible in EN Grade 2
installations.
+++NOTE: External siren for US or
Canada only.
IMPORTANT IF USING CUSTOM LENGTH
WIRE:
- 7vDC Transformer: Use 18AWG (0.75
mm
2
) wire no longer than 100ft (~30m) to
ensure sufficient power is received at the
panel.
* The minimum permissible wire size shall
not be smaller than 0.33mm
2
or larger
than 0.75mm
2
** A 7vDC power supply output shall not
exceed 15VA (15W) under any condition.
