QOLSYS Panel 2+ - EXTERIOR BACK VIEW

PANEL OVERVIEW

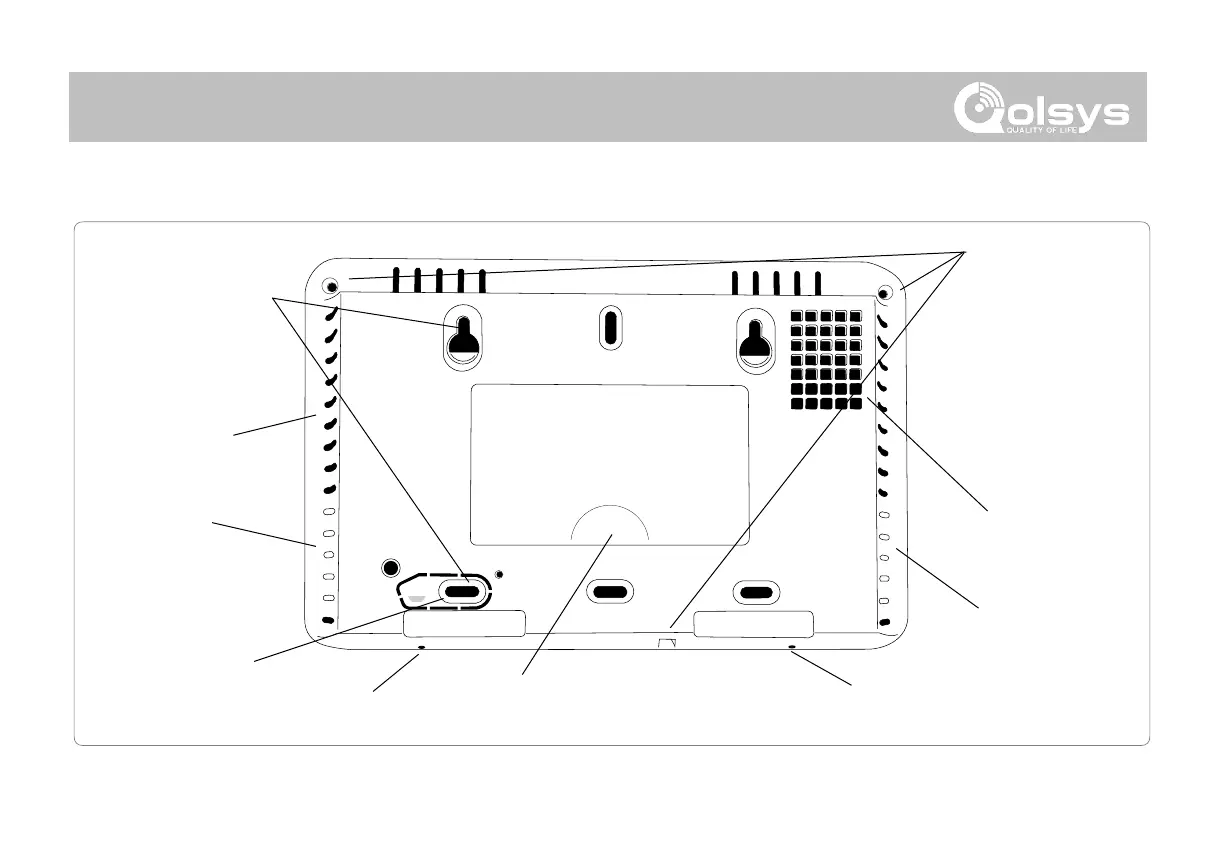

EXTERIOR BACK
Mounting holes
single, double or
triple “gang” box
compatible
Micro SD
Card Slot
Speaker
Rear Access Cover
Siren
QOLSYS CONFIDENTIAL AND PROPRIETARY
PAGE OF 6 173
Speaker
Microphone
Microphone
For EN Grade 2
applications this
screw shall be used
for tamper
protection against
mounting removal
For EN Grade 2
applications these
locking screws shall be
used.
Note: A low profile right angle
screwdriver is required to insert
the top 2 screws once wall
mounted. Steelman Pro 78944
PH0 recommended.
