SYSTEM TESTS

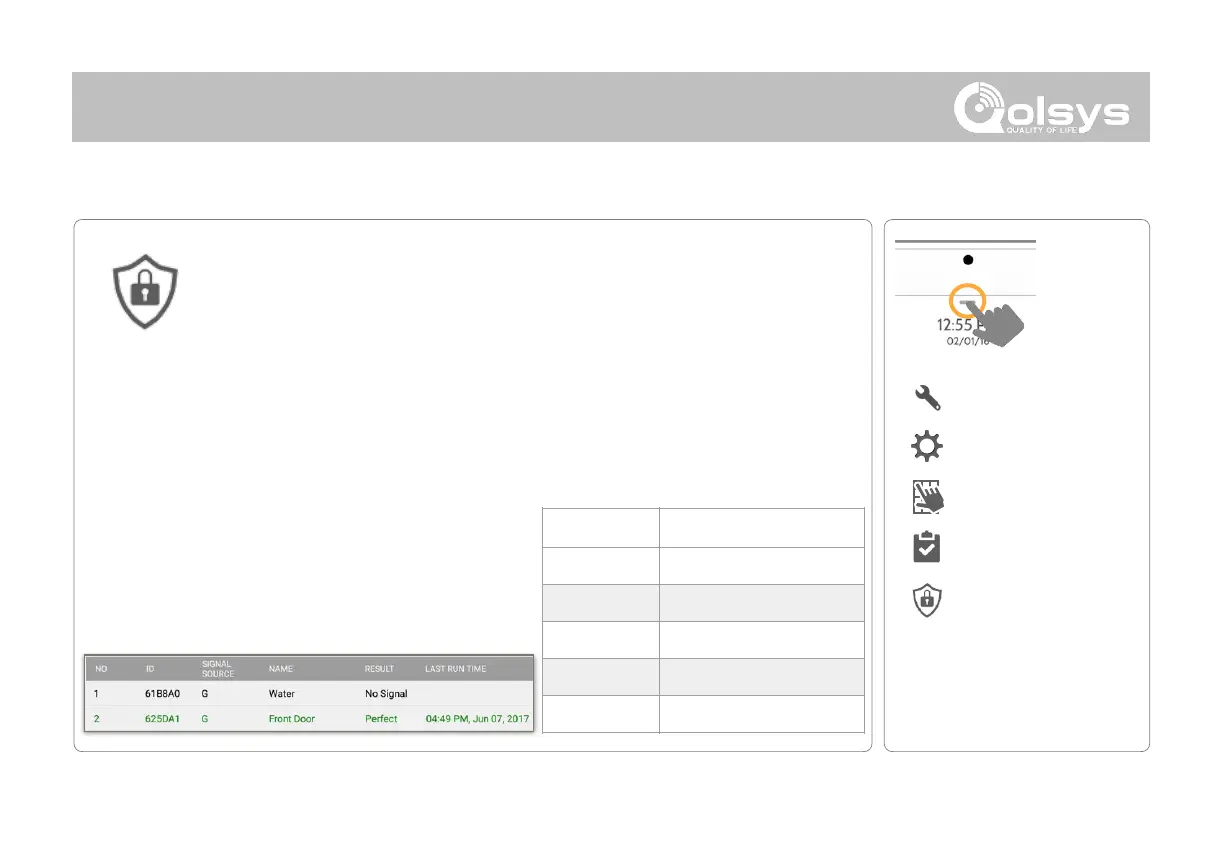

Sensor Test
The panel can test its connection and communication to individual security
sensors. Before running this test there must be at least one security sensor
paired with the system. This version of the sensor test is for panels with the
older RF PIC Version 10.2.15-G0.
Sensors connected to the panel will appear on the screen. The panel will detect open and
close reports. Please allow 10 secs between tests if tripping the same device more than
once. “Signal Source” relates to a sensor’s frequency.
QOLSYS CONFIDENTIAL AND PROPRIETARY
PAGE OF 117 173
Results
Packets Received
Perfect
8
Excellent
6-7
Good
3-5
Minimum
1-2
No Signal
No RF packets received
The panel will audibly report and display test
results from “No Signal” to “Perfect”, including
how many packets were received.
SENSOR TEST (For North American Market Only - Not functional for CE/EN Grade 2)
FIND IT
NOTE: For UL/cUL , perform a
placement test first for all wireless
initiating devices. The acceptable result
shall be “Excellent”.
SYSTEM TESTS
Swipe down
for access
SETTINGS
ADVANCED SETTINGS
ENTER CODE (1111, 2222)
SENSOR TEST
( 8 )
