quadient DS-1200 G4i

14
DS-1200 G4i Operator Manual Issue 4 - Nov 2020

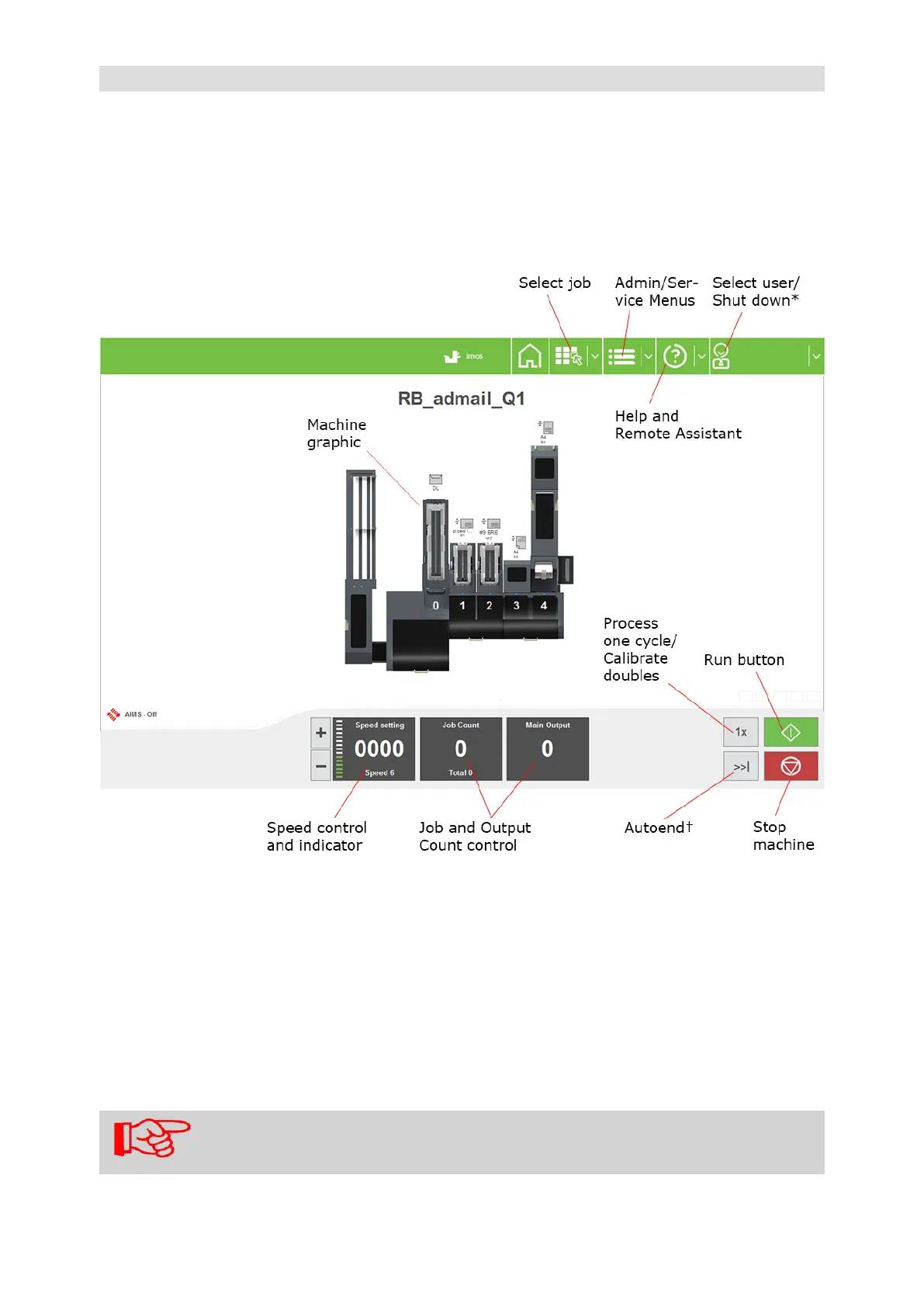

4.3 The Run Screen
4.3.1 The Run Screen displayed
This is the screen you will see after an existing job has been selected in the Job
Menu, or after pressing the Run screen button.
See also section 4.2 The Job Screen.
* Shuts down IMOS and PC.
†Press Run to resume.
NOTE:
Shutdown puts the machine into Standby. To switch o the machine,
turn the Isolator switch located at the rear of the Insert Head to the OFF
position.
Press F4 to display the counts at all available exits.
(Only available with appropriate access rights).
