DS-1200 G4i Operator Manual Issue 4 - Nov 2020
10.1.3 Cleaning sensors
The optical sensors on the machine consists of two halves, spaced slightly apart.
They should be cleaned using only an invertible type non-ammable airduster,
ensuring that both halves are thoroughly cleaned.

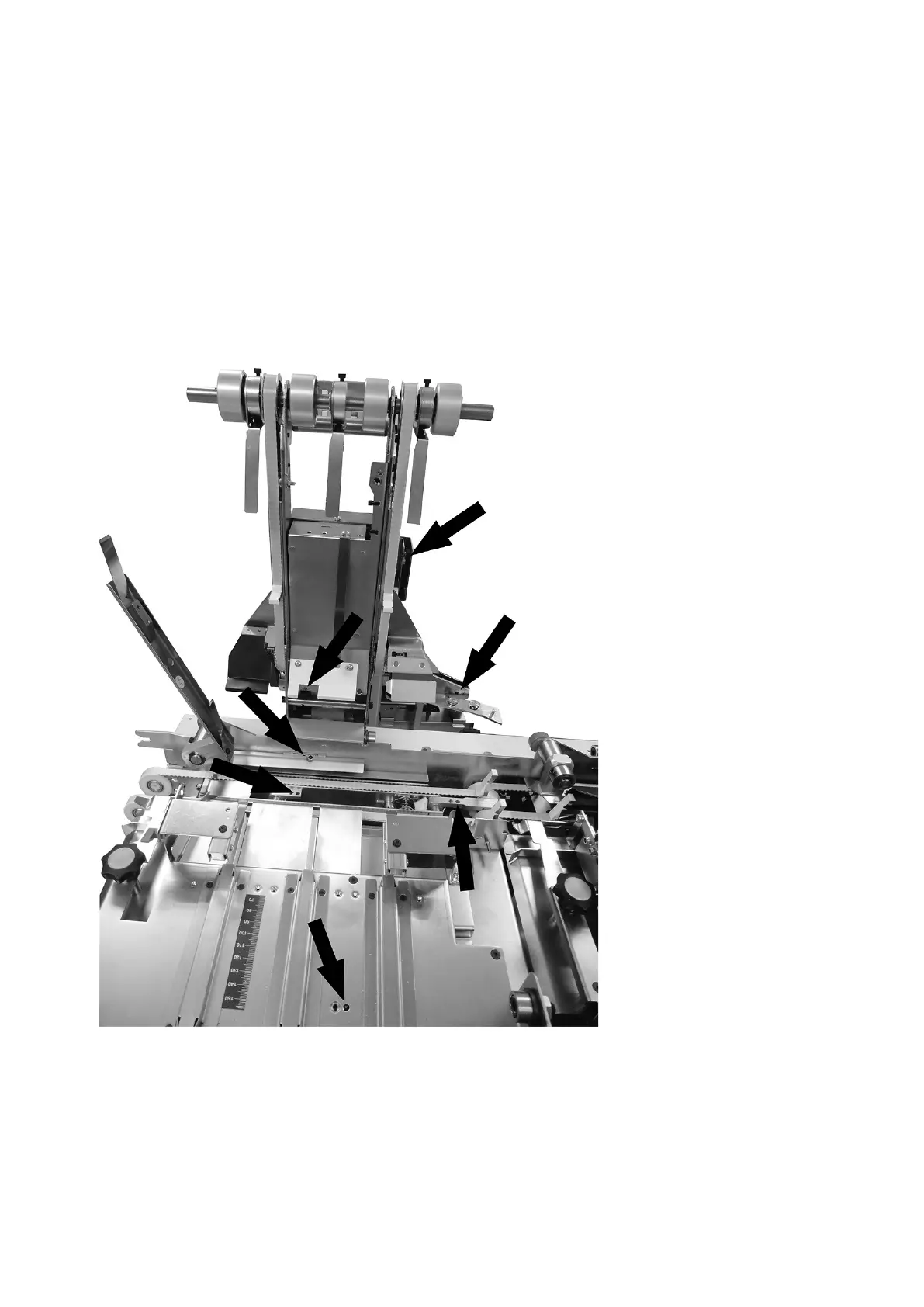

Sensor locations are indicated in the Track shuttle gure below.
Track shuttle
(Viewed from behind the machine).
Open the top covers of the track stations. Raise the shuttle and the overguide to
access the sensors.
