SECTION 7 – UNIT CONTROLS
035-02550-xxx I/O Board

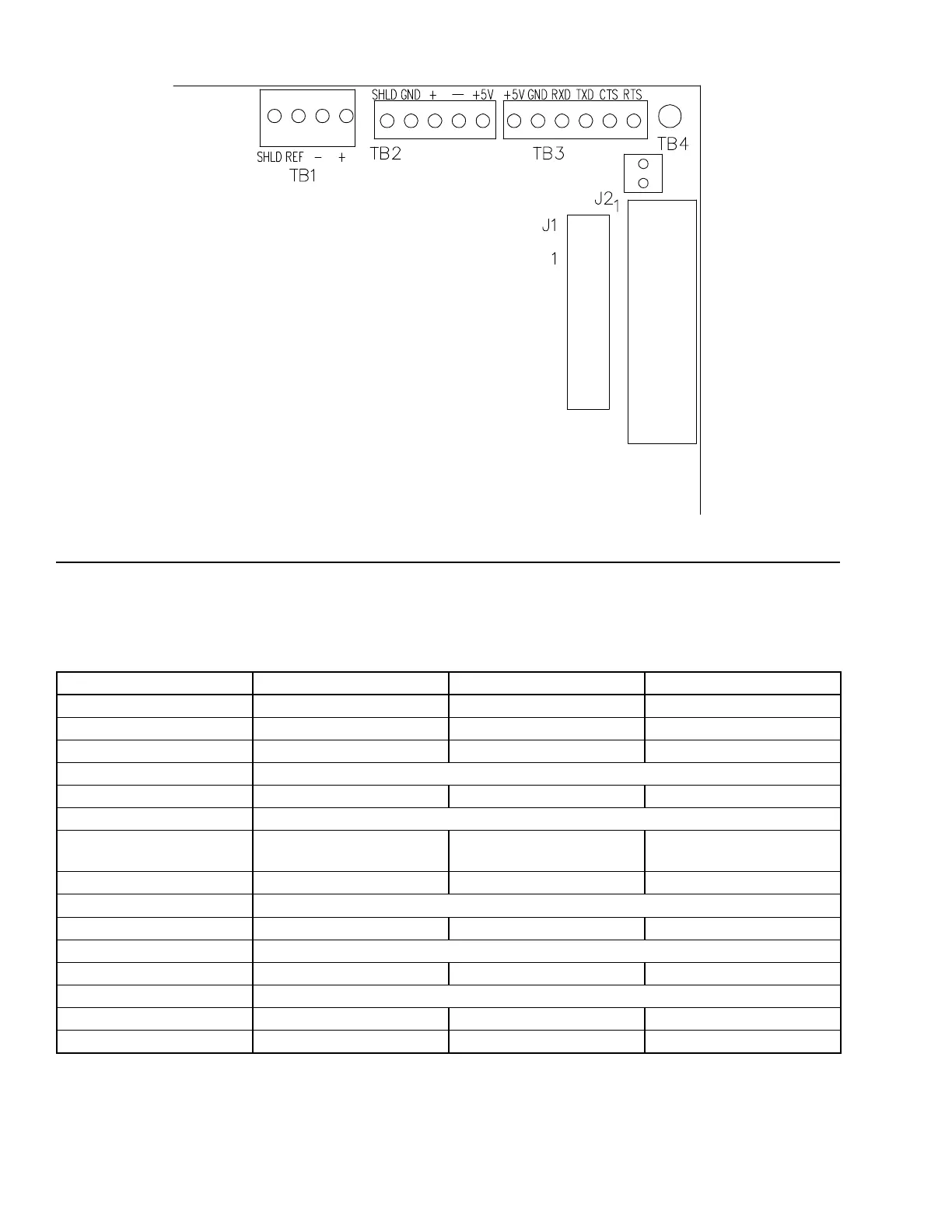

FIGURE 29 - MICRO PANEL CONNECTIONS
LD14318
The table below shows the minimum, maximum, and
default values.
TABLE 16 - MINIMUM, MAXIMUM AND DEFAULT VALUES
DESCRIPTION MINIMUM MAXIMUM DEFAULT
DE MODIFIER ADDRESS -1 41943 -1
DE MODIFIER OFFSET -1 99 -1
P1 BAUD RATE 1200 76800 4800
1200, 4800, 9600, 19200, 38400, 76800, AUTO SELECTABLE
P2 BAUD RATE 1200 57600 1200
1200, 4800, 9600, 19200, 38400, 57600 SELECTABLE
P1, P2 MANUAL Mac AD-
DRESS
-1 127 -1
P1, P2 PARITY NONE IGNORE NONE
NONE, EVEN, ODD, IGNORE SELECTABLE
P1 PROTOCOL BACNET API BACNET
BACNET, API SELECTABLE
P2 PROTOCOL TERMINAL MODBUS CLIENT API
TERMINAL, MODBUS IO, MODBUS SERVER, API, MODBUS CLIENT SELECTABLE
P1, P2 STOP BITS 1 2 1
RESET REAL TIME ERROR NO YES NO
