SECTION 5 – TECHNICAL DATA
ISOLATOR INFORMATION

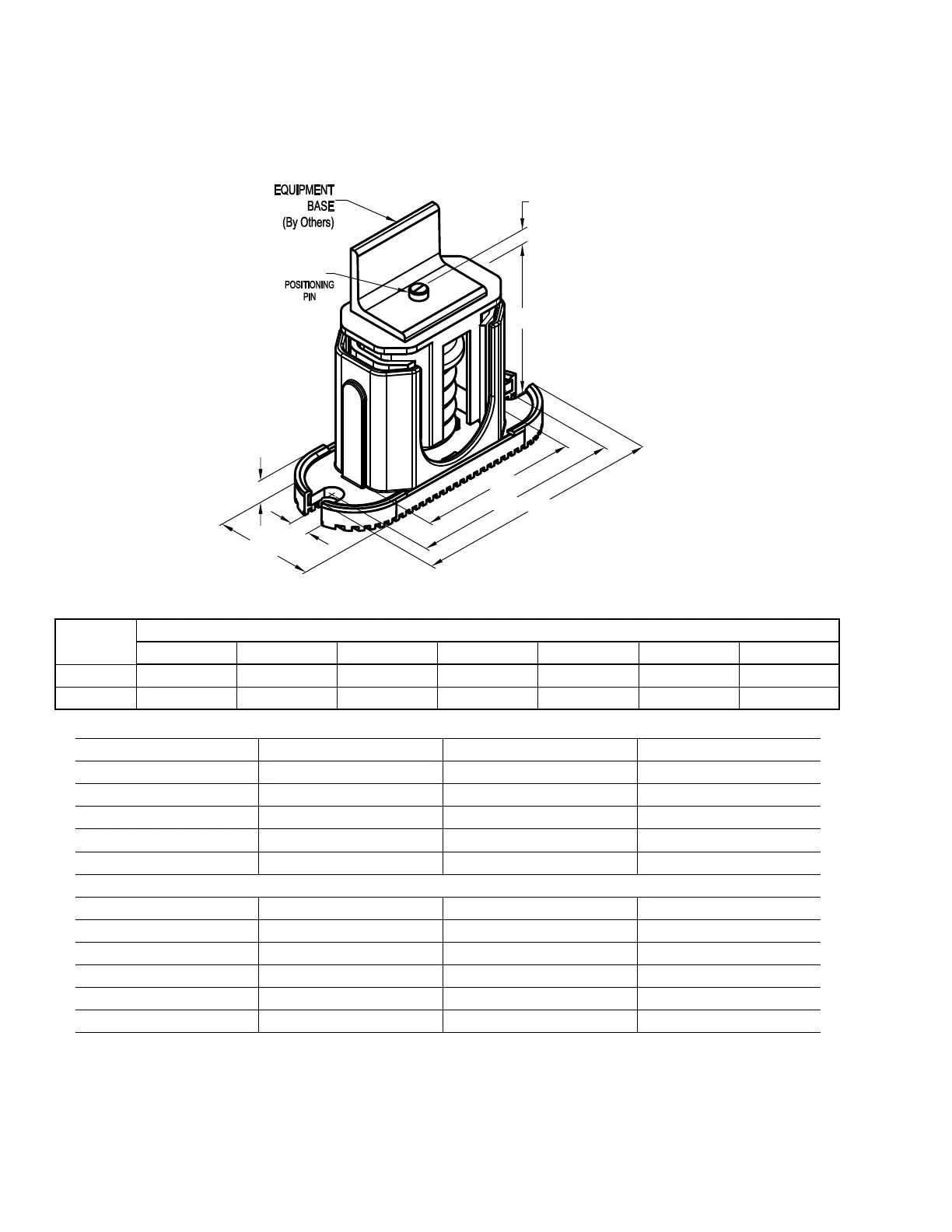

One Inch Deflection Spring Isolator Cross-reference
LD13759A
W"
D"
L"
B"
C"
H"
T"
Ø1/2"
5/8"
MOUNT
TYPE
DIMENSION DATA (IN.)
W D L B C T H
TYPE A 3 5/8 7-3/4 6-1/2 4-3/4 1/2 5-5/8
TYPE B 3 5/8 10-1/2 9-1/4 7-3/4 9/16 6
MODEL NUMBER RATED CAPACITY (LB) DEFLECTION RATED (IN.) COLOR CODE
029-25334-002 (433668) 675 1.320 DK. PURPLE
029-25334-003 (433669) 900 1.020 DK. GREEN
029-25334-004 (433670) 1200 0.900 GRAY
029-25334-005 (433871) 1360 0.770 WHITE
029-25334-006 (433872) 1785 0.880 GRAY/RED
MODEL NUMBER RATED CAPACITY (LB) DEFLECTION RATED (IN.) COLOR CODE
029-25334-008 (433997) 1350 1.320 DK. PURPLE
029-25334-009 (433998) 1800 1.020 DK. GREEN
029-25334-010 (433999) 2400 0.900 GRAY
029-25334-012 (434000) 2720 0.770 WHITE
029-25334-013 (434001) 3570 0.880 GRAY / RED
