QUANTECH
92
FORM QTC3-NM1
ISSUE DATE 08/03/2022
SECTION 5 – TECHNICAL DATA
CLEARANCES
See Figure 24 below for minimum clearances for all
QTC3 units.
NOTES:
1. No obstructions allowed above the unit.
2. Only one adjacent wall may be higher than the unit.
3. Adjacent units should be 10 ft (3 m) apart.

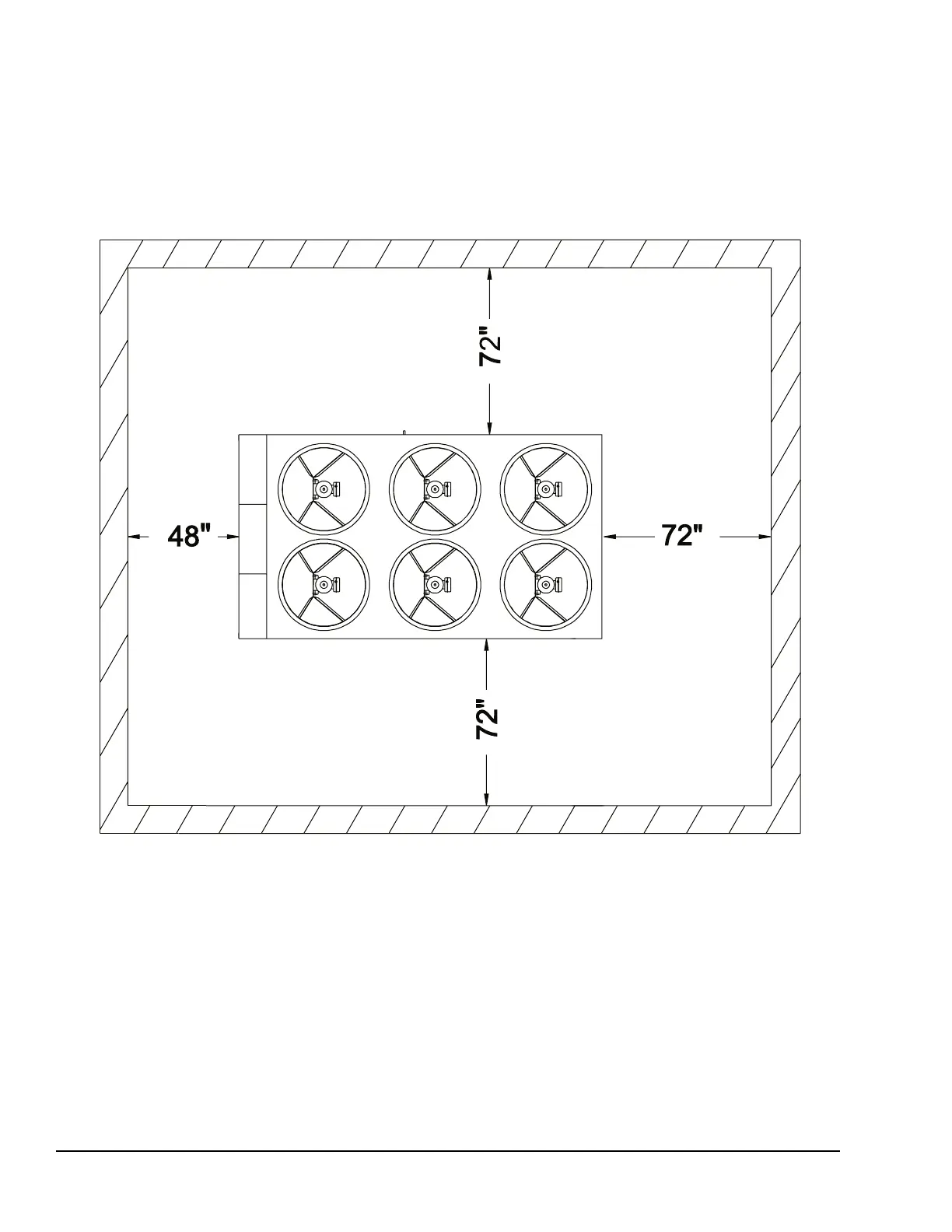

FIGURE 24 - UNIT CLEARANCES – ALL MODELS
(1.3 m)
(2 m)
(2 m)
(2 m)
