SECTION 5 – TECHNICAL DATA
HEAT EXCHANGER FLOW, GPM
ETHYLENE GLYCOL PROPYLENE GLYCOL
%
WEIGHT
TONS
COMPR
KW
GPM F/
TON
PRESS
DROP
FREEZE
PT
%
WEIGHT
TONS
COMPR
KW
GPM F/
TON
PRESS
DROP
FREEZE
PT
10.0 1.0 1.0 24.3 1.0 26.2 10.0 1.0 1.0 24.0 1.0 26.0
20.0 1.0 1.0 25.1 1.1 17.9 20.0 1.0 1.0 24.3 1.1 19.0
30.0 1.0 1.0 25.9 1.2 6.7 30.0 1.0 1.0 24.9 1.3 9.0
40.0 1.0 1.0 26.9 1.4 -8.1 40.0 1.0 1.0 25.6 1.4 -6.0
50.0 1.0 1.0 28.0 1.6 -28.9 50.0 0.9 1.0 26.6 1.7 -28.0
NOTE: Water Pressure Drop Curves may extend past the minimum and maximum water ow ranges.
TABLE 5 - ETHYLENE AND PROPYLENE GLYCOL CORRECTION FACTORS
EVAPORATOR QTC3 MODELS
A
055THE, 060THE, 070TSE
B 075TSE
C
085TSE, 095TSE,
090THE, 100THE, 120THE
D 080THE, 125TSE, 160TSE, 150THE
E 110TSE, 140TSE, 130THE
F 170THE
G 205THE
H 225THE
I 050THE
J 040THE

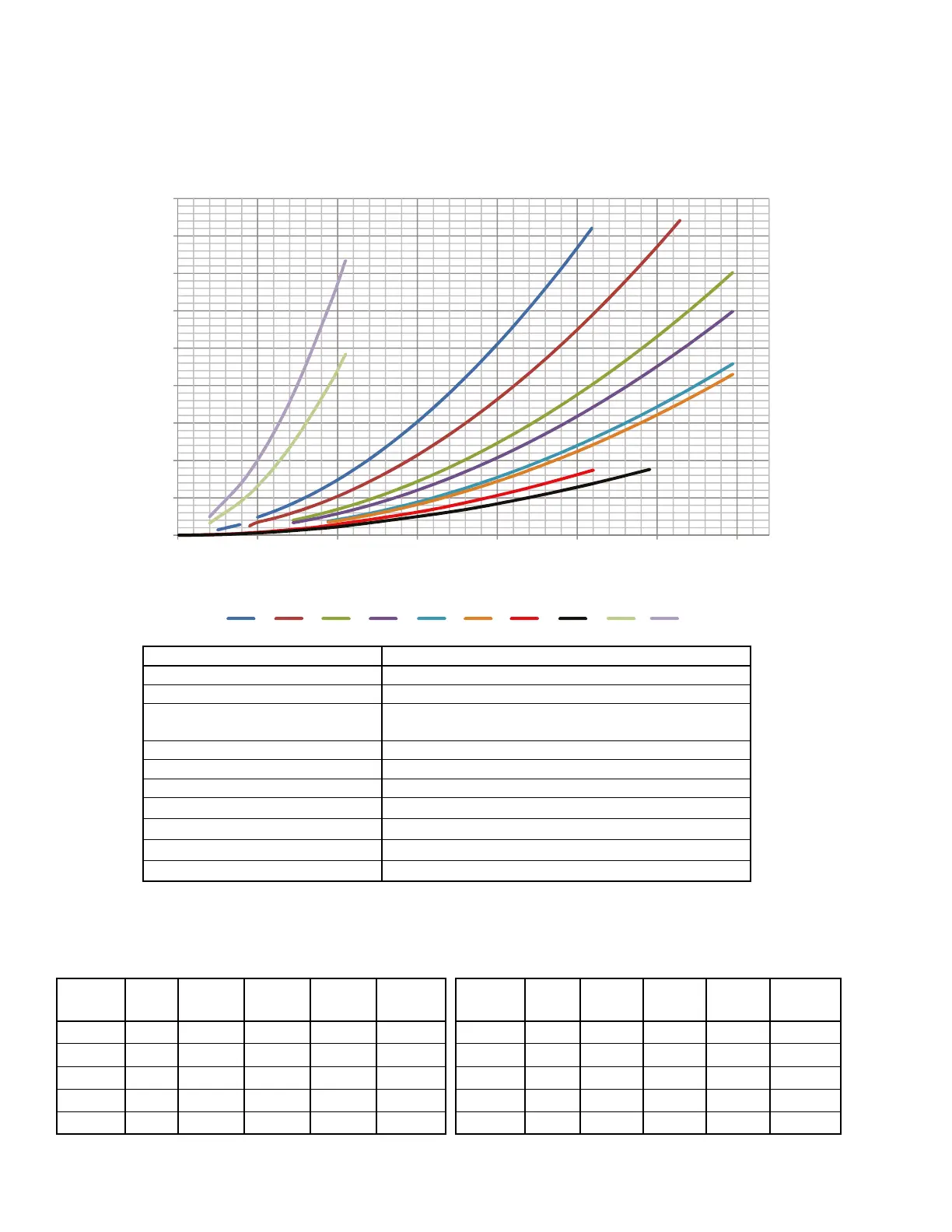

QTC3 EVAPORATOR PRESSURE DROP CURVE
YLAA Evaporator Pressure Dop (IP Units)
Water Pressure Drop (psi)
Water Flow Rate (gpm)
ABCD EF G HIJ
10 110 210 310 410 510 610 710
5
10
15
25
20
30
35
40
45
LD28292a
